Crowd Control Pedestrian Steel BarricadeTemporary Fencing Barrier

Crowd control barriers (also referred to as crowd control barricades, pedestrian barricades or bike rack barricades), are commonly used at many public events. They are frequently visible at sporting events, parades, political rallies, demonstrations, and outdoor festivals. Event organizers, venue managers, and security personnel use barricades as part of their crowd management planning.
They originated in France approximately 50 years ago and are now produced around the world.

These Barricades are built from heavy gauge steel and are hot-dipped galvanized inside and out for long-term weather resistance. Frames are made from 1.5" OD 16 gauge steel tubing, while uprights are made from 1/2" OD 16 gauge steel tubing. Uprights are fully inserted into the frame before welding, providing extraordinary strength. Choose from two base systems: a bridge base for uneven surfaces such as grass and a flat base for smooth surfaces such as tarmac and where pedestrian traffic demands the minimum trip hazard. The barricades interlock using the industry standard hook and half-loop fastening system.

Specifications is below:

Various shapes and types for your option, we can also customize according to your drawing.

Popular Type : round tube frame with picket tubes or Bars
Height: 1.1m
Width: 2.1m, 2.5m
Feet: movable flat feet , fixed cross feet, bridge feet etc.

1) Simple structure in linear type ,easy in installation and maintenance.

2) Renewable resource, could be used for several years.

3) All welding slag are cleared to insure fence smooth surface.

4) Whole barrier panel (welded mesh panel and frame tube) will be hot dipped galvanized or powder coated after welding.

5) Customized panel shape or specification is also available

Application :

Crowd control barriers act as a physical and psychological barrier, used to demarcate "no access" zones, and to designate space for lines. They are also used by riot police to control large gatherings.

Crowd control barricades are most commonly made of steel. Barriers are most effective when they interlock, being attached to each other in a line via hooks at the side of each barricade. When barricades are interlocked, security personnel can create impenetrable lines, because such lines of barriers cannot easily be toppled over.

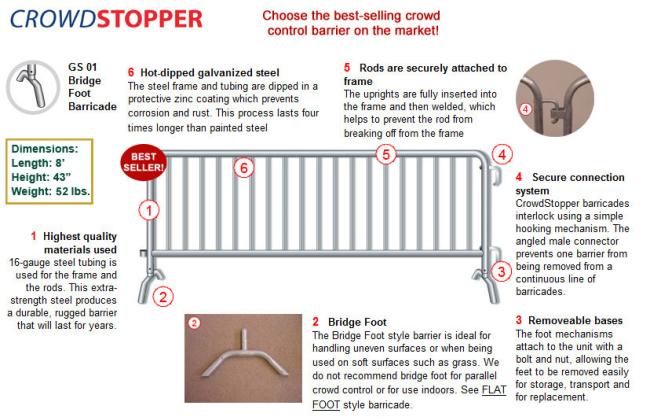

Drawing :
