AISI 304 Plain Weave Stainless Steel Crimped Wire Mesh Screen 3 -- 500 µm Aperture
AISI 304 Plain weave stainless steel crimped wire mesh screen
Crimped wire mesh can be also named iron crimped wire mesh , stainless steel crimped wire mesh, black iron crimped mesh according to different materials.

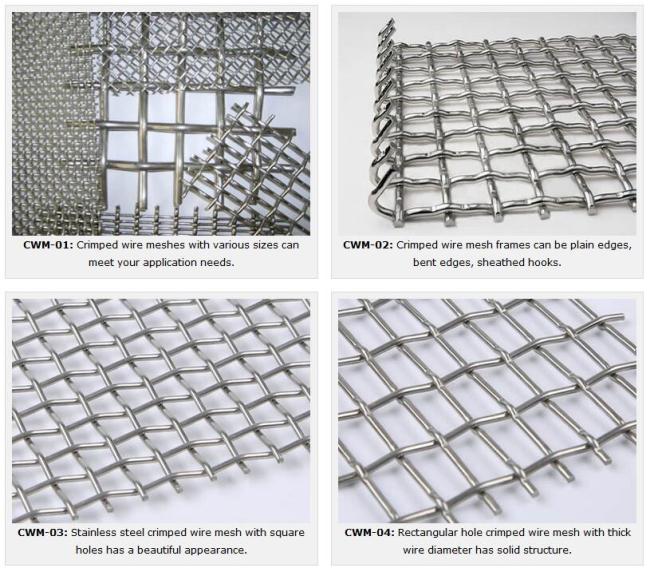

Crimped Wire Mesh is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings.
Material: Iron wire, black wire, stainless steel wire, copper wire and other non-ferrous metal.

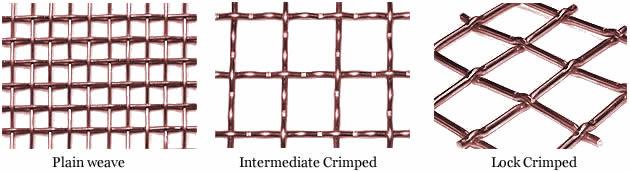

Weaving: Pre-crimping before Weaving. In two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending.
Features: Structure firm and durable. solid structure, good loading capacity and beautiful appearance.
Uses: Used for mining, coal plants, construction, petrochemical industry, construction machinery, etc.
Application:
Crimped wire mesh is widely used for vibrating screen, quarry screen, filter, infill panel, barbecue grill, and shows its ability in chemical, petroleum, mining industries, livestock breeding, etc.
Specification :
Crimped Wire Mesh common specifications:
Diameter 1.0mm x mesh opening 8mm or 10mm
Diameter 1.5mm x mesh opening 12.5mm, 15mm or 20mm
Diameter 3mm x mesh opening 15mm, 20mm, 30mm
Length and width specifications: 1mX25m 1mX30m 1.2mX25m 1.2mX30m
| Wire Gauge SWG |
Wire Diameter mm |
Mesh/Inch | Aperture mm |
Weight kg/m2 |
|
14
|
2.0
|
21
|
1
|
4.2
|
|
8
|
4.05
|
18
|
1
|
15
|
|
25
|
0.50
|
20
|
0.61
|
2.6
|
|
23
|
0.61
|
18
|
0.8
|
3.4
|
|
24
|
0.55
|
16
|
0.1
|
2.5
|
|
24
|
0.55
|
14
|
0.12
|
4
|
|
22
|
0.71
|
12
|
0.14
|
2.94
|
|
19
|
1
|
2.3
|
0.18
|
1.45
|
|
6
|
4.8
|
1.2
|
2
|
20
|
|
6
|
4.8
|
1
|
2
|
20
|
|
6
|
4.8
|
0.7
|
3
|
14
|
|
14
|
2.0
|
5.08
|
0.3
|
12
|
|
14
|
2.0
|
2.1
|
1
|
2.5
|
|
14
|
2.0
|
3.6
|
1.5
|
1.9
|
