100 Micron Stainless Steel Filter Wire Mesh Anti Corrosion For Water Filter
100 micron stainless steel filter wire mesh for water filter
Our stainless steel wire mesh have excellent resistance against acid , alkali, heat and corrosion, extensive
uses in porcessing of oils, chemicals, food , pharmaceuticals, also sorting and screening of solid , liquid and gas in mine, metallurgy, air space, machine making. Etc.
1. Material: AISI 304/316/304L/316L, etc.
2. Wire Dia: 0.51-0.02 mm
3. Mesh:20- 635 mesh
5. Weave pattern: plain weave, twill weave,etc
| Stainless Steel Mesh Specification (Plain Weave) | ||||
| Mesh | Wire Dia | Aperture | ||
| Inch | mm | Inch | mm | |
| 20X20 | 0.02 | 0.51 | 0.03 | 0.76 |
| 20X20 | 0.016 | 0.41 | 0.034 | 0.86 |
| 24X24 | 0.014 | 0.36 | 0.0277 | 0.70 |
| 30X30 | 0.013 | 0.33 | 0.0203 | 0.52 |
| 30X30 | 0.012 | 0.31 | 0.0213 | 0.54 |
| 30X30 | 0.009 | 0.23 | 0.0243 | 0.62 |
| 40X40 | 0.01 | 0.25 | 0.015 | 0.38 |
| 50X50 | 0.009 | 0.23 | 0.011 | 0.28 |
| 50X50 | 0.008 | 0.20 | 0.012 | 0.31 |
| 60X60 | 0.0075 | 0.19 | 0.0092 | 0.23 |
| 60X60 | 0.007 | 0.18 | 0.0097 | 0.25 |
| 80X80 | 0.0065 | 0.17 | 0.006 | 0.15 |
| 80X80 | 0.0055 | 0.14 | 0.007 | 0.18 |
| 100X100 | 0.0045 | 0.11 | 0.0055 | 0.14 |
| 100X100 | 0.004 | 0.10 | 0.006 | 0.15 |
| 100X100 | 0.0035 | 0.09 | 0.0065 | 0.17 |
| 120X120 | 0.0037 | 0.09 | 0.0064 | 0.12 |
| 150X150 | 0.0026 | 0.07 | 0.0041 | 0.10 |
| 160X160 | 0.0025 | 0.06 | 0.0038 | 0.10 |
| 180X180 | 0.0023 | 0.06 | 0.0033 | 0.08 |
| 200X200 | 0.0021 | 0.05 | 0.0029 | 0.07 |
| 250X250 | 0.0016 | 0.04 | 0.0024 | 0.06 |
| 300X300 (SS316) | 0.0051 | 0.04 | 0.0018 | 0.05 |
| 325X325 (SS316) | 0.0014 | 0.04 | 0.0017 | 0.04 |
| 400X400 (SS316) | 0.001 | 0.03 | 0.0015 | 0.37 |
| 500X500 (SS316) | 0.001 | 0.03 | 0.001 | 0.03 |
| 635X635 (SS316) | 0.0008 | 0.02 | 0.0008 | 0.02 |

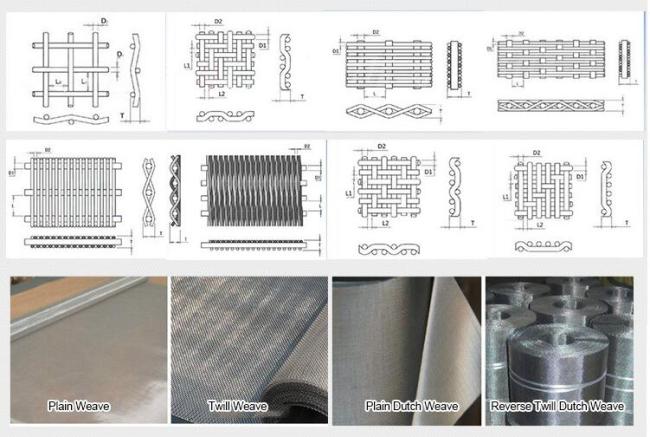

Weaving pattern:
Making process :
Quality control :
