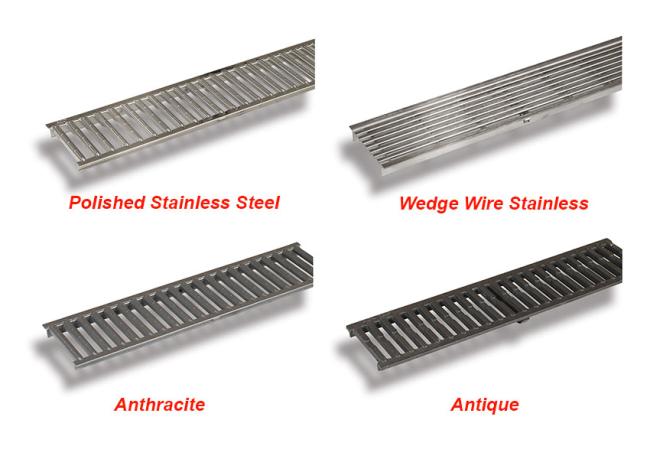

304 Stainless Steel Wedge Wire Screen Plate Panel Customized For Heel Guard Grating
304 Stainless steel wedge wire screen plate panel for heel guard grating
Our stainless steel wedge wire heel guard gratings are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a stainless steel flat panel screen on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your needs.
Application :
Use in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.
Features :
Accurate slot gap, high efficiency performance, stable structure, anti-high temperature, anti-corrosive, good mechanical properties, long-lasting and durable, safe and reliable, various field can be applied.
Advantages :
A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.
2.Specifition:
(1) material:stainless steel 304,316,etc
(2) slot size:0.02-5mm or customer's requirement
(3) support bars pitch:1.5-3cm or customer's requirement
(4) wedge wire size: 1.5x2.2mm,1.5x2.5mm,2.3x3.6mm,1.8x4.3mm,3.0x4.7mm,etc
(5) support bars size: 2.3x2.7mm,2.3x3.6mm,3.0x4.7mm,3.7x5.6mm,3.3x6.3mm,etc
|
Wedge wire screen panel
|
|
|
Material:
|
stainless steel (304,316 etc.)
|
|
Wedge Wire or
Profile Wire (mm):
|
Width : 1.50 1.80 2.30 3.00 3.30 3.70
|
|
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
|
|
|
Support Rod or
Support Wire (mm):
|
Width : 2.30 3.00 3.30 3.70
|
|
Height : 2.70 3.60 4.70 5.60 6.30
|
|
|
Round : 2.50mm -- 6.0mm
|
|
| Slot Opening Size (mm) | 0.02mm - 5 mm |
|
Length:
|
lengths up to 6 meters or customized as your request
|
|
Width:
|
25mm - 1200 mm or customized as your request
|
|
Note: Other specifications can be customized according to your requirement
|
|
