Metal SS Johnson Wedge Wire Screens Water Filter Intake Nozzle Easy To Clean
Stainless steel johnson Wedge Wire water filter intake nozzle
Wedge wire nozzle is manufactured from stainless steel material or other alloy material. The wedge wire nozzle features non-clogging, high filtering efficiency and economical. It has a wide range of applications in water treatment applications. The different wedge wire sizes and slot sizes can suit different class filtration. Continuous slot design make it high efficiency and long service life.
Type of wedge wire nozzle
According to different applications, the wedge wire nozzle can be divided into two main types, you can choose them according to your requirements.
Specifications of wedge wire nozzle
- Material: stainless steel.
- Slot size: 0.18 mm - 0.5 mm.
Specification:

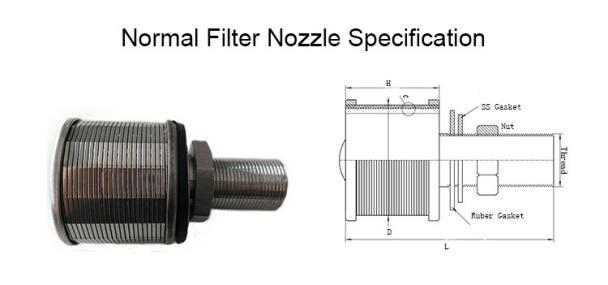

| Item | D (mm) | H (mm) | L (mm) | Slot size (mm) | Flow area (mm2) |
|---|---|---|---|---|---|
| WWNS-01 | 45 | 30 | 180 | 0.18-0.5 | 380-493 |
| WWNS-02 | 45 | 40 | 190 | 0.18-0.5 | 551-690 |
| WWNS-03 | 53 | 40 | 190 | 0.18-0.5 | 453-597 |
| WWNS-04 | 53 | 50 | 200 | 0.18-0.5 | 680-710 |
| WWNS-05 | 53 | 40 | 235 | 0.18-0.5 | 800-920 |
| WWNS-06 | 57 | 40 | 190 | 0.18-0.5 | 560-670 |
| WWNS-07 | 57 | 50 | 200 | 0.18-0.5 | 780-905 |
| Item | D (mm) | L (mm) | H1 (mm) | H2 (mm) | Slot size (mm) | Flow area (mm2) |
|---|---|---|---|---|---|---|
| WWND-01 | 45 | 110-170 | 34 | 34 | 0.18-0.5 | 390-493 |
| WWND-02 | 45 | 110-170 | 44 | 44 | 0.18-0.5 | 551-690 |
| WWND-03 | 53 | 120-180 | 34 | 34 | 0.18-0.5 | 453-597 |
| WWND-04 | 53 | 120-180 | 44 | 44 | 0.18-0.5 | 680-710 |
| WWND-05 | 57 | 120-180 | 50 | 50 | 0.18-0.5 | 800-1000 |
| WWND-06 | 60 | 120-180 | 50 | 50 | 0.18-0.5 | 950-1188 |
Features of wedge wire nozzle
- Non-clogging.
- High open area.
- High filtering performance.
- Corrosion and rust resistance.
- High temperature resistance.
- Economical.
- Easy to install and replacement.
Applications of wedge wire nozzle
- Wedge wire nozzles are effective in a wide range of water treatment and other industrial applications for filtering and screening. Such as, under drain media retention elements, flow distributors in demineralizers, water softeners in pressure and gravity sand filters.
- Except for filtering and screening applications, wedge wire nozzles have other applications. Just install several nozzles uniformly to be used as collectors at the bottom of the vessels.
