Perforated Surgical Instrument Sterilization Containers Basket / Trays Optional Trocar Storage

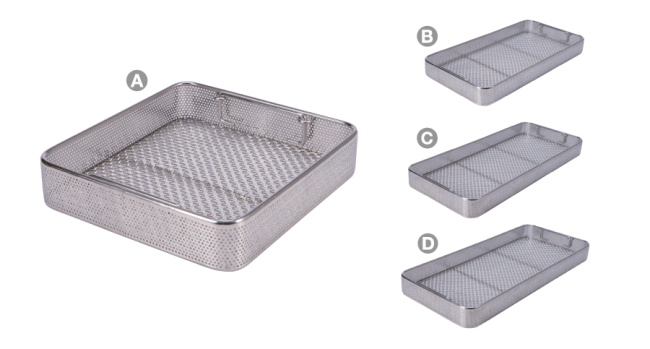

Stainless steel Perforated Surgical Sterilization Instrument Basket and Trays
Perforated Stainless Steel trays are the ‘next generation’ in stainless steel baskets. Using one piece of perforated stainless steel, the wrap around design maximizes water and steam penetration, whilst ensuring that instruments aren’t able to penetrate through the side of the tray. Machine welded and electro polished, these trays are high quality and available with or without lids.
Features:
- Universal silicon storage rack for instruments 2-12.5 mm in diameter
- Provides storage for up to 18 instruments
- Variable instrument storage
- Fold down handles for easier instrument removal
- Optional trocar storage
Material: Stainless steel 304
Wire Diameter: 0.5mm-2mm
Aperture: 3mm-6mm
Surface treatment l : electrolyzation and polishing
Specification: can customized any size , following is just some sizes for referance
| Woven & welded wire mesh tray (DIN) | |||||||
| Code | Length | Width | Height | Code | Length | Width | Height |
| WITD-1 | 120mm | 250mm | 50mm | WITD-8 | 480mm | 480mm | 60mm |
| WITD-2 | 240mm | 250mm | 50mm | WITD-9 | 540mm | 252mm | 60mm |
| WITD-3 | 480mm | 250mm | 50mm | WITD-10 | 240mm | 250mm | 70mm |
| WITD-4 | 480mm | 480mm | 50mm | WITD-11 | 480mm | 250mm | 70mm |
| WITD-5 | 510mm | 254mm | 50mm | WITD-12 | 520mm | 330mm | 75mm |
| WITD-6 | 240mm | 250mm | 60mm | WITD-13 | 480mm | 250mm | 100mm |
| WITD-7 | 480mm | 250mm | 60mm | ||||
| Perforated side instrument tray (DIN) | |||||||
| Code | Length | Width | Height | Code | Length | Width | Height |
| PIT-1 | 226mm | 226mm | 60mm | PIT-14 | 498mm | 230mm | 75mm |
| PIT-2 | 240mm | 250mm | 60mm | PIT-15 | 540mm | 250mm | 75mm |
| PIT-3 | 370mm | 230mm | 60mm | PIT-16 | 226mm | 226mm | 100mm |
| PIT-4 | 410mm | 250mm | 60mm | PIT-17 | 240mm | 250mm | 100mm |
| PIT-5 | 480mm | 250mm | 60mm | PIT-18 | 370mm | 230mm | 100mm |
| PIT-6 | 498mm | 230mm | 60mm | PIT-19 | 410mm | 250mm | 100mm |
| PIT-7 | 510mm | 250mm | 60mm | PIT-20 | 480mm | 250mm | 100mm |
| PIT-8 | 540mm | 250mm | 60mm | PIT-21 | 498mm | 230mm | 100mm |
| PIT-9 | 226mm | 226mm | 75mm | PIT-22 | 540mm | 250mm | 100mm |
| PIT-10 | 240mm | 250mm | 75mm | PIT-23 | 226mm | 226mm | 150mm |
| PIT-11 | 370mm | 230mm | 75mm | PIT-24 | 370mm | 230mm | 150mm |
| PIT-12 | 410mm | 250mm | 75mm | PIT-25 | 498mm | 230mm | 150mm |
| PIT-13 | 480mm | 250mm | 75mm | ||||
| Welded wire mesh tray (SPRI / ISO) | |||||||
| Code | Length | Width | Height | Code | Length | Width | Height |
| WITS-1 | 120mm | 250mm | 60mm | WITS-7 | 480mm | 300mm | 60mm |
| WITS-2 | 240mm | 250mm | 60mm | WITS-8 | 250mm | 170mm | 70mm |
| WITS-3 | 320mm | 230mm | 60mm | WITS-9 | 340mm | 250mm | 70mm |
| WITS-4 | 360mm | 250mm | 60mm | WITS-10 | 450mm | 340mm | 70mm |
| WITS-5 | 460mm | 320mm | 60mm | WITS-11 | 480mm | 250mm | 100mm |
| WITS-6 | 480mm | 250mm | 60mm | ||||
Advantages :
- Durable , won't rust and out of shape .
- Easy to clean . No welded joint , safety use .
- Hole Size guarantee the cleaning and sterilization effect
Application:
- For medical, laboratory sterilizer
-
For disinfection sterilization, such as ultrasonic cleaning, storage use, especially to surgical instruments, medical apparatus and instruments in the instrument trays with cleaning and disinfection sterilization.
- Suitable for the medical treatment unit, hospital departments, such as operating room, supply room, disinfection, dental clinics and wards all cleaning disinfection sterilization treatment related departments of medical institutions
Types :
