150 Micron C 276 Hastelloy Woven Metal Mesh Screen For Pulp / Paper Industries
150 Micron C 276 hastelloy woven wire mesh screens for pulp and paper industries
Details
Hastelloy wire mesh is another nickel-based alloy wire mesh except for the monel wire mesh ,inconel wire mesh and nichrome wire mesh. The hastelloy is the alloy of nickel, molybdenum and chromium. According to the different chemical composition of material, the hastelloy can be divided into hastelloy B2,Hastelloy B3, Hastelloy C22, Hastelloy C276 .Hastelloy wire mesh is the best corrosion resistant material among all of the metal materials,especially the hastelloy C-276. It is corrosion resistant in the acid, oxidizing, salt and other corrosion environments.
Feature:
• Corrosion resistance.
• Outstanding filtering performance.
• High temperature resistance.
• Salty,alkali and acid resistance.
• Chemical stability.
Application:
Hastelloy woven mesh widely used in chemical industry,petrochemical industry,flue gas desulfurization,plup and paper making,environment protection industry and some other harse corrosion environment.
• Drugs manufacturing.
• Cellophane preparation.
• Chlorination devices.
• Pesticide processing.
• Incineration scrubber apparatus.
| material type | Hastelloy C-276,C-22,B-2,B-3 |
| wire diameter | 0.025-2.03mm |
| weaving type | plain weave,twill weave,dutch weave,etc. |
| mesh counts | 2-200mesh |
| technique | woven wire mesh |
| mesh rolls size | 1x30m 2x30m 1.524x30m 0.914x30m etc. |
| surface | smooth |
| hole shape | square |
| feature | magnetic,acid resistance,alkali resistance,temperature resistance |
| Delivery Detail | 7-15 days after receiving the 30% deposit or as required |
Specification:
| Hastelloy wire mesh | |||||
| Mesh/Inch | Wire diameter (mm) |
Aperture (mm) |
Mesh/Inch | Wire diameter (mm) |
Aperture (mm) |
| 1 mesh | 5.00×5.00 | 20.40 | 18 mesh | 0.35×0.35 | 1.06 |
| 2 mesh | 1.80×1.80 | 10.90 | 20 mesh | 0.30×0.30 | 0.97 |
| 3 mesh | 1.60×1.60 | 6.87 | 30 mesh | 0.25×0.25 | 0.60 |
| 4 mesh | 1.20×1.20 | 5.15 | 40 mesh | 0.21×0.21 | 0.43 |
| 5 mesh | 1.00×1.00 | 4.08 | 50 mesh | 0.19×0.19 | 0.32 |
| 6 mesh | 0.80×0.80 | 3.43 | 60 mesh | 0.15×0.15 | 0.27 |
| 7 mesh | 0.70×0.70 | 2.93 | 70 mesh | 0.14×0.14 | 0.22 |
| 8 mesh | 0.65×0.65 | 2.53 | 80 mesh | 0.12×0.12 | 0.20 |
| 10 mesh | 0.60×0.60 | 1.94 | 100 mesh | 0.10×0.10 | 0.154 |
| 12 mesh | 0.50×0.50 | 1.62 | 120 mesh | 0.08×0.08 | 0.132 |
| 14 mesh | 0.45×0.45 | 1.36 | 150 mesh | 0.065×0.065 | 0.104 |
| 15 mesh | 0.40×0.40 | 1.29 | 200 mesh | 0.050×0.050 | 0.077 |
| 16 mesh | 0.40×0.40 | 1.19 | 250 mesh | 0.040×0.040 | 0.062 |

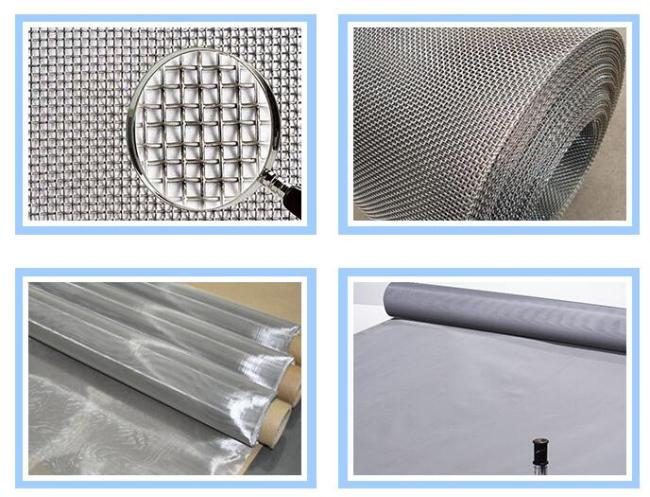

Product Photos:
Weaving style :

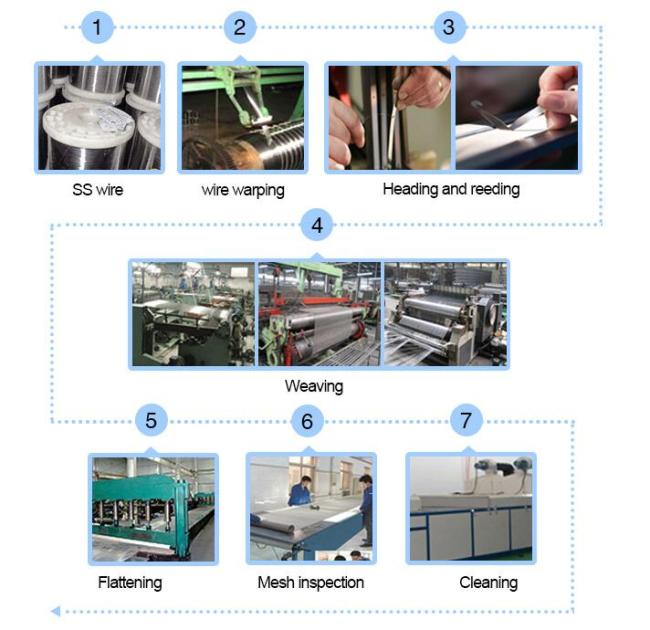

Produce process :

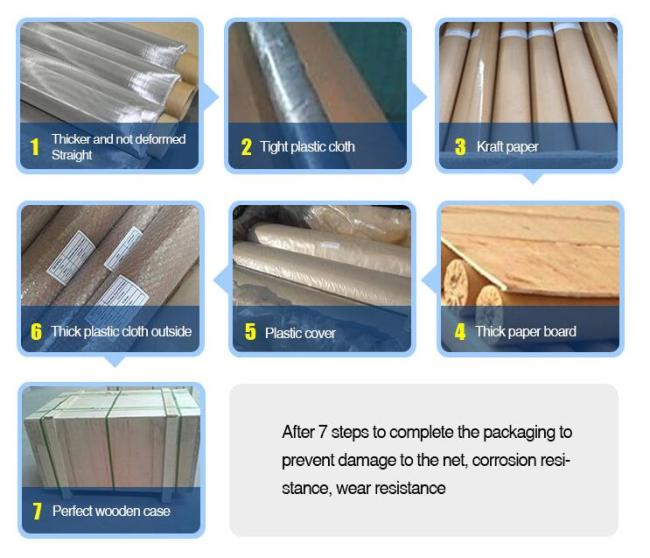

Product Packing :
Contect Details :
Anping Yoston Metal Wire Mesh Co.,Ltd.
No.56 Yuhua South Road , Anping Hebei China
Tel / Wechat / Whatsapp: +86 15833839680
Email: yoston@foxmail.com
Skype: amyhdff
Attn: Amy
