Woven Wire Mesh Filter Disc SS Materials High Strain Ability Long Lifespan
Stainless steel woven wire mesh screen filter disc for plastic exturder
1. Cloth material: Stainless steel 302, 304, 304L, 316, 316L, copper etc
2. Mesh: 1Mesh-635Mesh
3. Filter diameter: 5mm - 600mm
4. Edge material: Aluminum, stainless steel, copper etc.
5. Weaving type: plain weave, twill weave, dutch weave, reverse dutch weave etc.
6. Type: round, square, rectangle, oval etc.
7. Layer: single or multi-layers
Performance:
high strain ability, excellent filtration capacity ,precise fitting filter elements , optimum cost-performance ratio, corrosion resistance, thermal resistance.
Shapes:
round, rectangle elliptical, other shapes.
Disc filters are provided in different shapes: Single piece or multiple layered.
Marginal materials for disc filters: stainless steel, aluminum and nickel-plated copper.
Application:
used in absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks.
Our disc filters have excellent resistance against acid , alkali, heat and corrosion, extensive uses in porcessing of oils, chemicals, food , pharmaceuticals, also sorting and screening of solid , liquid and gas in mine, metallurgy, air space, machine making. Etc.
Specification table:
| Mesh Count | Wire Diameter (mm) | Aperture (mm) |
|---|---|---|
| 6 × 6 | 0.900 | 3.31 |
| 10 × 10 | 0.56 | 1.98 |
| 20 × 20 | 0.4 | 0.9 |
| 30 × 30 | 0.28 | 0.57 |
| 40 × 40 | 0.224 | 0.411 |
| 50 × 50 | 0.20 | 0.31 |
| 60 × 60 | 0.16 | 0.263 |
| 80 × 80 | 0.14 | 0.178 |
| 100 × 100 | 0.112 | 0.142 |
| 120 × 120 | 0.09 | 0.122 |
| 150 × 150 | 0.063 | 0.109 |
Packing details:
* Carton--plywood case
* Special packing can customized
How to make your own filter disc? Here are the directions:
1. Choose the material of filter disc.
2. Please specify your filter disc mesh or aperature.
3. Please specify your filter disc diameter.
4. Choose the filter disc type: round, square, rectangle, oval etc.
5. We need to know your quantity, this will determine the best price!
Weaving Types:

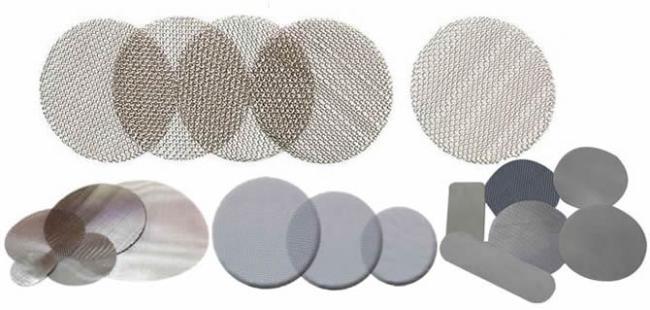

Product photos :
Contect Details :
