Plastic Extruder Wire Mesh Filter Discs Pack Extruder Screen Single / Multilayers
Plastic extruder screen stainless steel wire mesh filter pack
Our company has been focusing on manufacturing a wide assortment of extruder screens covering plastic, rubber processing, and plastic extrusion and reclamation applications to ensure a clean and viable extrusion. To match with the requirement of the customers', diverse extrusion screen filters are supplied including common disk shape, oval, rectangle, kidney to any unique shapes with or without borders.
Plastic & melt extruder screen packs are made of woven wire mesh and the common material is stainless steel 304L & 316L. The mesh filter is available in plain, dutch or twill weave styles to receive the filtration requirement. The apertures can be produced from 10 to 1000 microns.
Are you always worried about finding a most suitable for your project? Our engineers will work together with your R&D team to design the customized extrusion filter until you & your customer satisfy.
Product specification:
- Item: extruder screen.
- Material: stainless steel 304, 316, 304L & 316L, galvanised mild steel. (other materials are available on order).
- Weave types: plain, dutch & twill.
- Layer: single or multilayers.

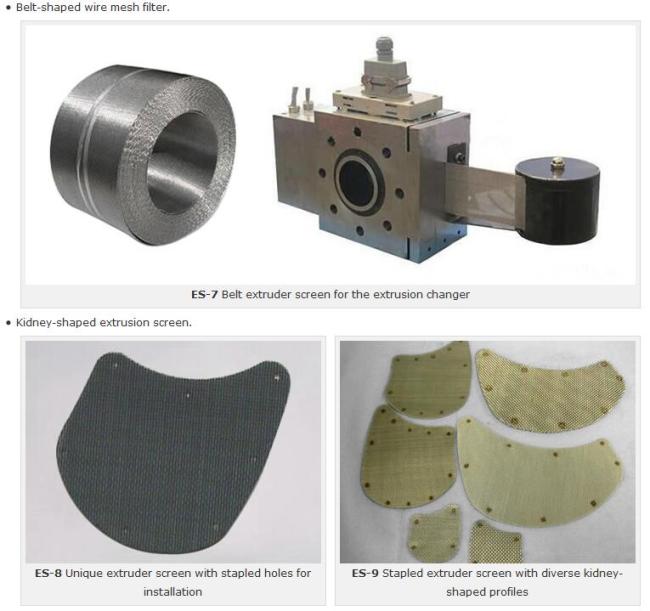

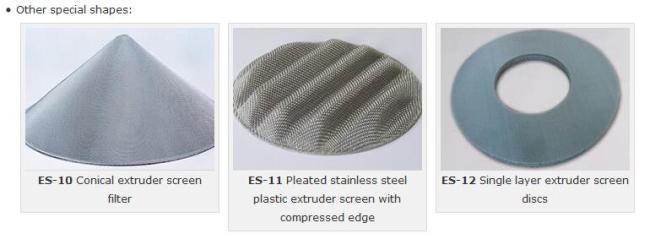

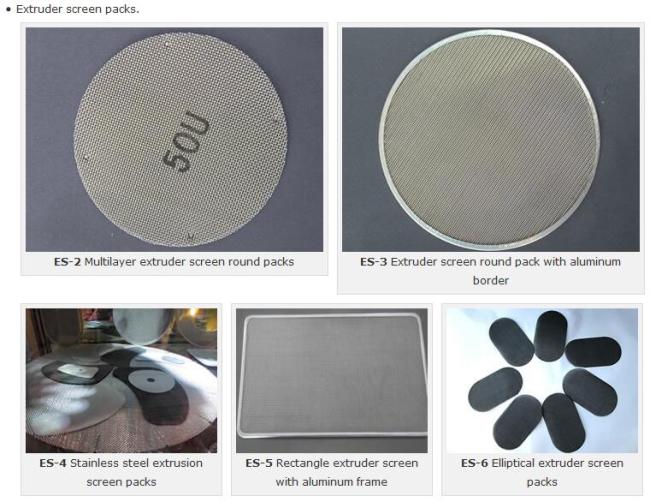

- Screen Shapes: spot-welded round packs, welded round packs, round packs with or without rims, cylinder, candle, and kidney-shaped
NOTE: custom extruder screen packs are available.
Applications of extruder screen mesh:
- Plastic & rubber reclamation.
- Extrusion of plastic profiles.
- Blown film extrusion.
- Plastic & rubber processing machinery.
- Melt filtration process.
Features & benefits:
- Precise wire mesh filtration.
- Anti-abrasive & anti-corrosive properties.
- Heat resistance.
- Available in diverse shapes, specifications and weave types.
- Reusable & cleanable.
- Smooth screening surface.
- Cost-effective & durable.
| Mesh Count | Wire Diameter (mm) | Aperture (mm) |
|---|---|---|
| 6 × 6 | 0.900 | 3.31 |
| 10 × 10 | 0.56 | 1.98 |
| 20 × 20 | 0.4 | 0.9 |
| 30 × 30 | 0.28 | 0.57 |
| 40 × 40 | 0.224 | 0.411 |
| 50 × 50 | 0.20 | 0.31 |
| 60 × 60 | 0.16 | 0.263 |
| 80 × 80 | 0.14 | 0.178 |
| 100 × 100 | 0.112 | 0.142 |
| 120 × 120 | 0.09 | 0.122 |
| 150 × 150 | 0.063 | 0.109 |
Extruder screen filter types:

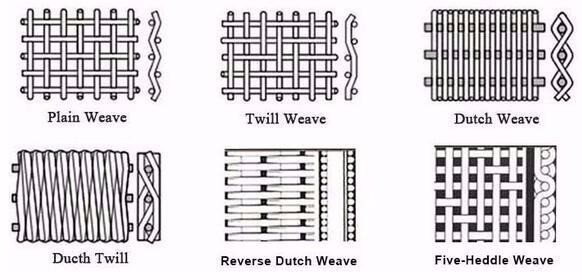

Weaving Types:
