AISI 316 Stainless Steel Sintered Mesh Cartridge for industrial filter

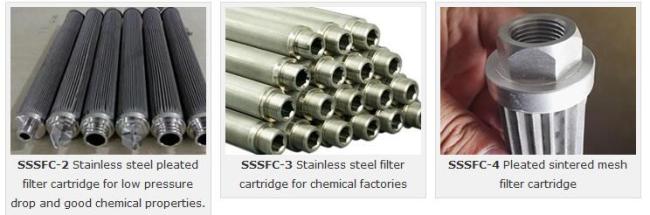

Stainless steel sintered mesh filter cartridge, usually manufactured from 5 - layer sintered wire mesh, is an integrated porous filter element. As the SSSFC-4 shown in sintered mesh filter basics, the middle layer mesh with fine gauge decides to the size of particles and rates of filtration. Other coarser mesh or perforated screen overlaid is designed to support and protect the fine filtration layer. The rigid structure of sintered mesh offers better performance in precise pore size, flow permeability and lower pressure drop.

Stainless steel filter cartridge plays an important role in the filtration of heavily contaminated gases, liquids and steam. With the help of the inherent properties of stainless steel, stainless sintered metal filter cartridge filter does better job in resisting high temperatures, differential pressures and corrosive environments than paper or synthetic fabric.

Stainless steel elements can be plain, pleated cartridge & cylinders to suit the filtration conditions. Pleated structure enlarges the filtration area and improves the efficiency. We have professional engineers to design special stainless steel filter for you.

Product specification:

• Item: stainless steel sintered mesh filter cartridge.
• Material: stainless steel 304 & 316 (special material on request).
• Standard diameter: 66 mm.
• Length: 125 mm, 250 mm, 498 mm, 1012 mm.
• Gaskets: EPDM, silicone, nitrile or as required.

NOTE: bespoke diameters & lengths are available.

Applications:

• Chemical processing.
• Water treatment.
• Pharmaceutical.
• Food & beverage.
• Nuclear & energy.

Features & benefits:

• High operating differential pressures.
• Re-cleanable & reusable.
• High permeability.
• Low clean and pressure drops.
• Premium dirt holding capacity.
• Less maintenance costs.
• Pleated construction for more filtration area.

Stainless steel sintered mesh cartridges:

Pleated sintered mesh cartridges.
