RC Roller Compactor Continuous Extrude Compaction Pharmaceutical Granulation Equipments Horizontal

RC Roller Compactor

Description:

RC Roller Compactor is a high-efficiency granulating equipment, especially for thermosensitive and humidity sensitive products.

The two stage mill sieves are 20~30 mesh sizes, granulation pass rate ≥ 80% (standard placebo of starch and sugar).

Fine powder content 8~10%.

Within 15 minutes to disassemble front parts for cleaning, which can be done without any special tool.

Dry granulation is easy process and without physical change to materials. It is widely used in pharmaceutical industry, chemical and foodstuff industries.

Features:

High automation.
Processing area and driving area reasonably isolated.
Front processing parts are easy to dismantle for cleaning.
Controlled dust release, no cross contamination.

Specifications:



Model	RCS40	RC70	RC100	RC200
Capacity [kg/h]	40	70	100	200
Output Particle Size [mesh]	15~60	15~60	15~60	15~60
Roller Pressure [t/cm²]	4	4	5	5
Power [kW]	11.5	13.5	18.5	21.6
Dimensions [mm]	1100x1000x1600	1200x1000x1880	1445x1400x1982	1600x1530x2100
Machine Weight [kg]	700	900	1100	2000





Product Picture:

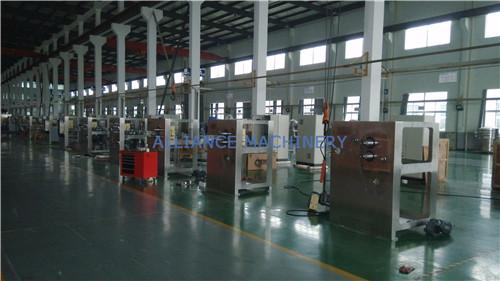

Production workshop





Finished granular samples
