Annealing Condition Carbon Tool Steel Flat Bar For Plastic Mould Steel
S50C 1.1210 SAE1050 C50 Carbon Tool Steel flat bar for Plastic Mould Steel
1. Product Description Details:
Grade S50C carbon Tool steel is a high quality medium carbon steel, which adopted by the furnace, open-hearth, or oxygen converter steel making manufacture full killed steel having a uniform microstructure features.
2. Specifications
| Grade | S50C/1.1210/SAE1050/C50/50# |
| Standard | ASTM, AISI, JIS, DIN, GB |
| Condition | Hot rolled, Annealing, Black surface |
| Thickness | 8-350mm |
| Width | 155-710mm |
| Length | 2000-2200mm |
3. Chemical Composition(%)
| C | Si | Mn | P | S | Cr | Ni | Cu |
| 0.47-0.53 | 0.15-0.35 | 0.6-0.9 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | ≤0.25 |
4. Available sizes for Carbon Tool steel flat & round Bar
| STANDARD | Plate / Flat Bar Size(mm) | Round bar Size(mm) | Technics | ||||||
| DIN | AISM | JIS | GB (China) | Thickness | Width | Length | Diameter | Length | |
| 1.1210 | SAE1050 | S50C | 50# | 8-550 | 155-2200 | 2000-12000 | 10-300 | 3000-6000 | Hot Rolled or Forged |
| 1.1191 | SAE1045 | C45C | 45# | 8-550 | 155-2200 | 2000-12000 | 10-300 | 3000-6000 | |
5. Feature:
1, Tempering HRC19-22
2, Carbon content (mass fraction,%) ≥ 0.4, good wear resistance,ductility reduction.
3, High-quality medium carbon steel,uniform characteristics of the microstructure.
4, Tempering must be quenched to avoid the occurrence of temper brittleness.
6. Applications:
1, For the manufacture of high wear resistance, dynamic load and impact of the role of small machined parts and spring pieces.
2, Can be used for a variety of cold mold die pad.
3, Standard template material.
7. Delivery Time
| Stocks | 15-20 days |
| Customized products | 30-50 days |
8. Package: Standard export packing or according to customers' request.
9. Quality Condition
a. Both end of each bar must be cut as require
b. Ladle furnanced and vacuum de-gassed
c. Show heat No. on each bar
d. Surface condition the surface of the hot rolled square bar shall befree cracks, scar and wrinkles that affect the use of the billets. In case there is the above-mentioned defect, it shall be remove.
e. The mill test certificate shall show the chemical composition, and it is guaranteed that the chemical composition shall be within the limit stipulated in the contract.
10. Production capacity: 1000t/month
11. Why choose us?
Our company have introduced large-sized vertical saw machines, horizontal saw machines, milling machines, grinding machines and other advance equipment, exporting our products by wholesales and retail sales, big plate or flat, round bar are all available.
All our products can meet the standards of DIN, AISI, JIS and GB, all the material should be inspected the ultrasonic, hardness and others strict inspection process before the shipment!
Fast shipment & competitive price & super good service.
12. Other service:
Carbon Steel flats: Cutting by bandsaw machine, milling, heat treatment, etc.
Carbon steel round bars: Cutting by bandsaw machine, peeling, grinding and turned, heat treatment, etc.

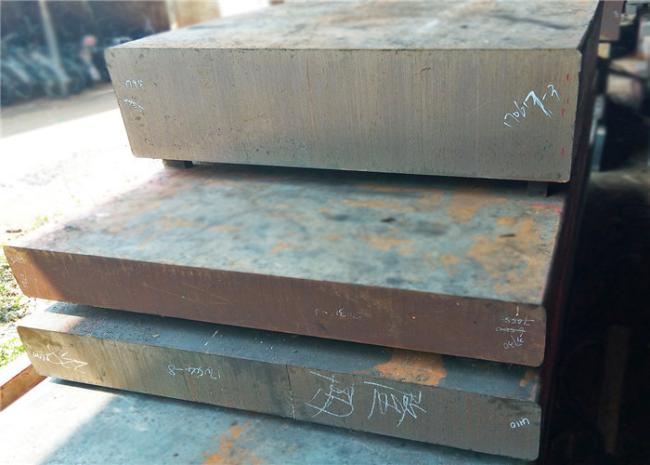

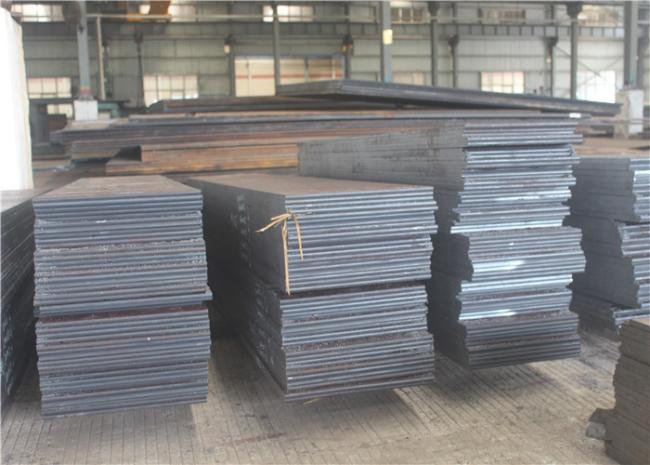

More carbon tool steel photos
