700mm Thickness Plastic Mould Steel Plate S50C / 1.1210 / SAE1050 For Making Mould Frame
700mm Thickness Plastic Mould Steel Plate S50C / 1.1210 / SAE1050 For Making Mould Frame
plastic mould steel plate S50C/1.1210/SAE1050 for making mould frame
Product Introduction
S50C is a high-quality medium-carbon steel. As a kind of ordinary steel, it is widely used in the industrial field, especially the plate, which is a typical cold-working die steel material, often used as processing raw material of machinery factory to make various mechanical parts.
Chemical Composition(%):
| C | Si | Mn | P | S | Cr | Ni | Cu |
| 0.41-0.50 | 0.15-0.35 | 0.6-0.9 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | ≤0.25 |
Features:
1,High-quality medium carbon steel,uniform characteristics of the microstructure.
2,Carbon content (mass fraction,%) ≥ 0.4, good wear resistance,ductility reduction.
3,Tempering must be quenched to avoid the occurrence of temper brittleness.
Applications:
1,Can be used for a variety of cold mold die pad.
2,For the manufacture of high wear resistance, dynamic load and impact of the role of small machined parts and spring pieces.
3,Standard template material.
Available size(mm)
| Plate | Thickness | 8-700mm |
| Width | 1600-1200mm | |
| Length | 2200-5800mm | |
| Flat bar | Thickness | 8-700mm |
| Width | 155-710mm | |
| Length | 4000-6000mm | |
| Round bar | Diameter | 10-350mm (>260mm forged) |
| Length | 4000-12000mm | |
| Block | Thickness | 350-1000mm |
| Width | 800-1600mm | |
| Length | 2000-6000mm |
Company Profile
Guangzhou Changfeng Steel Co.,LTD is an export agent company of Baosteel Group special steel products, which mainly sells plastic die steel, hot work die steel, cold work die steel, alloy structural steel, bearing steel, tool steel, stainless teel, carbon steel, etc. We also act on behalf of exporting steels of mainly steel factories in China, including Shagang group, Wenfeng group, Xingcheng group, Dongte group, Daye and so on. Changfeng is full of export experience to the market all over the world, such as America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and Middle-East.
Changfeng has a lot of experienced and competent elites and is capable of offering the best service after years of development. Our company equips with large-sized Vertical saw machines, Horizontal saw machines, Milling machines, Grinding machines and other advanced equipments to provide customers with cutting and other processing services. Our all products should be inspected the metallographic analysis,hardness, ultrasonic flaw detection and other strict inspection processes, which meet the standards of DIN, AISI,JIS and GB to ensure their function and quality.
Changfeng keeps the principle of " sincerely cooperation, endless striving for perfection" to establish long-term and win-win relationship with importers all over the world.

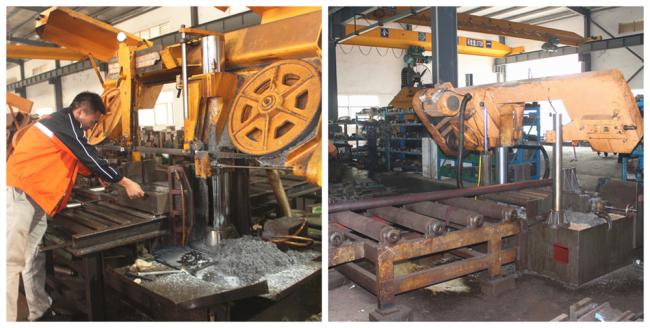

Production Line

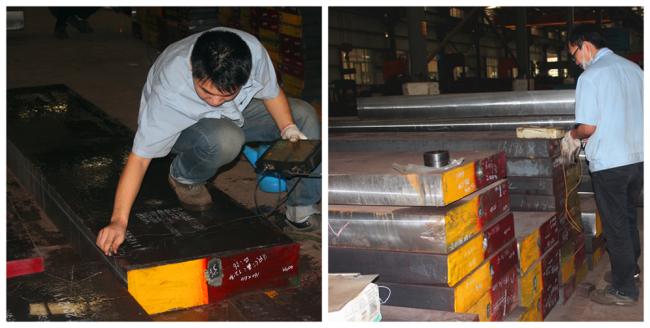

Quality Inspection

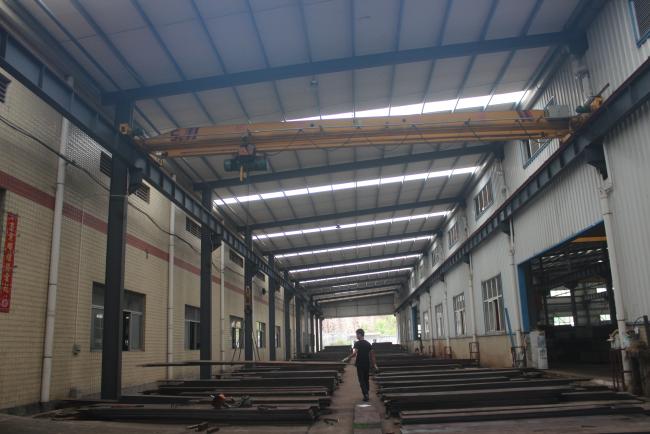

Warehouse
Our service
We provide quality special steel for all industries.
Orders of any size, any length, shipped fast
We carry a unique inventory of specialty special steel
Provide related value-adding services :
metal cutting, sizing, machining (blanking, milling, grinding), and heat treatment.
Sawing for small or large quantities, sawing-to-size.
Excellent customer service
