16 - 200mm Dia Hot Work Tool Steel 1.2344 / H13 / SKD61 For Hot Squeezing Die
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15 days
Brand:
CF
Product Description

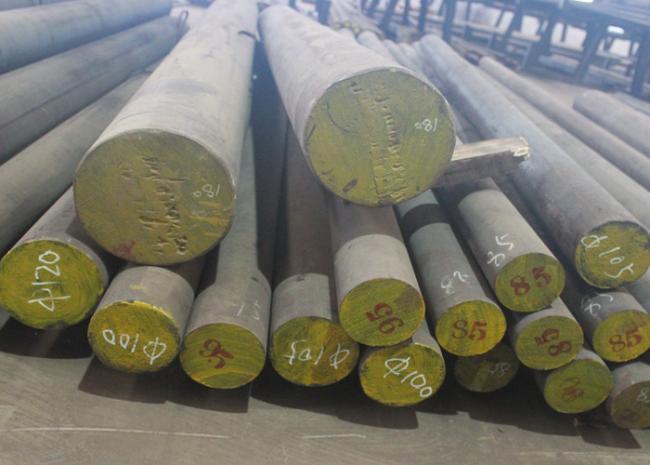

1.2344/ H13/ SKD61 Hot Rolled Alloy Round Bar of Hot Work Tool Steel
1.2344 H13 SKD61 Tool Steel is chromium hot work tool steels which are widely used for hot and cold work tooling applications. 1.2344 H13 SKD61 tool steel is classified as range H steels by the AISI classification system range.This range of steels start from H1 to H19.
| Equivalent Grades | Inrtoduction | ||||||
| GB | DIN | AISI | JIS | ASSAB | H13 is hot work die steel, the implementation of standard GB / T1299-2000. ; Grade 4Cr5MoSiV1; alloy tool steel referred to as the joint steel, carbon steel is based on the addition of alloying elements and the formation of steel. Among them, including: measuring tool with cutting tools, impact resistance steel, cold work die steel, hot die steel, non-magnetic die steel, plastic mold steel. | ||
| 4Cr5MoSiV1 | 1.2344 | H13 | SKD61 | 8407 | |||
| Available Size (mm) | |||||||
| Flat Bar Size (mm) | Round bar Size(mm) | ||||||
| Thickness | Width | Length | Diameter | Length | |||
| 16-260 | 205-610 | 3000-6000 | 16-200 | 3000-6000 | |||
| Chemical Composition(%) | |||||||
| C | Si | Mn | P | S | Cr | Mo | V |
| 0.30-0.40 | 1.20-1.60 | 0.30-0.50 | ≤0.015 | ≤0.003 | 3.5-4.5 | 0.80-1.20 | 0.80-1.00 |
| Recommend Heat Treatment | |||||||
| Quench | Temper | ||||||
| Heating temperature/ºC | Cooling way | Hardness (HRC) | Tempering temperature | Tempering number | Hardness | ||
| First preheating | Second preheating | Last heating | /ºC | (HRC) | |||
| 500-600 | 820-860 | 1010-1060 | Oil Cooling | 53-55 | 560-620 | 2 | 50-47 |
| 1. Characteristics | |||||||
| a,High resistance of tempering softenng properties(the using temperanture can improve 50ºC than that of H13 steel). | |||||||
| b,Excellent Thermal Stability:Heat preservation in the long time of 620ºC,the hardness is always higher than that of H13,and still maintain in 35HRC above. | |||||||
| c,Excellent thermal fatigue resistance:The thermal fatigue resistance is better than that of H13 steel. | |||||||
| 2. Applications | |||||||
| Forging die,casting die,hot squeezing die | |||||||
| 3. Technical service | |||||||
| Die vacuum heat treatment and die surface treatment(N-O,C-N,carburize and nitridation surface treatment). | |||||||
| 4. Terms of payment | |||||||
| 30% deposit T/T and the balance by L/C at sight, or T/T | |||||||
| 5. Delivery condition | |||||||
| For abundant stock, 15-20 days.For customized products, 30-50 days. | |||||||
| Factory Hardness: Annealing 235 ~ 205 HB, quenching ≥50 HRC | |||||||
Our service
Our company have introduced large-sized vertical saw machines, horizontal saw machines, milling machines, grinding machines and other advance equipments, we can export our products by wholesales
and retail sales, whole plate or strip is available. All our products can meet the standards of DIN, AISI, JIS and GB, all the material should be inspected the ultrasonic, hardness and others strict inspection
process before the shipment.
a, Sizes, materials and others are all at your requirements and can be changed;
b, Price varies on materials, dimensions, finish craft and different payments;
c, We are direct manufacture in machinery manufacturing work with experience of several decades;
d, Detail production design will be made according to information you offered;
e, We have adequate inventory, so that we can quick delivery;
f, The most important is that we have advanced equipment.
