Hot Rolled Steel Bar 1.2344/H13/SKD61 Electro Slag Remelting Multi Shaped
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15 days
Brand:
CF
Product Description

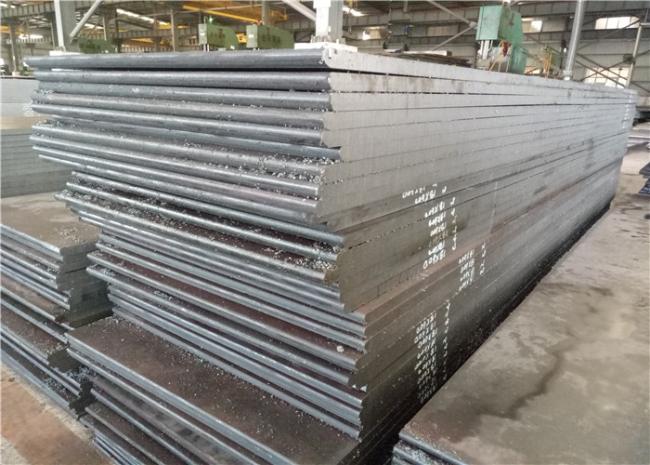

1.2344/ H13/ SKD61 Alloy Steel Plate and Flat Bar for Hot Work Tool Steel
Equivalent Grades
| GB | DIN | AISI | JIS | ASSAB |
| 4Cr5MoSiV1 | 1.2344 | H13 | SKD61 | 8407 |
Features
a, Electro slag remelting, annealing with diffusion process and ultrafining heat-treatment has good microstructua homogeneity and finer dispersed carbides.
b, High isotropy, aspect rations≥0.8
c, Good tempering performance, high toughness, high temperature strength, good thermal stability and thermal fatigue resistance.
d, Annealing hardness≤230HB,quenching hardness 51-55HRC,tempering hardness 46-50HRC
Available Size (mm)
| Flat Bar Size(mm) | Round bar Size(mm) | |||
| Thickness | Width | Length | Diameter | Length |
| 16-260 | 205-610 | 3000-6000 | 16-200 | 300-6000 |
Chemical Composition (%)
| Grade | C | Si | Mn | P | S | Cr | Mo | V |
| H13 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| SKD61 | 0.32-0.42 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| 1.2344 | 0.38-0.42 | 0.80-1.20 | 0.30-0.50 | ≤0.015 | ≤0.020 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 |
| 4Cr5MoSiV1 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
Recommend Heat Treatment
| quenching | tempering | ||||||
| Heating temperature/℃ | Cooling way | Hardness (HRC) | Tempering temperature /ºC |
Tempering number | Hardness (HRC) |
||
| First preheating | Second preheating | Last heating | |||||
| 500-550 | 750-800 | 1020-1050 | Oil Cooling or Air Cooling | 56-58 | 560-580 | 3 | 40-45 |
Our service
Our company have introduced large-sized vertical saw machines, horizontal saw machines, milling machines, grinding machines and other advance equipments, we can export our products by wholesales
and retail sales, whole plate or strip is available. All our products can meet the standards of DIN, AISI, JIS and GB, all the material should be inspected the ultrasonic, hardness and others strict inspection
process before the shipment.
a, Sizes, materials and others are all at your requirements and can be changed;
b, Price varies on materials, dimensions, finish craft and different payments;
c, We are direct manufacture in machinery manufacturing work with experience of several decades;
d, Detail production design will be made according to information you offered;
e, We have adequate inventory, so that we can quick delivery;
f, The most important is that we have advanced equipment.
