S50C Carbon Tool Steel Flat Bar Black Surface Carbon Content Mass Fraction ≥0.4%
S50C Carbon Tool Steel flat bar with high quality & fast shipment
Product Description:
Grade S50C carbon tool steel is a high quality medium carbon steel, which adopted by the furnace, open-hearth, or oxygen converter steel making manufacture full killed steel having a uniform microstructure features.
S50C Carbon Tool Steel Specifications
| Grade | S50C/1.1210/SAE1050/C50/50# |
| Standard | ASTM, AISI, JIS, DIN, GB |
| Condition | Hot rolled, Annealing, Black surface |
| Thickness | 8-350mm |
| Width | >155mm |
| Length | 2000-2200mm |
S50C Chemical Composition(%)
| C | Si | Mn | P | S | Cr | Ni | Cu |
| 0.47-0.53 | 0.15-0.35 | 0.6-0.9 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | ≤0.25 |
Available sizes for S50C Carbon Tool steel
| STANDARD | Plate/Flat Bar Size(mm) | Round bar Size(mm) | Technics | ||||||
| DIN | AISM | JIS | GB (China) | Thickness | Width | Length | Diameter | Length | |
| 1.121 | SAE1050 | S50C | 50# | 8-350 | 155-2200 | 2200-12000 | 10-300 | 3000-6000 | Hot Rolled or Forged |
Applications:
1, Can be used for a variety of cold mold die pad.
2, For the manufacture of high wear resistance, dynamic load and impact of the role of small machined parts and spring pieces.
3, Standard template material
Feature:
1, High-quality medium carbon steel,uniform characteristics of the microstructure.
2, Carbon content (mass fraction,%) ≥ 0.4, good wear resistance,ductility reduction.
3, Tempering must be quenched to avoid the occurrence of temper brittleness.
4, Tempering HRC19-22
Delivery Time
| Stocks | 15-20 days |
| Customized products | 30-50 days |

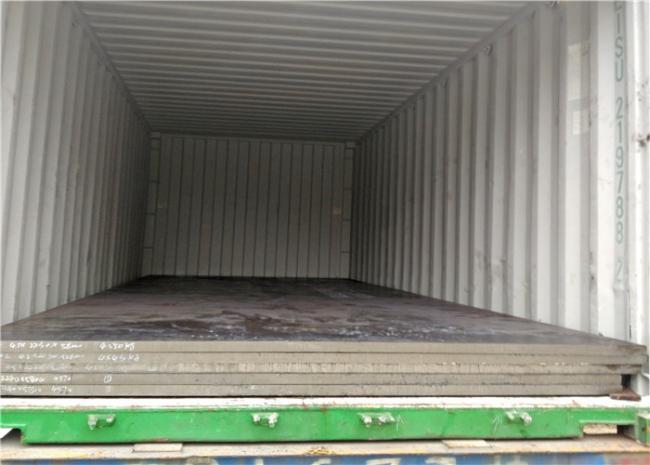

Package: Standard export packing or according to customers' request.
Quality Condition
1. Ladle furnanced and vacuum de-gassed
2. Both end of each bar must be cut as require
3. Show heat No. on each bar
4. Surface condition the surface of the hot rolled square bar shall befree cracks, scar and wrinkles that affect the use of the billets. In case there is the above-mentioned defect, it shall be remove.
5. The mill test certificate shall show the chemical composition, and it is guaranteed that the chemical composition shall be within the limit stipulated in the contract.
Why choose us?
Our company have introduced large-sized vertical saw machines, horizontal saw machines, milling machines, grinding machines and other advance equipment, exporting our products by wholesales and retail sales, big plate or flat, round bar are all available.
All our products can meet the standards of DIN, AISI, JIS and GB, all the material should be inspected the ultrasonic, hardness and others strict inspection process before the shipment!
We provide competitive price and fast shipment to make your business become booming and booming!
Other service:
Carbon Steel flats: Cutting by bandsaw machine, milling, heat treatment, etc.
Carbon steel round bars: Cutting by bandsaw machine, peeling, grinding and turned, heat treatment, etc.

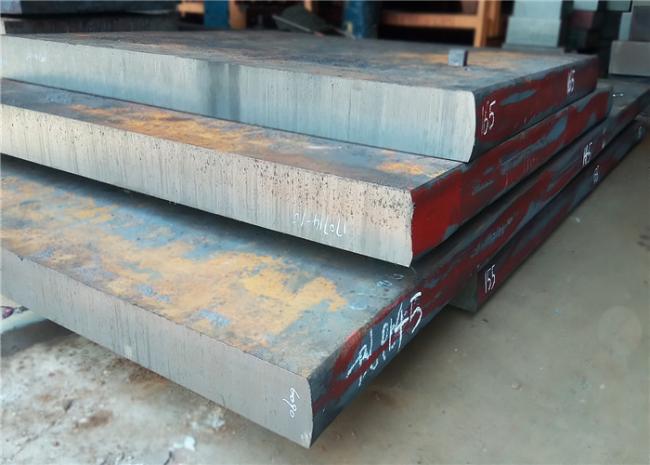

Carbon Tool steel photos
