Good Polishing 1.2316 Tool Steel , Tool Steel Flat Bar Pre - Hardened For Cold Structural Parts
Good Polishing & Processing Performance 1.2316 Q+T Special Tool Steel
1.2316 special tool steel is a highly corrosion-resistant, high-polished and pre-hardened plastic steel. It has excellent processing performance, excellent machinability, excellent corrosion resistance, excellent polishing, excellent machinability and excellent stability while quenching.
1.2316 steel suitable for cosmetic molds, stationery molds and other need to polish the plastic mold requirements.
Similar Grade
1.2316, 4Cr16Mo, 420, SUS420
Chemical Composition(%)
| 1.2316 | C | Cr | Mn | Mo | Si | Ni | P | S |
| 0.33-0.43 | 15.00-17.00 | ≤1.00 | 1.00-1.30 | ≤1.00 | ≤1.00 | ≤0.03 | ≤0.03 |
Available size(mm)
| Plate / Flat Bar Size(mm) | Round bar Size(mm) | |||
| Thickness | Width | Length | Diameter | Length |
| 10-500 | 155-1200 | 2000-6000 | 20-300 | 3000-6000 |
Applications
● Thermoplastic injection mold, extrusion die.
● Thermoplastic plastic blow mold.
● Heavy mold main parts.
● cold structural parts.
● commonly used in the manufacture of TV cases, washing machines, refrigerator inner shell, buckets and so on.
Features
● Vacuum degassing refining steel pure, suitable for polishing or etching plastic mold.
● Pre-hardened state delivery, without the heat treatment can be used directly for mold processing, shorten the construction period.
● Forging rolling processing, dense tissue, 100% ultrasonic testing, no holes, pin-eye defects.
Delivery Time
15-40 days after receiving deposit.
Forging: 1050-850 ℃
Annealing: heated to 750-800 ℃, stay at this temperature for 1 to 3 hours, let it in the furnace to let it cool.
Quenching: first preheated to 550 ~ 650 ℃, and then heated to 800 ~ 850 ℃, and then heated to 1020 ~ 1050 ℃, and then air-cooled, oil quenched or hot bath 350 ~ 500 ℃ classification quenching.
Tempering: first heated to 180 ~ 200 ℃, at this temperature to stay, and then cooled in still air; second heated to 200 ~ 600 ℃, according to the job requirements to select the temperature.
Our Advantages
- We are a stockist who have a lot of stocks all the time, we can arrange fast shipment
- All products 100% pass UT test before the shipment.
- The 3rd party inspection is accept.
- Low MOQ request
- TT, LC payment are both accepted
- High quality, you won’t have any quality problems
About Guangzhou Changfeng Steel
We have large-sized vertical saw machines, horizontal saw machines, milling machines, grinding machines and other advance equipment, exporting our products by wholesales and retail sales, big plate or flat, round bar are all available.
All our products can meet the standards of DIN, AISI, JIS and GB, all the material should be inspected the ultrasonic, hardness and others strict inspection process before the shipment!
We provide competitive price and fast shipment to make your business become booming and booming!

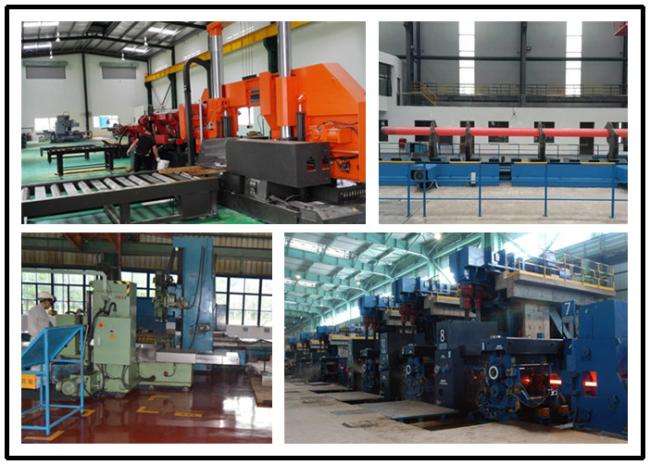

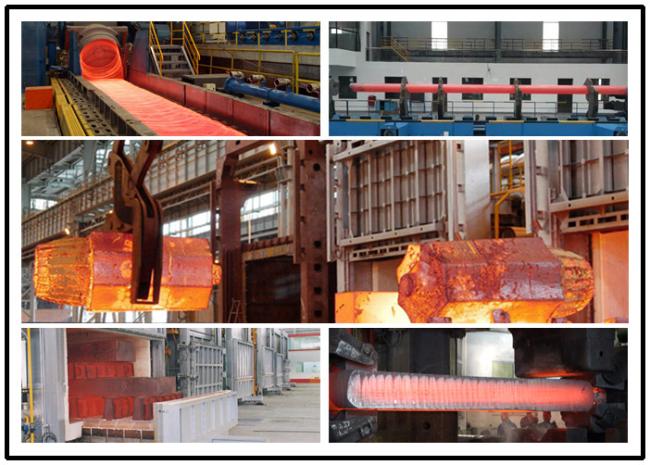

Factory photos
