M2 / SKH51 Special Tool Steel Round Bar , Hot Rolled Steel Bar Balanced Combination
High Wear-resistant 1.3343 / M2 / SKH51 High Speed Special Tool Steel Round Bar
Introduction:
M2 steel is a general purpose molybdenum high speed steel. M2 steel is characterized by balanced combination of abrasion resistance, toughness and good red hardness. Due to its comparatively low carbon content, M2 steel has an excellent combination of toughness properties and abrasion resistance when properly hardened and tempered. M2 steel is used in a wide used for all kinds of cutting tool, knife and punch and die applications.
Equivalent grades:
| GB | DIN | AISI | JIS |
| W6Mo5Cr4V2 | 1.3343 | M2 | SKH51 |
Chemical Composition(%):
| C | Si | Mn | Cr | Mo | V | W | P | S |
| 0.80-0.90 | 0.20-0.45 | 0.15-0.40 | 3.80-4.40 | 4.50-5.50 | 1.75-2.20 | 5.50-6.75 | ≤0.030 | ≤0.030 |
Feature:
(1) The steel With carbide fine uniform, high toughness and good thermoplastic advantages;
(2) High hardness, high wear resistance, high hardness, high hardenability;
(3) Enough plasticity and toughness, and have good casting, forging, welding and machining
performance,so it occupies in the tool steel and the important position.
Applications:
1, Manufacture heavy load, complex shape, valuable tool (such as scraper, gear, milling cutter, drill bit, tapping knife, etc.).
2, Cold forging die, forging tool.
3, Cutting machine and heading forming die.
Recommend heat treatment:
| Quenching | Tempering | ||||||
| Heating temperature/℃ | Cooling way | Hardness (HRC) | Tempering temperature /ºC |
Cooling way | Hardness (HRC) |
||
| First preheating | Second preheating | Last heating | |||||
| 550-600 | 950 | 1220-1250 | Oil Cooling | ≥63 | 550-570 | Air Cooling | 60-62 |
Delivery conditions:
Annealed hardness : 255HBW,
Hot rolled,forged
Surface conditions: rough turning, peeling, polishing
Terms of payment:
30% deposit T/T and the balance by L/C at sight, or T/T.
Our main products:
Hot working tool steel, cold working tool steel, mould steel plate, steel flat bar, high speed steel, steel round bar, carbon steel, bearing steel, alloy tool steel, plastic mould steel.
Our main markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe etc.

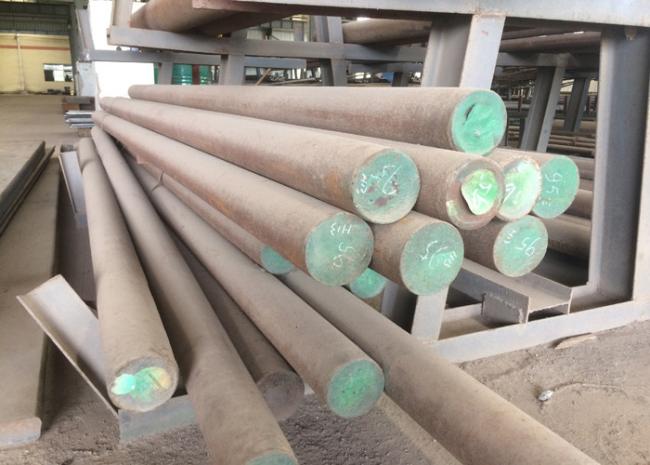

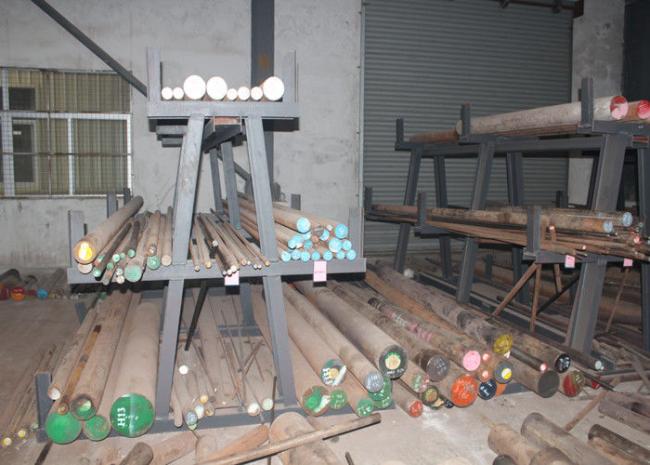

Product pictures:
Our service:

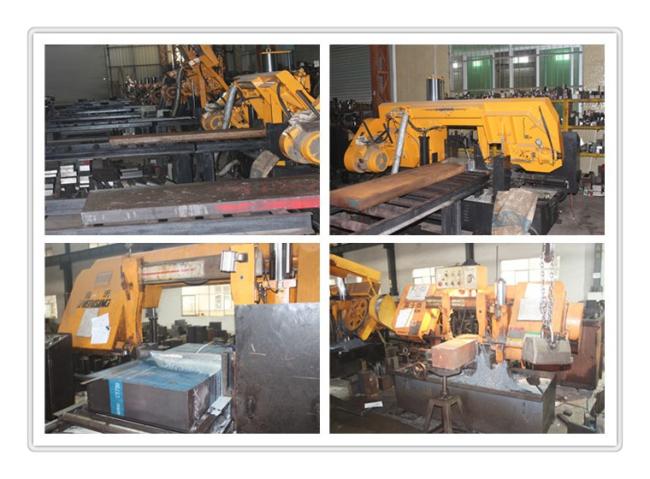

Our company have introduced large-sized vertical saw machines, horizontal saw machines, milling machines, grinding machines and other advance equipments, we can export our products by wholesales and retail sales, whole plate or strip is available. All our products can meet the standards of DIN, AISI, JIS and GB, all the material should be inspected the ultrasonic, hardness and others strict inspection process before the shipment!
We can provide below service:
A. Steel plates: Cutting by bandsaw machine, milling, heat treatment, etc
B. Round bars: Cutting by bandsaw machine, peeling, grinding and turned, heat treatment, etc

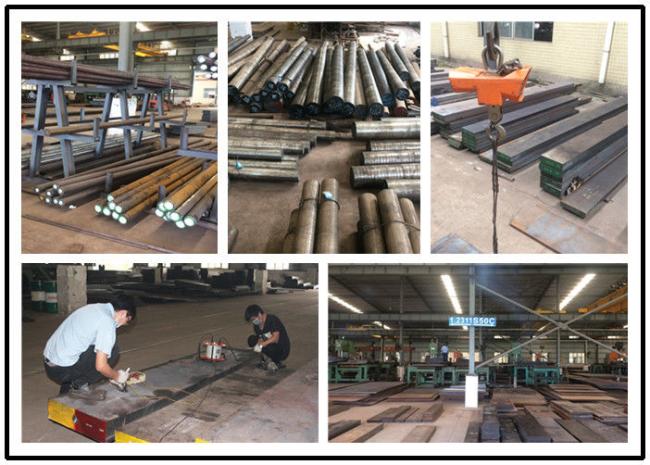

Corner of factory:
