Hot Rolled Heat Treating Tool Steel , S50C Tool Steel Easy Deformation When Quenching
Hot Rolled Carbon Tool Steel Plate S50C For Making Injection Plastic Mould
► Chemical Composition(%):
| C | Si | Mn | P | S | Cr | Ni | Cu |
| 0.41-0.50 | 0.15-0.35 | 0.6-0.9 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | ≤0.25 |
► Introduction:
Grade S50C carbon steel is a high quality medium carbon steel,which adopted by the furnace, open-hearth, or oxygen converter steelmaking manufacture full killed steel having a uniform microstructure features.
The carbon composition of this kind of steels is over 0.4%, and it has good wear resistance, high tensile strength,easy for deformation and crack when quenching,so that quenching for this material is very importance and it must quick cooling after tempering in order to avoid temper brittleness.
► Equivalent grades:
| GB(China) | DIN(German) | AISI(USA) | JIS(Japan) |
| 50# | 1.1210 | SAE1050 | S50C |
► Available size(mm):
| Flat Bar Size(mm) | Round bar Size(mm) | |||
| Thickness | Width | Length | Diameter | Length |
| 10-700 | 155-2200 | 3000-6000 | 10-300 | 3000-6000 |
► Feature:
1, High-quality medium carbon steel,uniform characteristics of the microstructure.
2, Carbon content (mass fraction,%) ≥ 0.4, good wear resistance,ductility reduction.
3, Tempering must be quenched to avoid the occurrence of temper brittleness.
► Applications:
| 1, | Can be used for a variety of cold mold die pad. |
| 2, | For the manufacture of high wear resistance, dynamic load and impact of the role of small machined parts and spring pieces. |
| 3, | Standard template material. |
It can improve the machinability of these carbon steel through spheroidizing.He steel is usually tempered to hardness 19~22HRC, to increase its cutting performance
► About us:
Sample can be offered with sample charge can courier fee by buyer’s side;
We have full stock, and can deliver within short time. Many styles for your choices;
Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you;
All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
► Main products:
Plastic Mould Steel:
AISI: SAE1050 / P20 / P20+Ni / P21 / 420
DIN: 1.1210 / 1.2311 / 1.2738 / 1.2083
GB: 50# / 3Cr2Mo / B30H / 3Cr2NiMnMo / B30H / B40 / 4Cr13
Hot / Cold Work Mould Steel:
AISI: H13 / D2 / D3 / O1 / SAE5140 / SAE4140 / SAE52100 / SAE8620
DIN: 1.2344 / 1.2379 / 1.2080 / 1.2510 / 1.7035 / 1.7225 / EN31 / 1.6523
GB: 4Cr5MoSiV1 / Cr12Mo1V1 / Cr12 / 9CrWMn / 42CrMo / GCr15 / 20CrNiMo
High Speed Steel:
AISI: M2 / T1 / M35 / M42
DIN: 1.3343 / 1.3355 / 1.3243 / 1.3247
GB: W6Mo5Cr4V2 / W18Cr4V / W6MoCr4V2Co5 / W2mo9Cr4VCo8

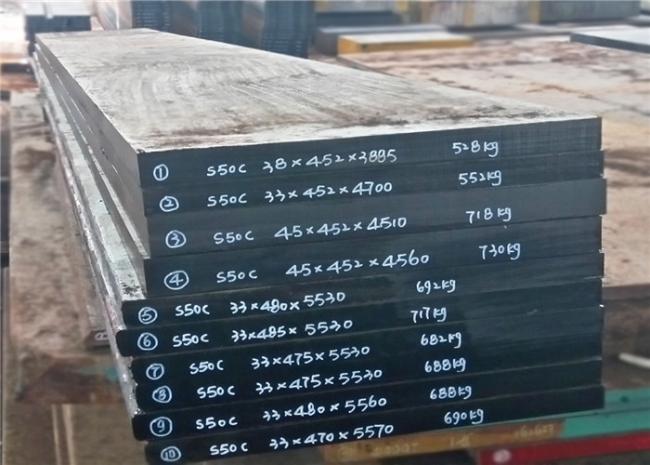

Products show:
