Plasitc Die Hot Rolled Alloy Steel DIN 1.2738 For High Demand Large Plastic Mould

DIN 1.2738 Hot Rolled Alloy Steel Plate To Make High Demand Large Plastic Mould

Equivalent grades:

Introduction:

Grade 1.2738 is one kind of pre-harndened mirror plasitc die steel that has excellent polishing, lithography, excellent machinability and good wear resistance.

The large mould has uniform hardness and density. No quenching and heat treatment deformation risk, no heat treatment, shortening die production cycle. Good surface nitriding performance. It can be treated with surface flame hardening to improve the surface hardness and wear resistance.

Chemical composition(%):

Available size(mm):

Features:

1, Good welding property of pre-hardened die blocks;
2, Good polishing property (high hardness uniformity,hardness fluctuation≤2HRC);
3, Excellent working;
4, Extra large cross sections:700mm×1300mm and weighs 20MT for one piece;
5, Application hardness:28-36HRC.

Heat treatment:

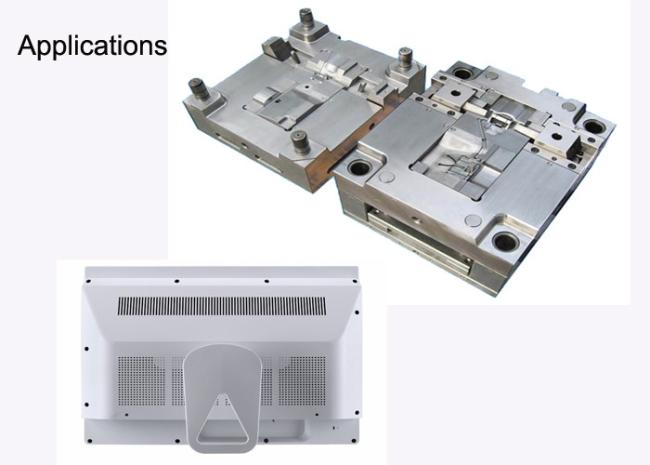

Applications:

1, Plastic molds for injection compressing and injection molding;
2, TV cabinets,drum mold of washing machine,etc.

Characteristic:

1. Uniform hardness of material;
2. Excellent polishing performance;
3. Good machining performance;
4. Pre-hard plastic mold steel;
5. Nitrogen can be applied;
6. Suitable surface treatment, such as: Cr.

Delivery condition:

EF or ESR, Hot rolled or forged, black surfaceor milling, hardned or tempering to 33-37HRC

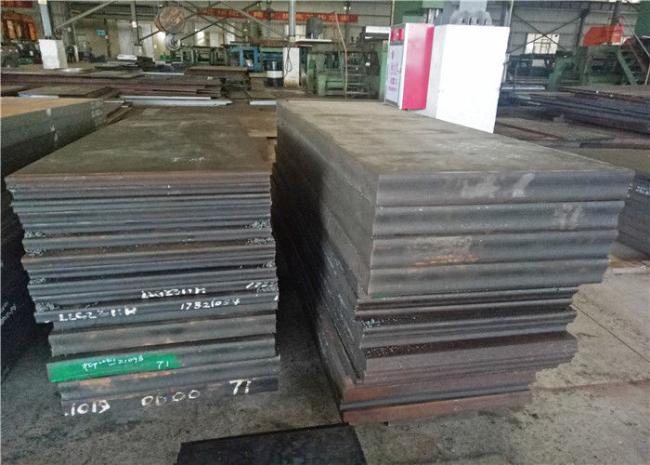

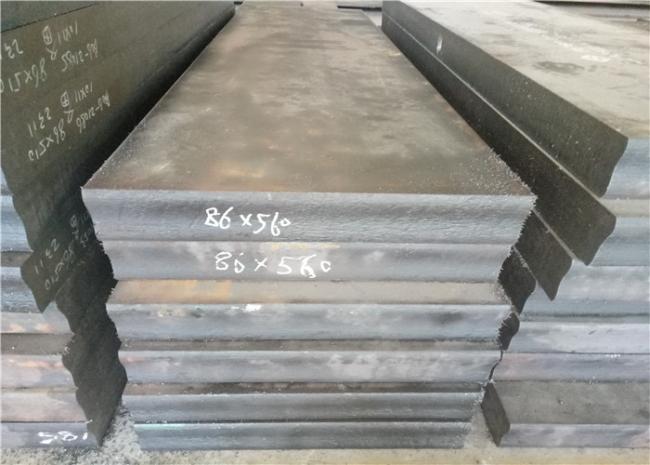

Products show:
