Turning Hot Rolled Steel Bar 1.2080 / D3 Diameter 10 - 180mm Superior Hardenability
Hot Rolled 1.2080 / D3 Alloy Tool Steel Bar Diameter 10-180mm
Equivalent grades:
| GB | DIN | AISI | JIS |
| Cr12 | 1.2080 | D3 | SKD1 |
Introduction:
Grade 1.2080 / D3 / Cr12 is a kind of alloy tool steel, has a good hardenability and good wear resistance, mainly used as under impact load is small, high wear resistance of cold die and punch, cold cutting scissors, drill sets, gauge, wire drawing die, stamping die, thread rolling plate, drawing die and screw thread rolling dies, etc.
Chemical composition(%):
| C | Si | Mn | Cr | Mo | Ni | Cu | P | S |
| 2.0-2.3 | 0.15-0.35 | 0.15-0.45 | 11.5-13.0 | 0.15-0.25 | 0.40-0.70 | ≤0.030 | ≤0.035 | ≤0.035 |
Features:
1. Vacuum degassing refining treatment of steel purity.
2. Spherification annealing and softening treatment, the cutting processing performance is good.
3. Reinforced vanadium, special addition of molybdenum, excellent wear resistance.
Heat treatment:
| Quenching | Tempering | ||||
| Heating temperature/℃ | Cooling way | Hardness (HRC) | Tempering temperature/ºC | Cooling way | Hardness (HRC) |
| 950-980 | Oil Cooling | 60-63 | 180-220 | Air Cooling | 60 |
| 400 | Air Cooling | 54-58 | |||
Applications:
1. The thickness is not greater than 2MM thin sheet, high efficiency falling mold, punching die and embossing die.
2. Various scissors, inlaid blades, woodworking blades.
3. Thread rolling die and wear resistant slider.
4. Cold heading mould, thermosetting resin forming die.
5. Stretch molding mold and cold extrusion die.
Delivery condition:
EF or ESR, hot rolled or forged, black surface or milling.
Hardness: annealed, HB217-269.
| Hot sale products for hot/cold work mould Steel | |||||||||
| STANDARD/GRADE | Flat Bar Size(mm) | Round bar Size(mm) | Technics | ||||||
| DIN | AISM | JIS | GB(China) | Thickness | Width | Length | Diameter | Length | |
| 1.2311 | P20 | PDS-3 | 3Cr2Mo | 10-700 | 155-2200 | 2000-6000 | 20-200 | 2000-6000 | Forged, Hot Rolled |
| 1.2738 | P20+Ni | - | 3Cr2NiMnMo | 10-1100 | 155-2200 | 2000-6000 | 20-200 | 2000-6000 | |
| 1.2379 | D2 | SKD10 | SKD10 | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 | |
| 1.2080 | D3 | SKD1 | 3Cr2Mo | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 | |
| 1.2083 | 420 | - | 4Cr13 | 10-500 | 155-1200 | 2000-6000 | 20-300 | 3000-6000 | |
| 1.2344 | H13 | SKD61 | 4Cr5MoSiV1 | 10-500 | 155-1600 | 2000-6000 | 20-400 | 3000-6000 | |
| 1.2510 | O1 | SKS3 | 9CrWMn | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 | |
| 1.7225 | SAE4140 | SCM440 | 42CrMo | 10-200 | 155-2200 | 2000-6000 | 20-200 | 3000-6000 | |
| 1.2010 | SAE1050 | S50C | 50# | 10-700 | 155-2200 | 3000-6000 | 10-300 | 3000-6000 | Hot Rolled |
| 1.1191 | SAE1045 | S45C | 45# | 10-700 | 155-2200 | 3000-6000 | 10-300 | 3000-6000 | |
About us:
Guangzhou Changfeng Steel Co., Ltd is an export company of Baogang group in south China specialized in exporting special steel, which contains Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Steel for Mechanical, High Speed Steel, Bearing Steel, Tool Steel, Stainless Steel, Carbon Steel, etc.
We also act on behalf of exporting steels of mainly steel factories in China, including Shagang group, Wenfeng group, Xingcheng group, Dongte group, Daye and so on. We are full of ten years export experience to the market all over the word, such as America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and middle-east.

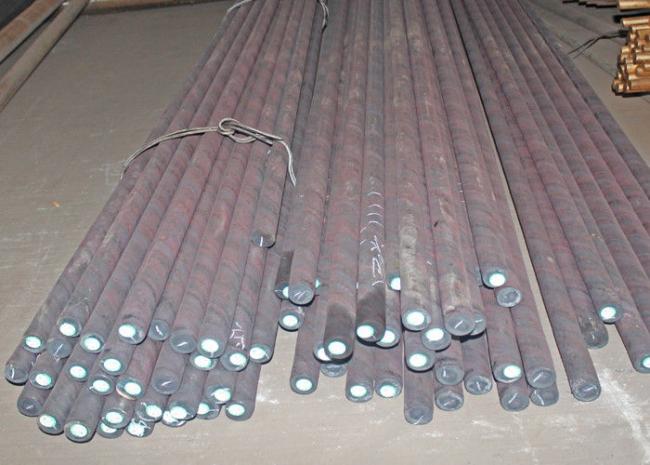

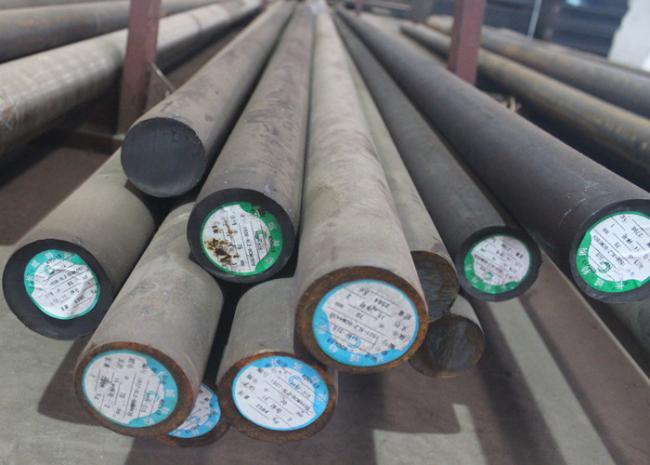

Product shows:
