Hot Work 1.2344 Tool Steel , H13 Tool Steel Tempering Heating 550 - 680℃
1.2344 / H13 / SKD61 / 4Cr5MoSiV1 Engineering Steel Bar of Hot Work Mould Steel
1. Similar Grade
| GB | DIN | AISI | JIS | ASSAB |
| 4Cr5MoSiV1 | 1.2344 | H13 | SKD61 | 8407 |
2. Chemical Composition(%)
| Grade | C | Si | Mn | P | S | Cr | Mo | V |
| H13 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| SKD61 | 0.32-0.42 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| 1.2344 | 0.38-0.42 | 0.80-1.20 | 0.30-0.50 | ≤0.015 | ≤0.020 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 |
| 4Cr5MoSiV1 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
3. Features
A. Good heat-resistance and fatigue-resistance.
B. Good cutting and polishing performance.
4. Application
Used for making hot squeeaing mould,forging mould and embedded lump.
A. Suitable to manufacturing aluminum, zinc, copper alloy extrusion die, die casting, hot forging die and hot shear blades, etc.
B. Extrusion mold of aluminum and magnesium, die-casting mold, especially adapt to the mold in large and complicated form.
C. Extrusion mold of copper alloy, die-casting mold
5. Heat Treatment
Quenching:
The first stage of preheating:500 ~ 550 ºC
The second stage of preheating:750 ~ 800 ºC
Cooling or high pressure gas cooling, 100 ~ 150 ºC in the tempering furnace.
Tempering:
Preheat:300 ~ 350 ºC
Tempering heating:550 ~ 680 ºC
Air cooling to room temperature, tempering three times.Quenching temperature 1000 ~ 1050 degrees, 50 to 55 HRC hardness, heat treatment deformation is small, can be nitriding surface nitriding processing, processing of products has better wear resistance.
6. Hardness
Annealing 235 ~ 205 HB
Quenching ≥50 HRC

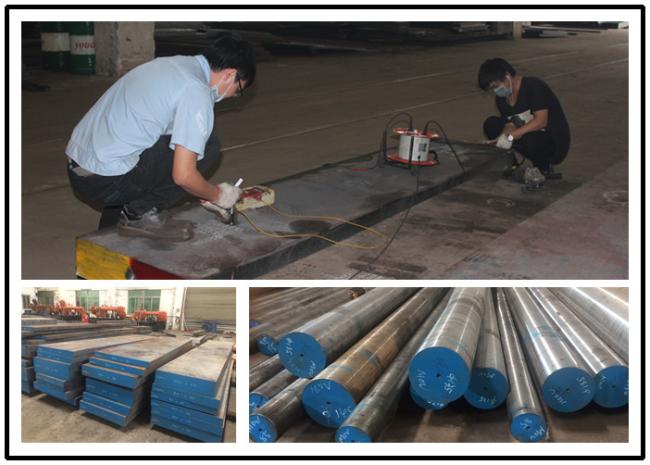

7. Available Size(mm)
| Flat Bar Size(mm) | Round bar Size(mm) | |||
| Thickness | Width | Length | Diameter | Length |
| 16-260 | 205-610 | 3000-6000 | 16-200 | 300-6000 |
8. Delivery
For abundant stock, 15-20 days. For customized products, 30-50 days.
9. Payment
30% deposit by T/T, the balance should be paid by T/T or L/C at sight before shipment.
