Black Surface DIN 1.2510 Tool Steel , Precision Ground Tool Steel Temper Softening Resistance
DIN 1.2510 Cold Work Tool Steel To Make Mini Surface Cold Die
Similar grades:
| GB | DIN | AISI | JIS |
| 9CrWMn | 1.2510 | O1 | SKS3 |
Introduction:
The characteristics of 1.2510 / O1 die steel is German microdeformation resistant oil steel, which is high quality and non-deformation cold tool steel.
The steel is a good oil quenching cold work die steel, has a good impact toughness, temper softening resistance, mechanical processing performance, firm mouth keep ability, high compressive strength, heat treatment deformation is small.
Chemical composition(%):
| C | Si | Mn | Cr | W | P | S | V |
| 0.90-1.05 | 0.15-0.35 | 1.00-1.20 | 0.50-0.70 | 0.50-0.70 | ≤0.035 | ≤0.035 | 0.05-0.15 |
Available size(mm):
| Flat Bar Size(mm) | Round Bar Size(mm) | |||
| Thickness | Width | Length | Diameter | Length |
| 6-80 | 205-610 | 2000-6000 | 12-180 | 300-6000 |
Features:
(1) With excellent machinability, hardened, the size is extremely stable, hardened, the surface has a very high hardness.
(2) With a high toughness, so excellent anti-wear ability and easy forging and quenching.
(3) Can be widely used in cutting, cold stamping and forming tools; such as notch die, cold stamping die, various gauges, reamers, mold bushings and plastic small modules.
Heat treatment:
| Quenching | Tempering | ||||||
| Heating temperature/℃ | Cooling way | Hardness (HRC) | Tempering temperature /ºC |
Cooling way | Hardness (HRC) |
||
| 820-840 | Oil Cooling | 64-66 | 160-180 | Air Cooling | ≥62 | ||
Applications:
1, It is suitable for making cold-resistant and non-deformed cold mold, such as sheet stamping die and jewelry embossing die.
2, It is mainly used for various kinds of metal stamping die and forming tools, such as shearing knife die and shaft sleeve.
3, Cutting tools, woodworking cutting tools, etc.
4, It can be widely used for cutting tools.
Delivery condition:
1) EF or ESR, hot rolled or forged, black surface or milling.
2) For abundant stock, 15-20 days.For customized products, 30-50 days.
Terms of payments:
30% deposit T/T and the balance by L/C at sight, or T/T.

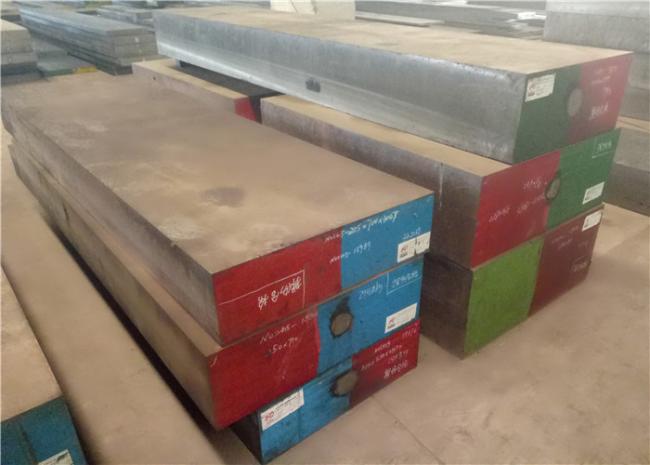

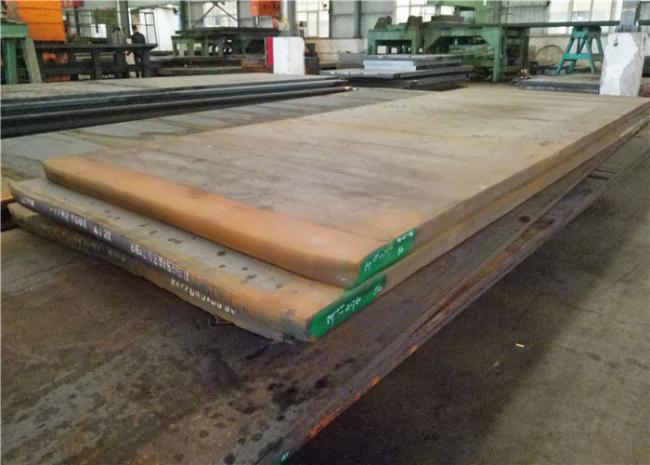

Products show:
About us:
Our company has rich experience and competent elites, which enable us to offer the best service after years of development. In addition, our company equips with large-sized vertical saw machines, horizontal saw machines, milling machines, grinding machines and other advanced equipments to provide customers with cutting and other processing services. We set up strict inspection procedures, including metallographic analysis, hardness test, ultrasonic flaw detection etc., in order to meet the standards of DIN, AISI, JIS and GB to ensure their function and quality.
Therefore, we can provide below service:
A. Steel plates: Cutting by bandsaw machine, milling, heat treatment, etc.
B. Round bars: Cutting by bandsaw machine, peeling, grinding and turned, heat treatment, etc.
Corner of our factory:
