AISI D2 DIN 1.2379 JIS SKD11 Cold Work Mould Steel Plate High Wear Resistance
AISI D2 DIN 1.2379 JIS SKD11 Cold Work Mould Steel Plate High Wear Resistance
Specification
D2 / 1.2379 / SKD11 STEEL is a high carbon and chromium alloy tool steel, which has high hardness and wear resistance after heat treatment, and has strong hardenability and good dimensional stability.
1. Grades
| Chinese | American | German | Japanese |
| GB | AISI | DIN | JIS |
| Cr12Mo1V1 | D2 | 1.2379 | SKD11 |
2. Chemical Analysis
| Grades | C | Si | Mn | P | S | Cr | Mo | V | Co |
| 1.2379 | 1.5-1.6 | 0.1-0.4 | 0.15-0.45 | ≤0.003 | ≤0.030 | 11.0-12.0 | 0.6-0.8 | 0.9-1.1 | / |
| D2 | 1.4-1.6 | 0.3-0.5 | 0.30-0.50 | ≤0.030 | ≤0.030 | 11.0-13.0 | 0.7-1.2 | 0.8 | ≤0.6 |
| Cr12Mo1V1 | 1.4-1.6 | ≤0.6 | ≤0.6 | ≤0.030 | ≤0.030 | 11.0-13.0 | 0.7-1.2 | 0.5-1.1 | ≤1.0 |
| SKD11 | 1.4-1.6 | ≤0.4 | ≤0.6 | ≤0.030 | ≤0.030 | 11.0-13.0 | 0.8-1.2 | 0.2-0.5 | / |
3. Delivery Condition
Black surface/machined, annealing, hot rolled, cut 2/4 sides
4. Available Dimensions
| Shape |
Thickness/ Diameter (mm) |
Width (mm) |
Length (mm) |
| Flat bar | 60-200 | 155-810 | 3000-6000 |
| Round bar | 14-80 | / | 3000-6000 |
5. Heat Treatment
| Quenching13 | Tempering12 | ||||
| Heating Temperature/℃ | Cooling | Hardness/HRC | Heating Temperature/℃ | Cooling | Hardness/HRC |
| 980-1040 | Oil or air | 60-65 | 180-220 | Air | 60-64 |
| 1060-1100 | Oil or air | 60-65 | 510-540 | Air | 60-64 |
6. Characteristics
1) High wear resistance
2) High compressive strength
3) Good dimensional stability
4) Good processability
5) Good toughness
6) Excellent resistance to temper softening

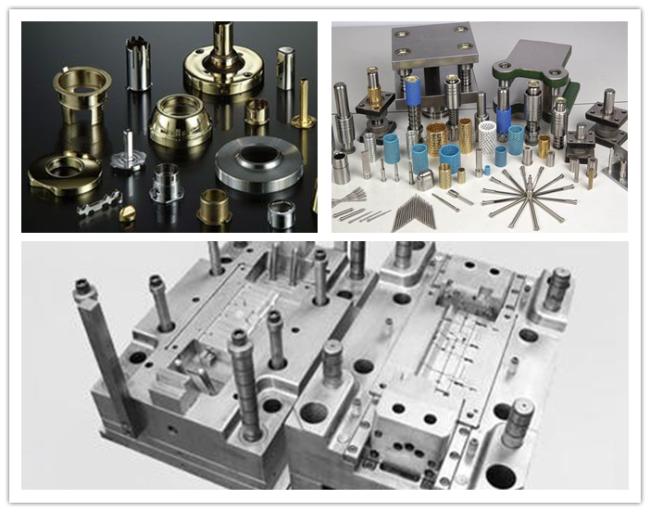

7. Application
1) Thin sheet with a thickness of not more than 2mm, high-efficiency blanking die, punching die and stamping die
2) Various scissors, inlaid blades, wood working blades
3) Thread rolling die and wear-resistant slider
4) Cold heading mould, thermosetting resin molding die
5) Deep drawing die, cold extrusion die

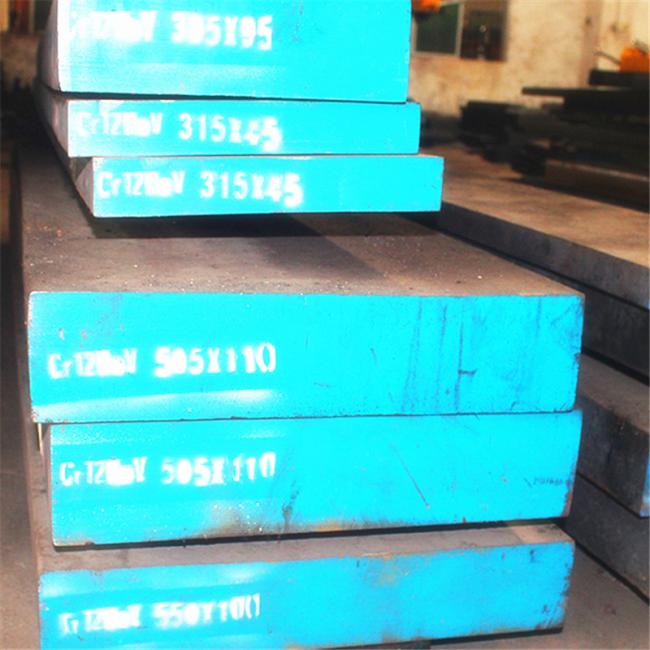

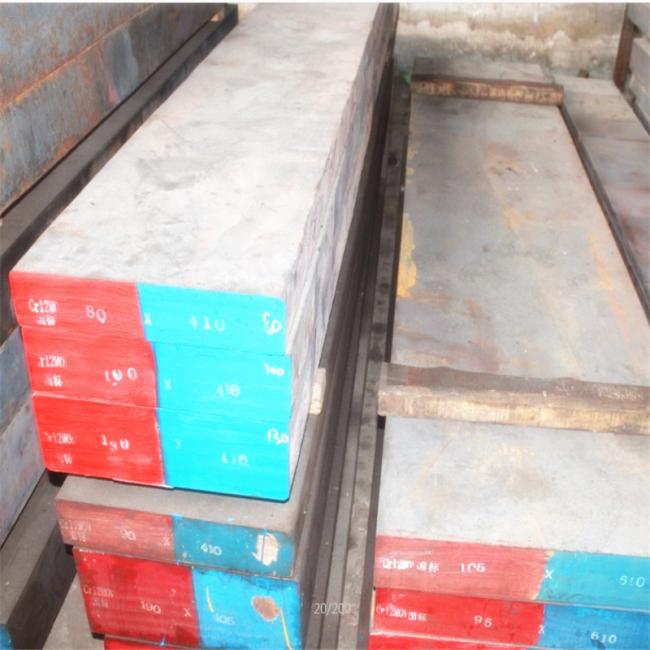

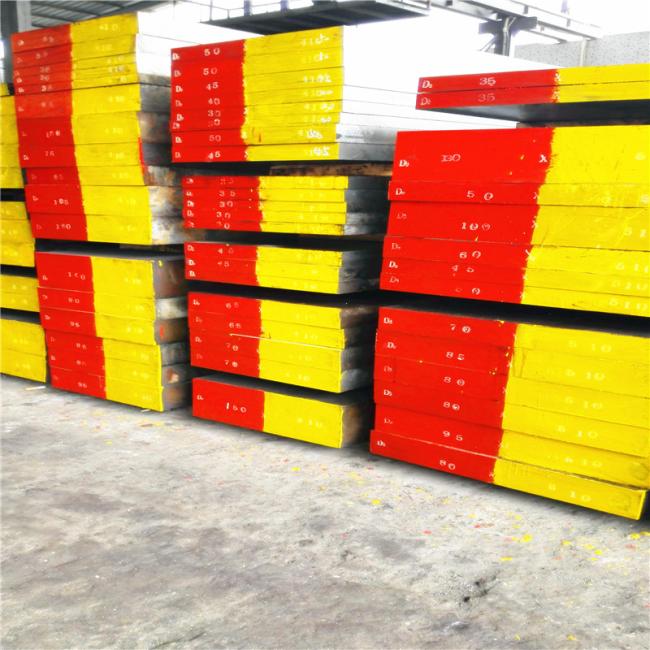

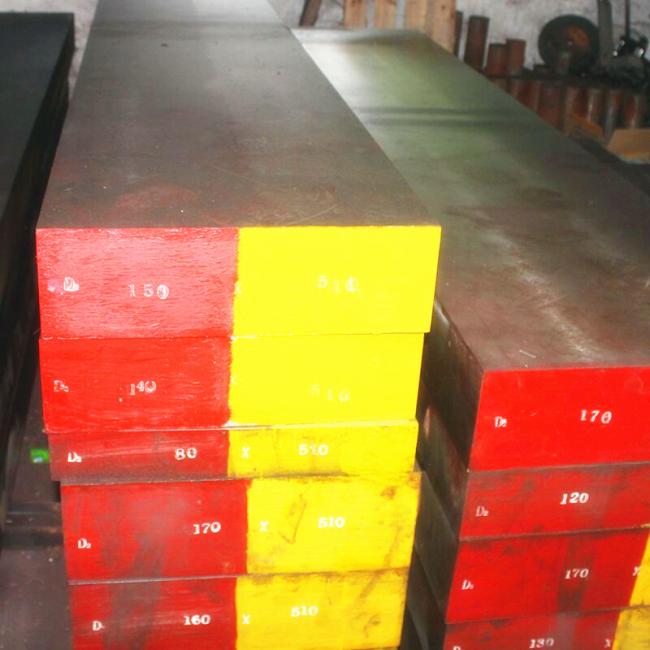

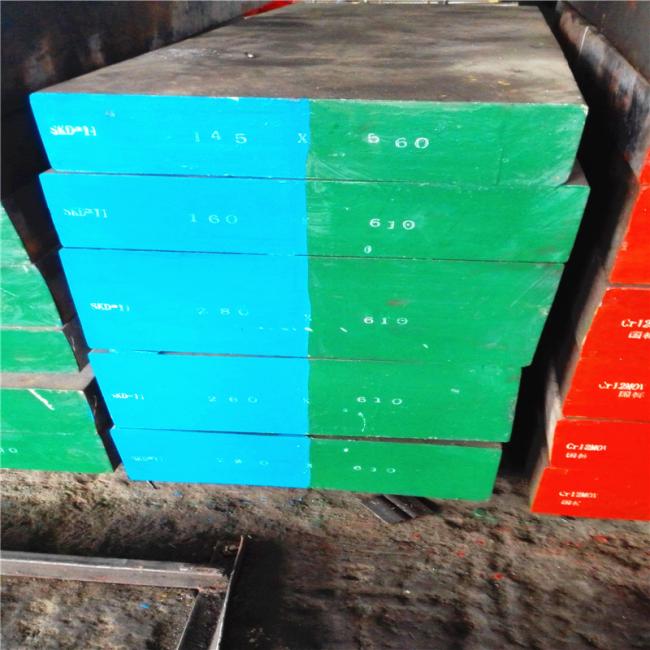

Picture Display

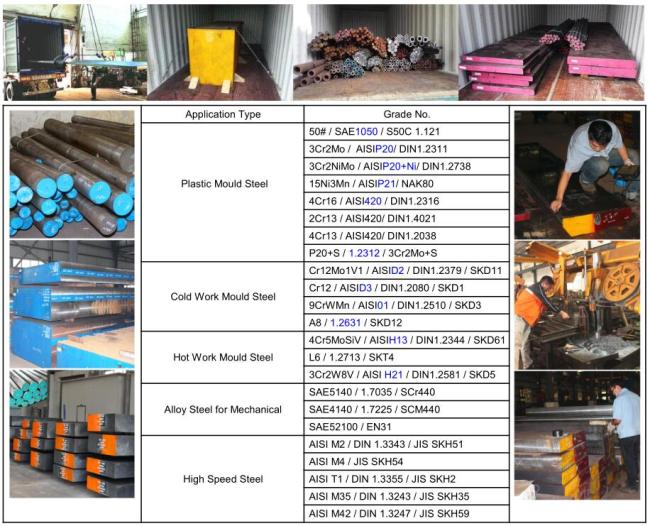

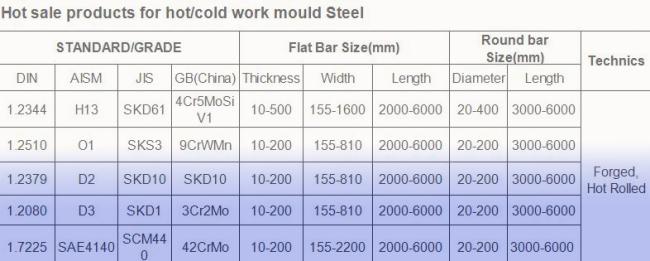

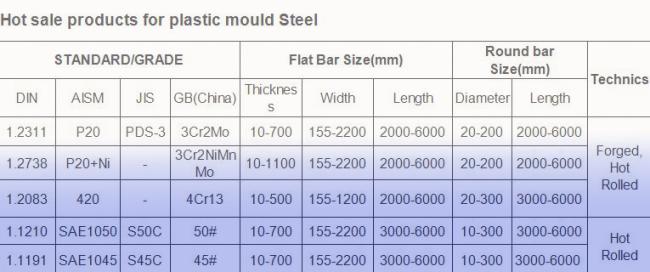

Main Products

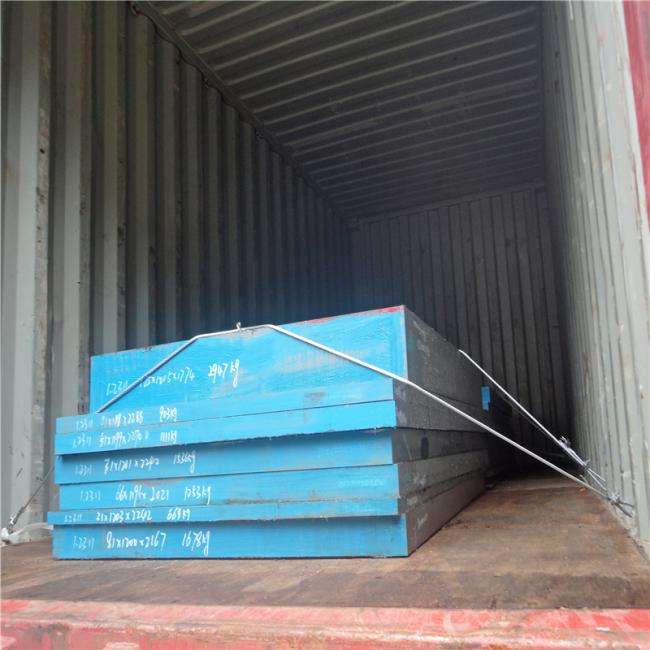

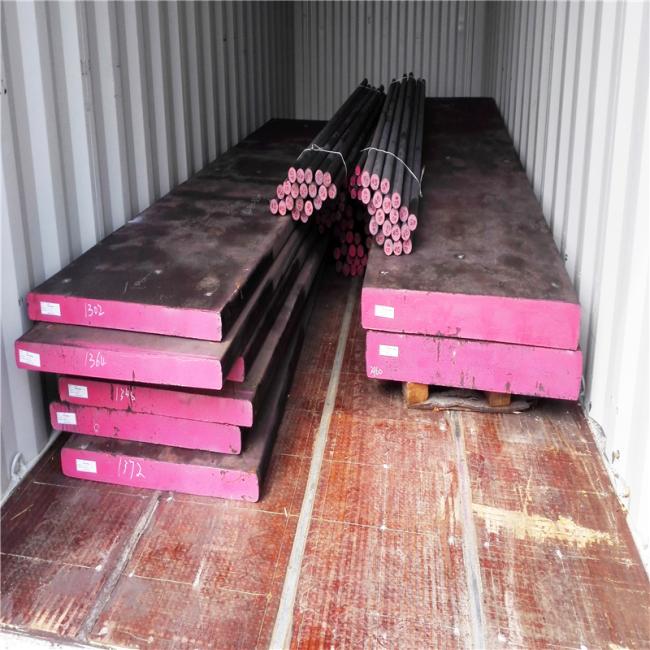

Packing
Nude or according to customers' requirment.

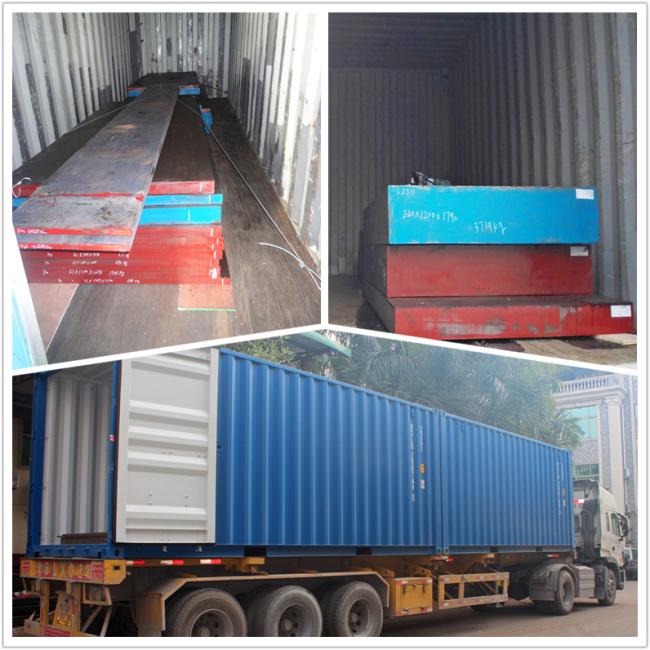

Shipment
1) For abundant stock, 15-20 days.
2) For customized products, 30-50 days.

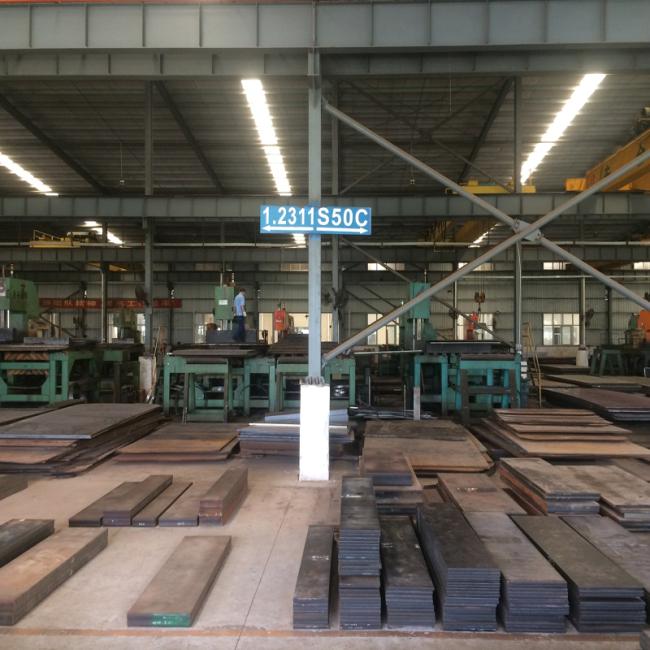

About Us
Guangzhou ChangFeng Steel Co., Ltd. is a professional special steel company, which specialized in this line in China since 2005. Our main products are Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel, Stainless Steel, Carbon Steel and Forged Block.
To ensure provide high quality products to customers, we have close cooperation with many Chinese first class special steel enterprises, including Baosteel Group, Dongbei Special Steel, Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng Special Steel, Daye Special Steel. We have thousand tons of stock materials in our own factory and also can provide processing services to customers. We are full of export experience for many years, the product covers America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and Middle-East.

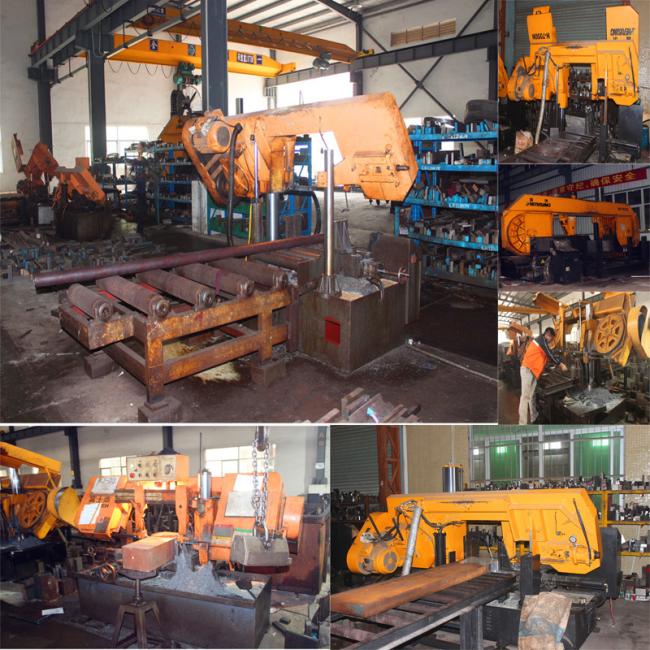

After years of development, the company has established a complete quality management and export service system. We have a group of experienced and competent elites and is capable of offering the best service to clients. Our company equips with large-sized Vertical saw machines, Horizontal saw machines, Milling machines, Grinding machines and other advanced equipments to provide customers with cutting and other processing services.
All the products should be inspected the metallographic analysis, hardness, ultrasonic flaw detection and other strict inspection processes, which meet the standards of DIN, AISI, JIS and GB to ensure their function and quality.
Our company keeps the principle of “sincerely cooperation, endless striving for perfection”. We desire to establish the long-term mutual beneficial and win-win relationship with clients all over the world.
FAQ
Q: Are you a manufacturer or merely a trader?
A: We are trading company act as exporting Steel Products with our own factory,
we can manufacture the products as in cutomer's requirement,wholesale and retail all kinds of domestic mould steel,the price we offered is very competitive compared with other agents.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as SGS, CE,ISO if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival. Third,the products we export are mainly from ShaGang group, WenFeng group, XingCheng group, DongTe group,DaYe and so on, the quality are certained.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don't have stock, the delivery lead time is about 30-50 days after receiving your prepayment or firm order.
Q: What is the payment term?
A:100% T/T or 30%T/T deposite prepaid, 70%Balance L/C
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
