Hot Rolled / Forged AISI 420 Plastic Mold Steel Sheet 1.2316 For Making Tool
Hot rolled / forged AISI 420 Mould Steel Sheet 1.2316 for Making Tool
AISI 420 Mould Steel Sheet 1.2316 for Making Tool
Product Description:
1. AISI 420, DIN 1.2316, JIS SUS420J2, 3Cr17NiMnMo tool steel
2. Hot rolled or Forged, condition annealing, black surface
3. Hardness: ≤ 255HBS;
4. Hot rolled technology: EAF+LF+VD
5. Ultrasonic test standard: SPE1921-GR3, CLASS D/D or E/E
| Standard | Grade | Chemical composition (%) | |||||||||
| C | Si | Mn | Cr | Mo | V | Ni | W | Cu | Ti | ||
| GB | 3Cr17NiMnMo | 0.32-0.42 | 0.80-1.20 | 0.20-0.50 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 | -- | -- | -- | -- |
| AISI | 420 | 0.30-0.40 | 0.80-1.20 | 0.20-0.40 | 4.75-5.50 | 1.25-1.75 | 0.80-1.20 | -- | -- | -- | -- |
| JIS | SUS420J2 | 0.35-0.42 | 0.80-1.20 | 0.25-0.50 | 4.80-5.50 | 1.00-1.50 | 0.80-1.15 | -- | -- | -- | -- |
| DIN | 1.2316 | 0.37-0.42 | 0.90-1.20 | 0.30-0.50 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 | -- | -- | ||
| Size of SUS420J2/1.2316 Mould Steel | |||
| Round bar | Diameter(mm) | Length (mm) | |
| Max:800 | Max: 9000 | ||
| Plate | Thickness(mm) | Width (mm) | Length (mm) |
| Max:800 | Max:1000 | Max:6500 | |
Applications:
1. Diecasting mould(mold, fixed block, upper die, jet nozzle, nitride thimble ).
2. Extrusion die(mold, supporting member, choke blocks).
3. Hot press die. (aluminum, magnesium, copper alloy)
4. Parts, such as cold cutting, overlap, hot shears, wearable parts.
5. Important parts for aviation industry.

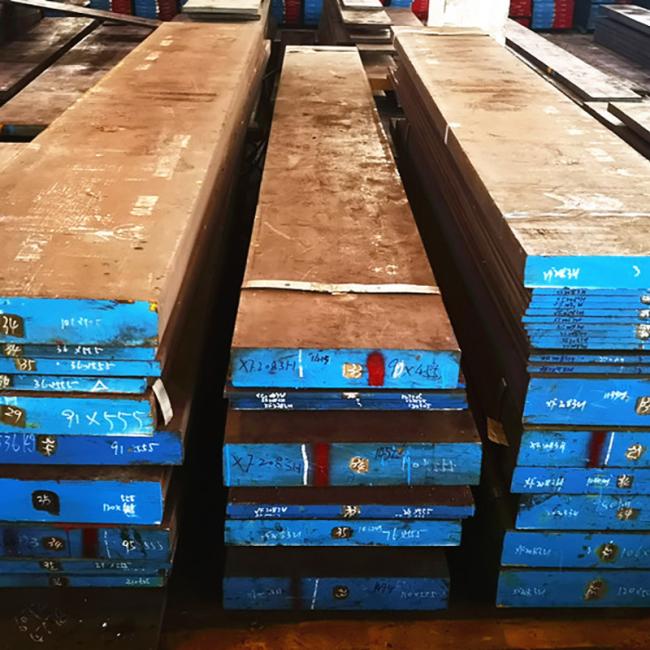

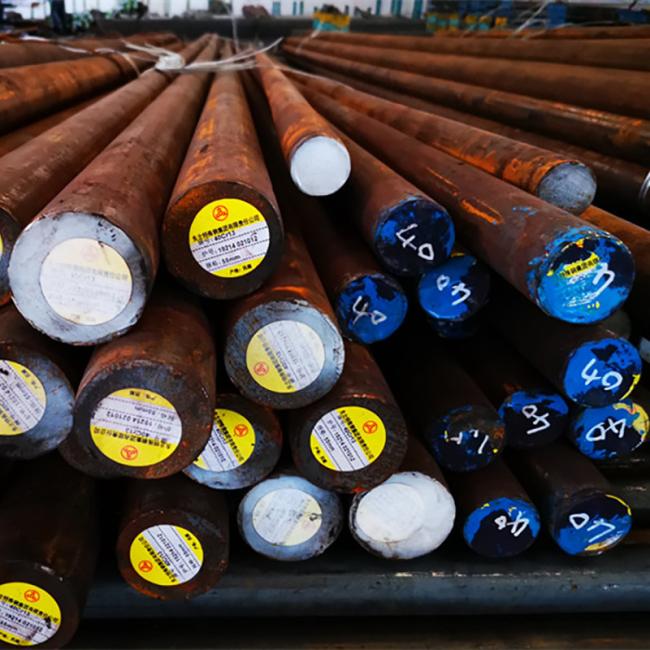

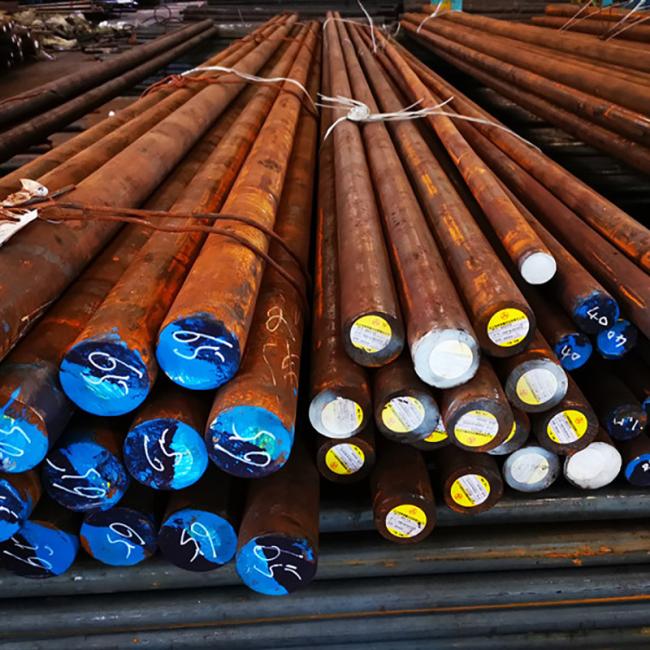

Pictures:
Changfeng Tool & Die Steel main product:
| STANDARD/GRADE of steel | Flat Bar Size(mm) | Round bar Size(mm) | Technics | ||||||
| DIN | AISM | JIS | GB(China) | Thickness | Width | Length | Diameter | Length | |
| 1.121 | SAE1050 | S50C | 50# | 10-450 | 155-2200 | 2000-12000 | Forged, Hot Rolled | ||
| 1.2311 | P20 | PDS-3 | 3Cr2Mo | 10-460 | 155-2200 | 2000-10000 | 20-200 | 2000-6000 | |
| 1.2738 | P20+Ni | - | 3Cr2NiMnMo | 21-300 | 155-2200 | 2000-8000 | 20-200 | 2000-6000 | |
| 1.2379 | D2 | SKD10 | SKD10 | 10-200 | 155-810 | 2000-6000 | 14-80 | 3000-6000 | |
| 1.2080 | D3 | SKD1 | 3Cr2Mo | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 | |
| 1.2083 | 420 | - | 4Cr13 | 10-500 | 155-1200 | 2000-6000 | 12-300 | 3000-6000 | |
| 1.2344 | H13 | SKD61 | 4Cr5MoSiV1 | 10-500 | 155-1600 | 2000-6000 | 16-400 | 3000-6000 | |
| 1.2510 | O1 | SKS3 | 9CrWMn | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 | |
| 1.7225 | SAE4140 | SCM440 | 42CrMo | 10-280 | 155-2200 | 2000-6000 | 16-450 | 3000-6000 | |
Loading picture:
Port of loading: Shenzhen, China
Terms of Payment
30% deposit, balance by L/C at sight or T/T before shipment
About Us
Guangzhou Changfeng Steel Co., Ltd. is a professional special steel company, which specializing in this line in China since 2005. Our main products are Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel, Stainless Steel, Carbon Steel and Forged Block.
To ensure provide high quality products to customers, we have close cooperation with many Chinese first class special steel enterprises, including Baosteel Group, Dongbei Special Steel, Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng Special Steel and Daye Special Steel.
