1.7225 SAE4140 SCM440 42CrMo4 Engineering Alloy Steel Bar High Temperature Strength
1.7225/SAE4140/SCM440/42CrMo4 Alloy Steel Bar for mechanical
Introduction
42CrMo steel is an ultra-high strength steel with high strength and toughness, good hardenability, no obvious temper brittleness, high fatigue limit and multiple impact resistance after quenching and tempering, and good low temperature impact toughness.
Steel Grade
| Chinese | American | German | Japanese | ||||||
| GB | AISI | DIN | JIS | ||||||
| 42CrMo | SAE4140 | 1.7225 | SCM440 | ||||||
Chemical composition%
| Grades | C | Si | Mn | P | S | Cr | Mo | Cu | Ni |
| 4140 | 0.38-0.45 | 0.17-0.37 | 0.5-0.8 | ≤0.035 | ≤0.035 | 0.9-1.2 | 0.15-0.25 | ≤0.3 | ≤0.035 |
| 42CrMo | 0.38-0.45 | 0.17-0.35 | 0.5-0.8 | ≤0.035 | ≤0.035 | 0.9-1.2 | 0.15-0.25 | ≤0.03 | ≤0.03 |
| 440 | 0.38-0.43 | 0.15-0.35 | 0.6-0.85 | ≤0.03 | ≤0.03 | 0.9-1.2 | 0.15-0.3 | ≤0.3 | ≤0.25 |
Heating treatment
| Quenching | Tempering | ||||||||
| Heating Temperature/ºC | Cooling | Hardness/HRC | Heating Temperature/ºC | Cooling | Hardness/HRC | ||||
| 820-840 | Oil | ≥53 | 450-650 | Air | 25-40 | ||||
Available Sizes
| steel plate |
Thickness | 20-120mm | |||||||
| Width | 2200mm | ||||||||
| Length | 4000-10000mm | ||||||||
| round bar |
Diameter | 16-450mm | |||||||
| Length | 4000-10000mm | ||||||||
Features
1) Weldability suffers with increasing chromium content;
2) High temperature strength and high pressure hydrogenation properties are promoted by chromium and molybdenum;
3) Molybdenum significantly reduces temper brittleness;
4) Chromium renders steel oil hardenable and increase hardenability;
5) Chromium molybdenum high tensile steel with yield strength of 550N/mm2
Applications
1) Suitable for manufacturing requirment a certain strength and toughness of large and medium-sized plastic mold, such as locomotive traction with the big gear, the supercharger drive gear, pressure vessle, rear axle, gear load connecting rod and a spring clip
2) Used to under 2000m deep well of oil drill pipe joint and the fishing tool
3)Used for bending machine mould
More product pictures
Strictly Quality Control

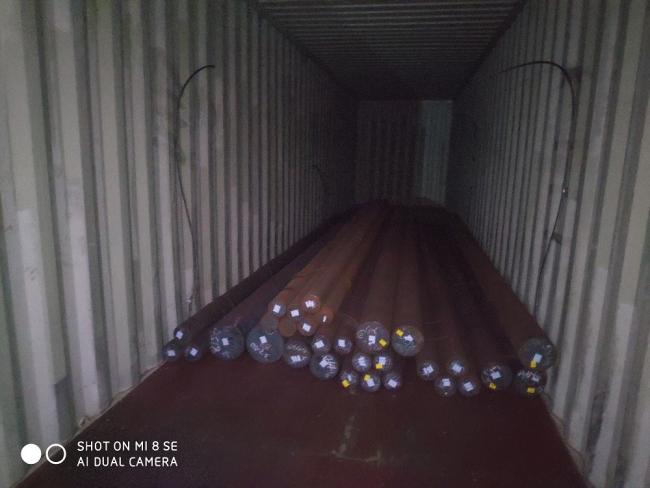

Loading Photo
