D2 1.2379 SKD11 Alloy Steel Plate For Cold Working Mold With Thickness 8-80mm
D2 1.2379 SKD11 Alloy Steel For Cold working mold With Thickness 8-80mm
Product Description
| Size of Steel grade 1.2379 mechanical properties | |||
| Round bar | Diameter(mm) | Length (mm) | |
| Max:120 | Max: 6000 | ||
| Plate | Thickness(mm) | Width (mm) | Length (mm) |
| Max:80 | Max:600 | Max:6000 | |
| The specification can be customized. | |||
Chemical Composition (%)
| C | Si | Mn | P | S | Cr | Mo | V |
| 1.4-1.6 | 0.30-0.5 | 0.3-0.5 | ≤0.030 | ≤0.030 | 11-13 | 0.7-1.2 | ≤0.80 |
Introduction
With high wear-resisting cold working die steel, SKD11 steel has the properties of high strength and high wear resistane, replace a new generation imported common cold working die steel with high odburability high wear-resisting.
Key words:
DC53, 1.2990, GS-821, ASSAB 88, SLD-MAGIC, AISI D2, W.-Nr. 1.2379
Recommend heat treatment:
| Quenching | Tempering | ||||||
| Heating temperature/ºC | Cooling way | Hardness (HRC) | Tempering temperature /ºC | Tempering number | Hardness (HRC) | ||
| First preheating | Second preheating | Last heating | |||||
| 600-650 | 800-850 | 1020-1040 | Air Cooling | 61-63 | 500-560 | 2 | ≥58 |

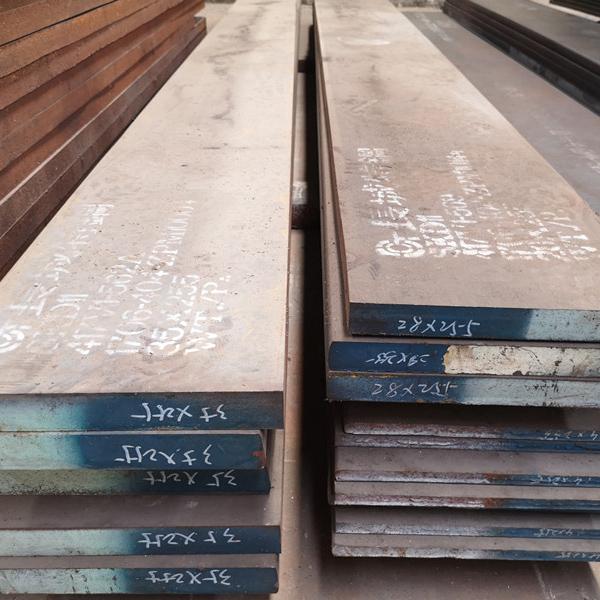

Products show:
Cold Work Alloy Tool Steel for Cutters D2 SKD11 1.2379 round & flat bar
![]()
