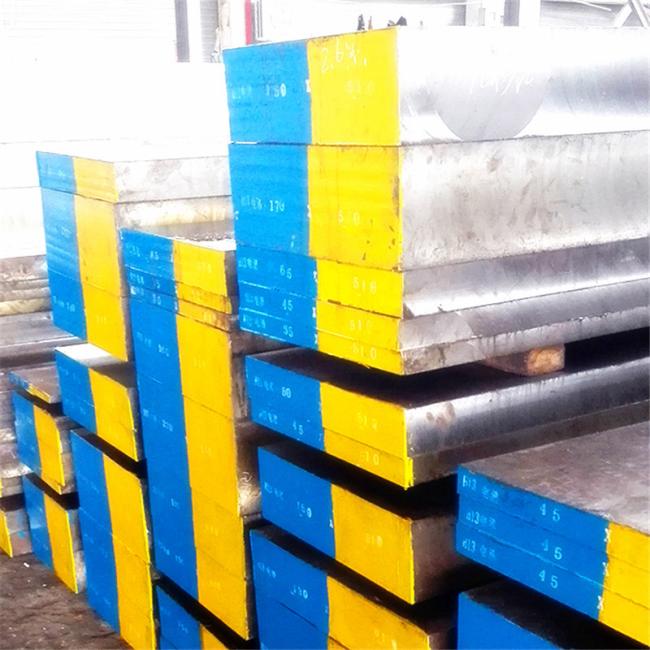

Black Alloy Steel Sheet For Hot Work Die Casting Mould With Width 205-610mm
Price:
To be negotiated
MOQ:
5T
Delivery Time:
15-20days
Brand:
Changfeng
Product Description
1.2344/H13/SKD61 Alloy STEEL Plate for die casting mould With Width 205-610mm
Characteristics of AISI H13 Alloy Steel Plate
1) Cold and hot fatigue resistance, strong ability to resist crack.
2) Electroslag remelting steel, high purity, good resistance to dissolve.
3) Organizational structure of uniform, better heat resistance with good toughness, high temperature resistance metal erosion.
4) Good resistance to high temperature tempering performance, hardness steady working under 600ºC, dimensional accuracy stability durability.
AISI H13 is a chromium-molybdenum-vanadium hot work tool steel as per ASTM A681 standard.It has good resistance to abrasion at low and high temperature,good toughness, and good resistance to thermal fatigue cracking (also known as heat checking).H13 provides excellent machinability with constant hardness during production activities,and also has excellent through-hardening properties and very limited distortion during hardening.
Grades
| Chinese | American | German | Swedish | Japanese |
| GB | AISI | DIN | ASSAB | JIS |
| 4Cr5MoSiV1 | H13 | 1.2344 | 8407 | SKD61 |
Chemical Composition (%)
| C | Si | Mn | P | S | Cr | Mo | V |
| 0.35-0.40 | 1.00-1.20 | 0.40-0.60 | ≤0.015 | ≤0.003 | 4.80-5.20 | 1.20-1.40 | 0.80-1.00 |
Hardness
| Annealing hardness | Quenching hardness | Tempering hardness |
| ≤230HB | 51-55HRC | 46-50HRC |
Technical service
1) Die vacuum heat treatment and die surface treatment (N-O,C-N, carburize and nitridation surface treatment).
2) Black surface, annealing, hot rolled/forged, EAF/ESR, 2 or 4 sides cutting
Heat Treatment
| Heating temperature | Cooling way | Hardness (HRC) | Tempering temperature /ºC |
Tempering number | Hardness (HRC) |
||
| First preheating | Second preheating | Last heating | |||||
| 500- 600 |
820- 860 |
1010- 1040 |
Oil cooling | 53-55 | 560-620 | 2 | 50-46 |
Available Size (mm)
| Shape | Thickness/ Diameter |
Width | Length | |
| Round Bar | 16-520 | / | 3000-6000 | |
| Flat Bar | 16-260 | 205-610 | 3000-6000 | |
| Forged | Round Bar | 150-450 | / | 2000-6000 |
| Block | 100-500 | 600-1000 | 2000-6000 | |
Changfeng Tool & Die Steel Hot Sale product info:
| STANDARD/GRADE | Flat Bar Size(mm) | Round bar Size(mm) | Technics | ||||||
| DIN | AISM | JIS | GB(China) | Thickness | Width | Length | Diameter | Length | |
| 1.121 | SAE1050 | S50C | 50# | 10-450 | 155-2200 | 2000-12000 | Forged, Hot Rolled | ||
| 1.2311 | P20 | PDS-3 | 3Cr2Mo | 10-460 | 155-2200 | 2000-10000 | 20-200 | 2000-6000 | |
| 1.2738 | P20+Ni | - | 3Cr2NiMnMo | 21-300 | 155-2200 | 2000-8000 | 20-200 | 2000-6000 | |
| 1.2379 | D2 | SKD10 | SKD10 | 10-200 | 155-810 | 2000-6000 | 14-80 | 3000-6000 | |
| 1.2080 | D3 | SKD1 | 3Cr2Mo | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 | |
| 1.2083 | 420 | - | 4Cr13 | 10-500 | 155-1200 | 2000-6000 | 12-300 | 3000-6000 | |
| 1.2344 | H13 | SKD61 | 4Cr5MoSiV1 | 10-500 | 155-1600 | 2000-6000 | 16-400 | 3000-6000 | |
| 1.2510 | O1 | SKS3 | 9CrWMn | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 | |
| 1.7225 | SAE4140 | SCM440 | 42CrMo | 10-280 | 155-2200 | 2000-6000 | 16-450 | 3000-6000 |
|
