4Cr13 / 420 / 1.2083 / S136 Stainless Steel Plate Machined Surface Treatment
4Cr13/420/1.2083/S136 Stainless Steel plate of Special Tool Steel
1.2083/420 stainless tool steel is ideally suited for plastic moulds, for acid aggressive plastics,PVC or acetates, and can be used with plastics containing abrasive fillers. It also is suitable to produce components for mediacal and optical applications.
Grades Comparison
| Germany(DIN) | Japan(JIS) | USA(AISI) | Sweden(SS) | China(GB) |
| 1.2083 | SUS420J2 | 420 | S136 | 4Cr13 |
Chemical Composition(%)
| Steel Grade | Chemical Composition(%) | |||||
| C | Si | Mn | P | S | Cr | |
| 1.2083 | 0.36-0.42 | ≤1.00 | ≤1.00 | ≤0.030 | ≤0.030 | 12.50-13.50 |
| SUS420J2 | 0.26-0.35 | ≤1.00 | ≤1.00 | ≤0.035 | ≤0.030 | 12.00-14.00 |
| 420 | 0.26-0.40 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 12.00-14.00 |
| S136 | 0.38 | 0.9 | 0.5 | ≤0.040 | ≤0.030 | 13.6 |
| 4Cr13 | 0.36-0.45 | ≤0.60 | ≤0.80 | ≤0.035 | ≤0.030 | 12.00-14.00 |
Heat Treatment
Annealing : 810 - 830 °C
Hardness after annealing : Max230 HB
Hot forming : 1050 - 850 °C
Hardening: 970 - 990 °C
Quenching media : Oil, Vacuum
Hardness after quenching : 52 - 56 HRC
Hardness after tempering:
| Tempering °C | 100 |
200 |
300 |
400 |
HRC |
54 |
52 |
52 |
52 |
Features
1. Highly quality of corrosion resistance
2. Pre-hardened delivery save forming mould time
3. Good anti-rusty capacity and easy for welding
4. Excellent polish ability and wear-resisting with high toughness
5. Convenient heat treatment for quenched&tempered steel, without deformed

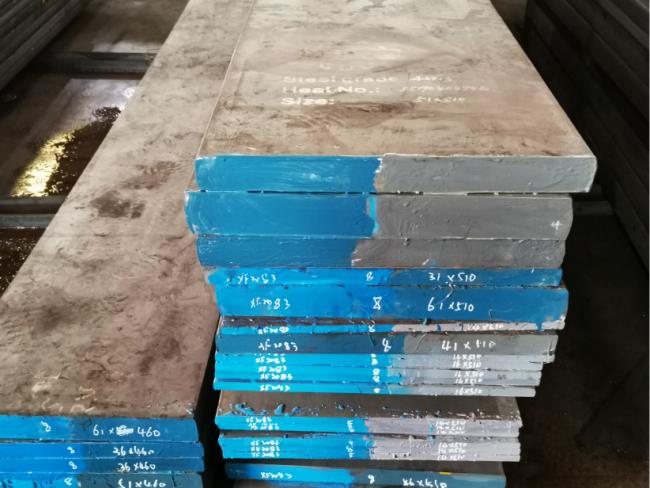

Product Photo
Strict Quality Control
Loading Photo
Company Profile
Guangzhou Changfeng Steel Co.,LTD is an export agent company of Baosteel Group special steel products, which mainly sells plastic die steel, hot work die steel, cold work die steel, alloy structural steel, bearing steel, tool steel, stainless teel, carbon steel, etc. We also act on behalf of exporting steels of mainly steel factories in China, including Shagang group, Wenfeng group, Xingcheng group, Dongte group, Daye and so on. Changfeng is full of export experience to the market all over the world, such as America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and Middle-East.
Changfeng has a lot of experienced and competent elites and is capable of offering the best service after years of development. Our company equips with large-sized Vertical saw machines, Horizontal saw machines, Milling machines, Grinding machines and other advanced equipments to provide customers with cutting and other processing services. Our all products should be inspected the metallographic analysis,hardness, ultrasonic flaw detection and other strict inspection processes, which meet the standards of DIN, AISI,JIS and GB to ensure their function and quality.
Changfeng keeps the principle of " sincerely cooperation, endless striving for perfection" to establish long-term and win-win relationship with importers all over the world.
