Prehardened Tool Steel 1.2344 H13 SKD61 For HOT WORK Die Dia. 16 - 200mm
Price:
Negotiable
MOQ:
5T
Delivery Time:
7-15 days
Brand:
CF
Product Description
Prehardened Tool Steel 1.2344 H13 SKD61 For HOT WORK Die Dia. 16 - 200mm
1.2344 H13 SKD61 Hot work tool steel with high level of resistance to thermal shock and fatigue, excellent hot tensile strength properties, high hot wear resistance, good machinability and polishability, fine grain size with high level toughness, dimensional stability, extra fine structure without grain boundary carbide, nitridable, contains low P and S alloys, admits water cooling. This grade can be produced on request by the process EFS, ESR or VAR.
| Equivalent Grades | Inrtoduction | ||||||
| GB | DIN | AISI | JIS | ASSAB | H13 is hot work die steel, the implementation of standard GB / T1299-2000. ; Grade 4Cr5MoSiV1; alloy tool steel referred to as the joint steel, carbon steel is based on the addition of alloying elements and the formation of steel. Among them, including: measuring tool with cutting tools, impact resistance steel, cold work die steel, hot die steel, non-magnetic die steel, plastic mold steel. | ||
| 4Cr5MoSiV1 | 1.2344 | H13 | SKD61 | 8407 | |||
| Available Size (mm) | |||||||
| Flat Bar Size (mm) | Round bar Size(mm) | ||||||
| Thickness | Width | Length | Diameter | Length | |||
| 16-260 | 205-610 | 3000-6000 | 16-200 | 3000-6000 | |||
| Chemical Composition(%) | |||||||
| C | Si | Mn | P | S | Cr | Mo | V |
| 0.30-0.40 | 1.20-1.60 | 0.30-0.50 | ≤0.015 | ≤0.003 | 3.5-4.5 | 0.80-1.20 | 0.80-1.00 |
| Recommend Heat Treatment | |||||||
| Quench | Temper | ||||||
| Heating temperature/ºC | Cooling way | Hardness (HRC) | Tempering temperature | Tempering number | Hardness | ||
| First preheating | Second preheating | Last heating | /ºC | (HRC) | |||
| 500-600 | 820-860 | 1010-1060 | Oil Cooling | 53-55 | 560-620 | 2 | 50-47 |
| 1. Characteristics | |||||||
| a,High resistance of tempering softenng properties(the using temperanture can improve 50ºC than that of H13 steel). | |||||||
| b,Excellent Thermal Stability:Heat preservation in the long time of 620ºC,the hardness is always higher than that of H13,and still maintain in 35HRC above. | |||||||
| c,Excellent thermal fatigue resistance:The thermal fatigue resistance is better than that of H13 steel. | |||||||
| 2. Applications | |||||||
| Forging die,casting die,hot squeezing die | |||||||
| 3. Technical service | |||||||
| Die vacuum heat treatment and die surface treatment(N-O,C-N,carburize and nitridation surface treatment). | |||||||
| 4. Terms of payment | |||||||
| 30% deposit T/T and the balance by L/C at sight, or T/T | |||||||
| 5. Delivery condition | |||||||
| For abundant stock, 15-20 days.For customized products, 30-50 days. | |||||||
| Factory Hardness: Annealing 235 ~ 205 HB, quenching ≥50 HRC | |||||||
Our service
Our company have introduced large-sized vertical saw machines, horizontal saw machines, milling machines, grinding machines and other advance equipments, we can export our products by wholesales
and retail sales, whole plate or strip is available. All our products can meet the standards of DIN, AISI, JIS and GB, all the material should be inspected the ultrasonic, hardness and others strict inspection
process before the shipment.
a, Sizes, materials and others are all at your requirements and can be changed;
b, Price varies on materials, dimensions, finish craft and different payments;
c, We are direct manufacture in machinery manufacturing work with experience of several decades;
d, Detail production design will be made according to information you offered;
e, We have adequate inventory, so that we can quick delivery;
f, The most important is that we have advanced equipment.

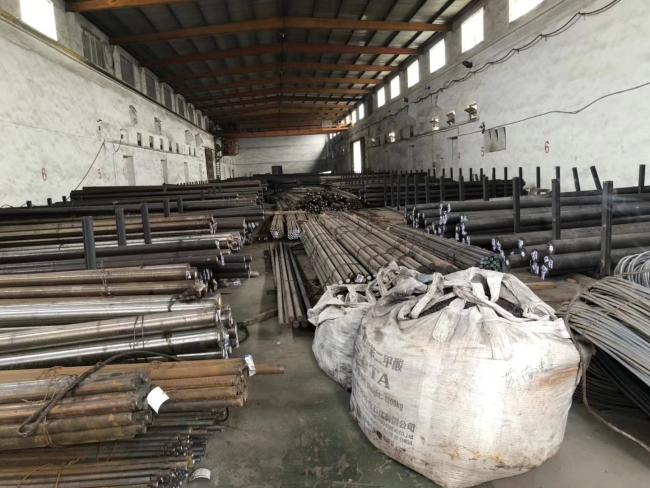

Product show
