S50C Plastic Mould Steel Base For Injection Plastic Mold With PW 300MM
S50C hot rolled plastic mould steel Base for injection plastic mold with PW 300MM
Application:
1. Grade S50C carbon steel is use for making injection plastic mould, mould frame and some mid-range machine.
2. Grade S50C carbon steel is widely used in construction, bridges, electricity station, ship building, boiler, and so on, alloy steel plate also can be made according to the customers required.
3. For plastic moulds, cold work die and mould base as well as constructional part
| Main Technique Parameters | |
| Cavity/Core Material |
S50C/50#/SAE1050 |
| Structure | Double color injection mould, Solid Mould, Insert Mould, Mould with Slide, Mould with Lifter |
| Runner System | Hot runner, Cold runner |
| Cavity | Single cavity, multi cavity by requested |
| Finish | Corrosion word, Mirror finish, Brushed |
| Longevity | 0.5-1 million shots |
| Mould standard | HASCO, DME, MISUMI, or by requested etc. |
| Software | CAD, Pro-E, UG, etc |
| Tolerance | ± 0.05mm |
| Main Technique | Milling, Grinding, EDM, Wire-cutting, Engraving, CNC, and 2.5 Dimension test, etc. |
| Production time | 2-7 weeks, depends on mould structure |
| Packing | Wooden case, PE, or by requested |
Specifications
S50C/SAE1050 Hot Rolled Carbon Steel Round Bar
1. Grade: S50C, 50#, SAE1050, DIN1.1210
2. the quality is the best
Standard: AISI, ASTM, BS, DIN, GB, JIS
Place of Origin: China
Technique: Hot Rolled
Chemical composition(%)
| C | Mn | P | S |
| 0.48-0.55 | 0.50~0.8 | ≤0.035 | ≤0.35 |
Delivery days:
For abundant stock, 15-20 days.
For customized products, 30-50 days.

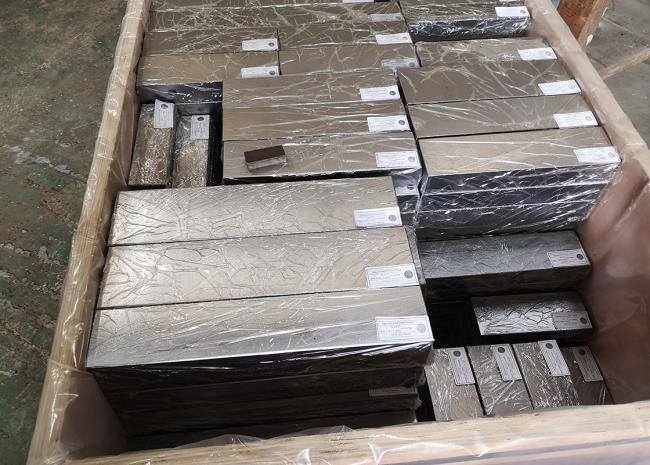

Package: We provide standard export packing or according to customers' request.
FAQ:
Q: Are you a manufacturer or merely a trader?
A: We are trading company act as exporting Steel Products with our own factory,
we can manufacture the products as in cutomer's requirement,wholesale and retail all kinds of domestic mould steel,the price we offered is very competitive compared with other agents.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as SGS, CE,ISO if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival. Third,the products we export are mainly from ShaGang group, WenFeng group, XingCheng group, DongTe group,DaYe and so on, the quality are certained.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
Changfeng Tool & Die Steel Hot Sale product info:
| STANDARD/GRADE | Flat Bar Size(mm) | Round bar Size(mm) | Technics | ||||||
| DIN | AISM | JIS | GB(China) | Thickness | Width | Length | Diameter | Length | |
| 1.121 | SAE1050 | S50C | 50# | 10-450 | 155-2200 | 2000-12000 | Forged, Hot Rolled | ||
| 1.2311 | P20 | PDS-3 | 3Cr2Mo | 10-460 | 155-2200 | 2000-10000 | 20-200 | 2000-6000 | |
| 1.2738 | P20+Ni | - | 3Cr2NiMnMo | 21-300 | 155-2200 | 2000-8000 | 20-200 | 2000-6000 | |
| 1.2379 | D2 | SKD10 | SKD10 | 10-200 | 155-810 | 2000-6000 | 14-80 | 3000-6000 | |
| 1.2080 | D3 | SKD1 | 3Cr2Mo | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 | |
| 1.2083 | 420 | - | 4Cr13 | 10-500 | 155-1200 | 2000-6000 | 12-300 | 3000-6000 | |
| 1.2344 | H13 | SKD61 | 4Cr5MoSiV1 | 10-500 | 155-1600 | 2000-6000 | 16-400 | 3000-6000 | |
| 1.2510 | O1 | SKS3 | 9CrWMn | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 | |
| 1.7225 | SAE4140 | SCM440 | 42CrMo | 10-280 | 155-2200 | 2000-6000 | 16-450 | 3000-6000 |
|

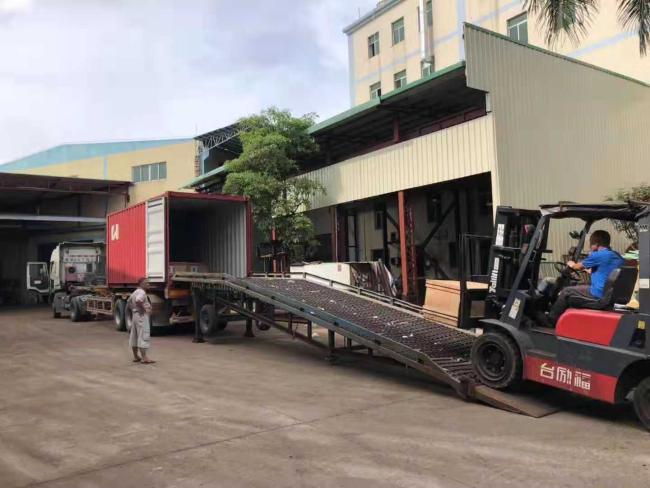

Product show
