AISI Standard Stainless Steel Round Rod 1.2316 1.2083 420 4Cr13 Abrasion Resistance
Alloy Tool Steel Bar of Stainless Steel 1.2316 1.2083 420 4Cr13
1.2083 mould steel is a kind of plastic mould steel with high chromium element which is up to 13%.1.2083 mould steel has good wear resistance and good polishing, it widely used for acid proof plastic mold.
Similar grade:DIN 1.2083/X42Cr13/X40Cr14, AISI 420, JIS SUS420J2,Gost 4Cr13
1,Equivalent grades:
| GB | DIN | AISI | JIS |
| 4Cr13 | 1.2083 | 420 | S136 |
2,Chemical composition (%)
| Steel Grade | Chemical Composition(%) | |||||
| C | Si | Mn | P | S | Cr | |
| 1.2083 | 0.36-0.42 | ≤1.00 | ≤1.00 | ≤0.030 | ≤0.030 | 12.50-13.50 |
| SUS420J2 | 0.26-0.35 | ≤1.00 | ≤1.00 | ≤0.035 | ≤0.030 | 12.00-14.00 |
| 420 | 0.26-0.40 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 12.00-14.00 |
| S136 | 0.38 | 0.9 | 0.5 | ≤0.040 | ≤0.030 | 13.6 |
| 4Cr13 | 0.36-0.45 | ≤0.60 | ≤0.80 | ≤0.035 | ≤0.030 | 12.00-14.00 |
3,Features:
1) Excellent corrosion resistance;Excellent abrasion resistance and elasticity;
2) Excellent high-temperature abrasion resistance;
3) medium toughness,dimensionally stable,high compressive strength;
4,Application:
1) highly stressed cutting and punching tools for thin sheets;
2) stone processing tools and knives for paper and plastics,shear knives
3) Chemical Resistance plastic mold,Corrosion of thermoplastic plastics;
5,Heat Treatment:
| Annealing : | 810 - 830 °C |
| Hardness after annealing : | Max.230 HB |
| Stress relieving: | Approx.650 °C |
| Hot forming: | 1050 - 850 °C |
| Hardening: | 970 - 990 °C |
| Quenching media: | Oil, Vacuum |
| Hardness after quenching: | 30 - 36 HRC |
6,Hardness:Prehardened 30-36 HRC
7,Available size(mm):
| Flat Bar Size(mm) | Round bar Size(mm) | |||
| Thickness | Width | Length | Diameter | Length |
| 10-300 | 155-2200 | 2000-6000 | 20-300 | 3000-6000 |
8,Package:We provide standard export packing or according to customers' request.
9,Delivery:For abundant stock, 7-15 days.For customized products, 30-50 days
Strict Quality Control

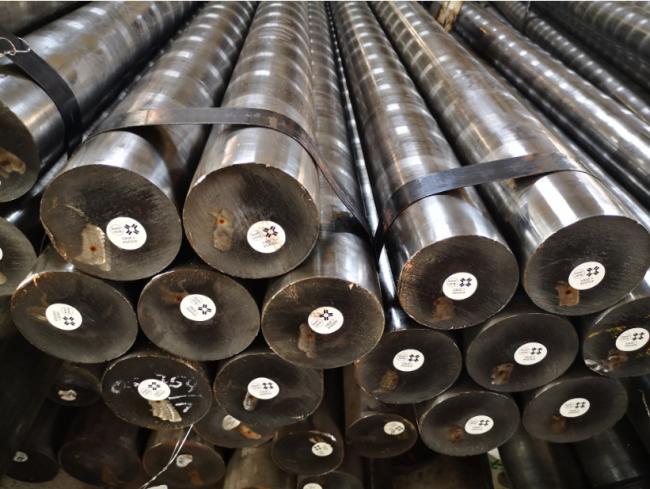

Loading Photo
