Hot Work 1.2344 Tool Steel Black Surface Treatment Length 3000-6000mm
Forged Steel Round Bar of 1.2344 H13 SKD61 diameter 70-280mm
1.2344 H13 SKD61 4Cr5MoSiV1 Flat Bar Round Bar Tooling Steel belong to multi functional Machinery chromium hot work tool steels which are much widely using on hot and cold work tooling applications. 1.2344 H13 SKD61 4Cr5MoSiV1 tool steel is classified as range H steels by the AISI classification system range.This range of steels start from H1 to H19.
1. Similar Grade
| GB | DIN | AISI | JIS | ASSAB |
| 4Cr5MoSiV1 | 1.2344 | H13 | SKD61 | 8407 |
2. Available Size(mm)
| Diameter | Length |
| 70-280 | 3000-6000 |
3. Chemical Composition(%)
| Grade | C | Si | Mn | P | S | Cr | Mo | V |
| H13 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| SKD61 | 0.32-0.42 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| 1.2344 | 0.38-0.42 | 0.80-1.20 | 0.30-0.50 | ≤0.015 | ≤0.020 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 |
| 4Cr5MoSiV1 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
4. Features
A. Good heat-resistance and fatigue-resistance.
B. Good cutting and polishing performance.
5. Application
Used for making hot squeeaing mould,forging mould and embedded lump.
A. Suitable to manufacturing aluminum, zinc, copper alloy extrusion die, die casting, hot forging die and hot shear blades, etc.
B. Extrusion mold of aluminum and magnesium, die-casting mold, especially adapt to the mold in large and complicated form.
C. Extrusion mold of copper alloy, die-casting mold
6. Heat Treatment
Quenching:
The first stage of preheating:500 ~ 550 ºC
The second stage of preheating:750 ~ 800 ºC
Cooling or high pressure gas cooling, 100 ~ 150 ºC in the tempering furnace.
Tempering:
Preheat:300 ~ 350 ºC
Tempering heating:550 ~ 680 ºC
Air cooling to room temperature, tempering three times.Quenching temperature 1000 ~ 1050 degrees, 50 to 55 HRC hardness, heat treatment deformation is small, can be nitriding surface nitriding processing, processing of products has better wear resistance.
67 Hardness
Annealing 235 ~ 205 HB
Quenching ≥50 HRC

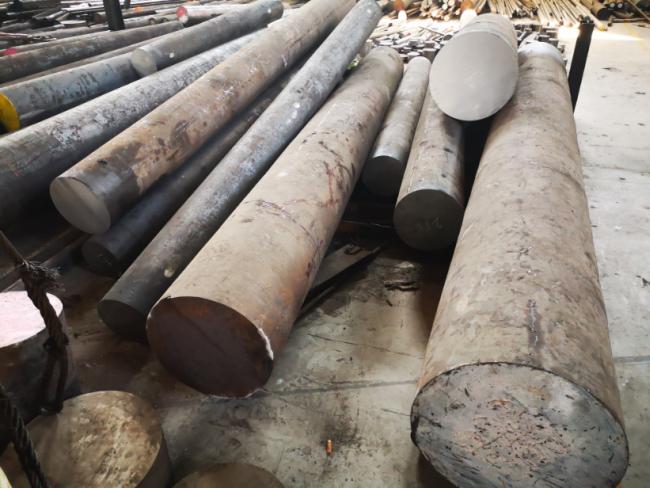

Product Photo
Strict Quality Control

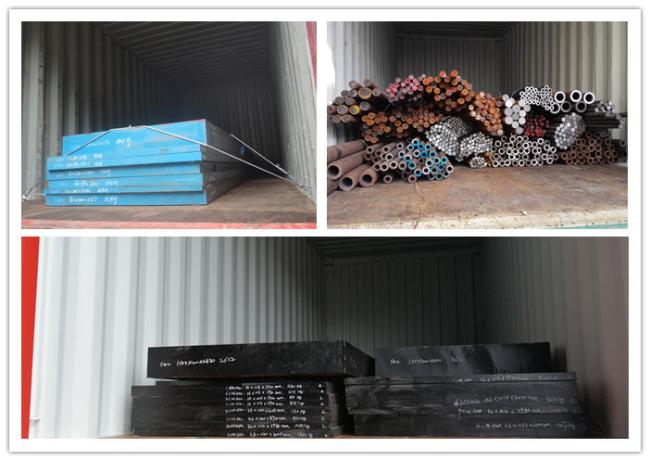

Loading Photo
