Reliable Tri Axle Dump Truck , 30 CBM Semi Dump Trailers 20 Ton 30 Ton 40 Ton 50 Ton
3 Axle 50Ton Dump Truck Trailer 30CBM Dump Trailer Tipper Semi Trailer
Specifications: DUMP SEMI TRAILER, TIPPER SEMI TRAILER, REAR DUMP SEMI TRAILER, REAR TIPPER SEMI TRAILER.
| DIMENSIONS | |||||
| Tare Weight | 12500kgs | ||||
| Payload | 45000kgs | ||||
| Overall Length | 10500mm | ||||
| Overall Width | 2465mm | ||||
| Dump body size | 7000mmx2300mmx1500mm | ||||
| Photo for reference, final produce can be made according to exact requirements | |||||
| DUMPER BODY | |||||
| Volume | 25 m3 | ||||
| Side Wall | 6mm thickness | ||||
| Front Wall and floor | 8mm thickness | ||||
| Loading condition | Sand or earth | ||||
| SPECIFICATION | |||||
| Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. | ||||
| Axle | 3 axles | ||||
| BPW 13T , Fuwa 13T , L1 13 T (Bpw is German brand) | |||||
| Hydraulic System | One set of HYVA cylinder | ||||
| Suspension | German design mechanical suspension | ||||
| Leaf Spring | 13-piece leaf spring. 11x100 | ||||
| King Pin | JOST brand 2” Bolt-in King Pin | ||||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||||
| Wheel Rim | 9.00R22.5 wheel rim, 13 pieces | ||||
| Tyre | 12R22.5 tubeless tire with one spare tire, 13 pieces | ||||
| Spare Tire | One set of spare tire including a carrier | ||||
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||||
| Accessories | One standard tool box | ||||
Advantages:
1. The series vehicle use through-going beam structure, has frame structure with flat type
and goosen neck type, also has high integral strength, small weight, beautiful appearance,
safe and reliable operation.
2. the series vehicle use advanced manufacture technology , makes automatic submerged
-arc welding for vertical beam, use shot blasting treatment for intergral frame, removes
welding stress effectively.
cement trailer also called bulk cement trailer, cement bulker trailer, cement trailer, bulk cement
semi trailer,cement truck powder semi trailer and bulk cement tank semi trailer.
Our Service:
1. we can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2. free consultation forever. When you meet small problems, professional advices can help you to solve them soon.
3. One year free cost warranty.
4. Spare parts forever. When you need spare parts, we can send them to you immediately.
Tipper dumping Cargo Semi Trailer Detail Photos

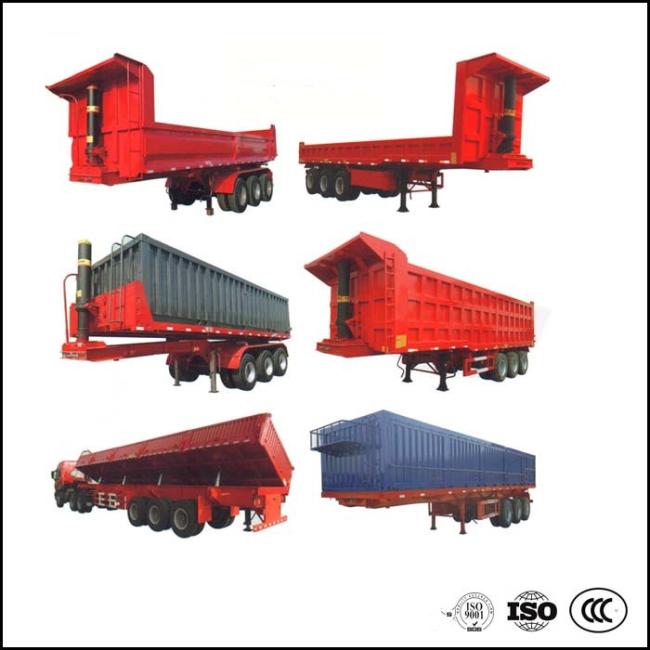

We have Mallery Type Rear dumping, front tipping rea dumping, side dumping mechanism for your choice:
