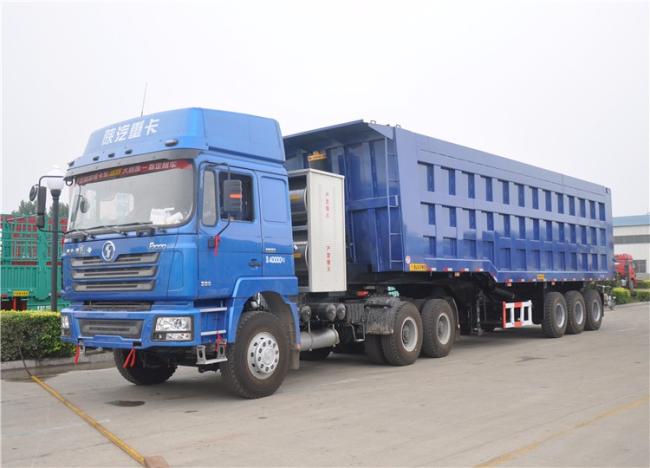

3 Axle Dump Truck Trailer 20 Ton 30 Ton 40 ton 50 Ton For Construction Material
3 Axle Dump Truck Trailer 50Ton Tipper Truck Semi Trailer Dump Semi Trailer
Axle:
Famous Brand Axle Support
Trailer Durable and High Truck Attendance Rate
Material:
China Best Q345B-T700 support Stronger Trailer Skeleton
Parts:
Good Quality Tire support Trailer Running Safety&Smoothly

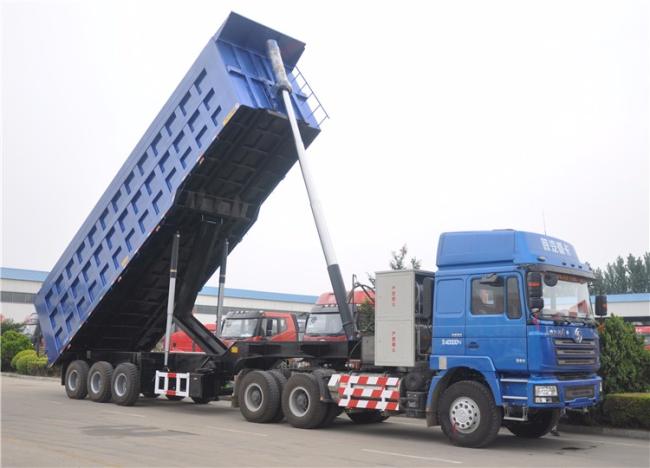

Hydraulic System:
HYVA Hydraulic System from Holland,Support you Smooth Lifting and Stable Power.With Long Time Using,Saving Cost and Time.
Specifications: DUMP SEMI TRAILER, TIPPER SEMI TRAILER, REAR DUMP SEMI TRAILER, REAR TIPPER SEMI TRAILER
| DIMENSIONS | |||||
| Tare Weight | 12500kgs | ||||
| Payload | 45000kgs | ||||
| Overall Length | 10500mm | ||||
| Overall Width | 2465mm | ||||
| Dump body size | 7000mmx2300mmx1500mm | ||||
| Photo for reference, final produce can be made according to exact requirements | |||||
| DUMPER BODY | |||||
| Volume | 25 m3 | ||||
| Side Wall | 6mm thickness | ||||
| Front Wall and floor | 8mm thickness | ||||
| Loading condition | Sand or earth | ||||
| SPECIFICATION | |||||
| Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. | ||||
| Axle | 3 axles | ||||
| BPW 13T , Fuwa 13T , L1 13 T (Bpw is German brand) | |||||
| Hydraulic System | One set of HYVA cylinder | ||||
| Suspension | German design mechanical suspension | ||||
| Leaf Spring | 13-piece leaf spring. 11x100 | ||||
| King Pin | JOST brand 2” Bolt-in King Pin | ||||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||||
| Wheel Rim | 9.00R22.5 wheel rim, 13 pieces | ||||
| Tyre | 12R22.5 tubeless tire with one spare tire, 13 pieces | ||||
| Spare Tire | One set of spare tire including a carrier | ||||
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||||
| Accessories | One standard tool box | ||||
Design Drawing:
A Drawing will Send to Clients Confirm Suitable Design for Varied Trucks and Purpose.Try to Provide Most Suitable Trailers.
Blank Progress:
Beams and Accessories are Processed with Scale Numerical Control Plasma Cutting Machine,Brings High Precision,Ensure Geometric Accuracy.
Rolling-Over Welding: Panda Mechanical Holds the Leading Welding Quality,Rolling-Over Welding Provide Every Point Quality Welding.
Shot Blasting:
Trailer Body and Ports are Pre-treated with Shot Blasting in Order to Remove Rust and Eliminate Oil,Improve Surface Intensity and Painting Adhesion
Painting:
Once Primer with Twice Finish Painting Provide Good Anti-rust Capability
Test:
Trailer Performance test before delivery
More Pictures Show:
