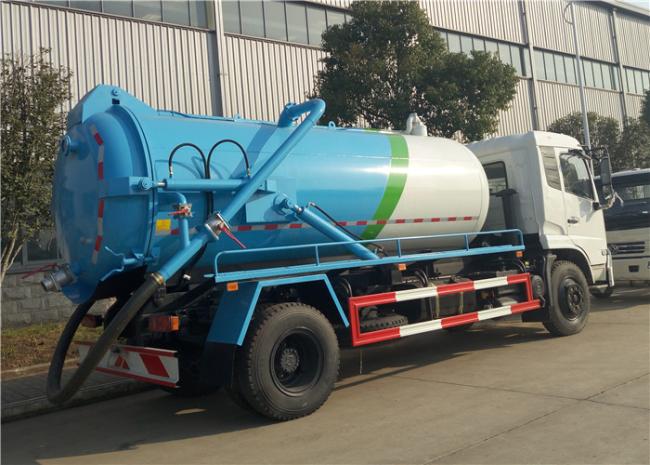

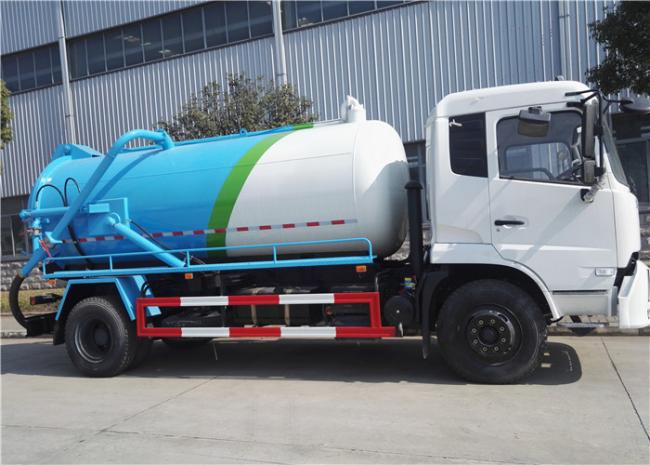

Vacuum Sewage Tanker Truck , Dongfeng 4x2 6 Wheels Fecal Suction Truck 6000L
Dongfeng 4x2 6 wheels 6M3 Vacuum Sewage Tank Truck 6000L Sewage Suction Truck, ISUZU 4x2 6000L / 6m3 / 6cbm Vacuum Sewage / fecal Suction Truck, fecal suction truck.
A sewage suction truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of sewage suction trucks with capacities ranging from 2cbm to 18cbm.
Our factory could produce different brand like Sinotruk HOWO, FOTON, DONGFENG, FAW etc with different sizes ranged from 3000Liters to 16000Liters as well as big size sewage suction trailers.
| The Parameters of Dongfeng 6 m3 Sewage/fecal Suction Truck | |
| Overview | |
| Name | Sewage Suction Truck/fecal suction truck |
| Dimension(LxWxH) | 6990X2500X3380(mm) |
| Total Mass | 16050Kg |
| Rated Payload | 8000Kg |
| Kerb Weight | 8050Kg |
| Passenger | 3 |
| Approach/Departure Angle | 19/15 |
| The Parameters of Chassis | |
| Manufacture/Model | Dongfeng |
| Driving Type | 4*2 left/right hand drive |
| Wheel Base | 5500 mm |
| Gearbox | Six speed lever with five speed forward and one reverse, manual |
| Front/Rear Track | 1506/1466(mm) |
| Tyre | 7.00-16 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/ Rear Suspension | 1032/1658(mm) |
| Leaf Spring Number | 8/9+5, 6/8+4 |
| The Paremeters of Engine | |
| Manufacturer/Model | Dongfeng/Cummins Engine |
| Rated Power | 190hp/139kw |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 5193mL |
| Emission Standard | Euro3 |
| Cylinder | 510N.m |
| Velocity | 2600rpm |
| The Parameters of Equipment | |
| Tank Capacity | 6 m3 |
| Vacuum Pump Rotation Speed | 800r/m-1400r/m |
| Max. Suction Lift | >6m |
| Vacuum | >500mmHg |
| Rotation Direction | Clockwise |
| Time for full sucktion | <5min |
| Common Accessories | Vacuum pump, ball valve, oil cylinder for rear cap, oil cylinder for dumping, pressure meter, window for showing liquid level,lock system for rear cap, four-way valve, moisture separator,sprinkler (optional), alarm for full suction (optional),etc. |

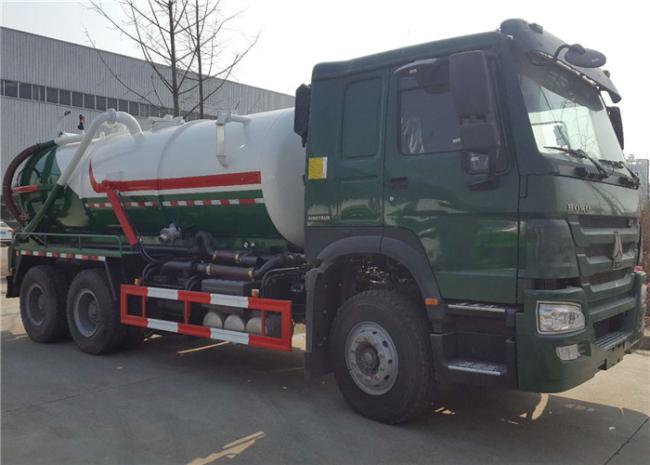

HOWO 6x4 12000Liters sewage suction truck exported to Vietnam
