Galvanized Steel Cable Skip Type Stranding Machine With 1000RPM
Galvanized Steel Cable Skip Type Stranding Machine With 1000RPM
1. Application
Bow type structure, totally 7 support boxes support 6 pairs of stranding bows on each pair end. The bow material is carbon fiber,which is durable. The machine is equipped with wire-break test device for each payoff unit in each bow. When wire is broken, and payoff bobbin will decrease the rotating speed, then the detector will get the data, then the machine will stop automatically. This will detect the 99% wire broken.
2. Main technical parameters
| Name | Unit | Data |
| Single wire diameter | mm | Copper wire Φ1.5-Φ5.0 Aluminum wire Φ1.8-Φ5.0 Steel wire Φ1.8-Φ4.0 |
| The maximum strand diameter | mm | Φ16 |
| Max rotation speed of the bow | rpm | 1000 |
| Stranding pitch | mm | 31.1-235 mm ( 36 stage ) |
| Diameter of draught wheels | mm | Φ1200×Φ1200 |
| Main motor power( AC variable frequency speed regulation ) | kw | 37 |
| The specifications of the bobbin | / | d1: 630 mm L1: 475 mm d4: 127 mm |
| Take-up bobbin | / | PN 630 - PN 1600 |
3. Photos
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

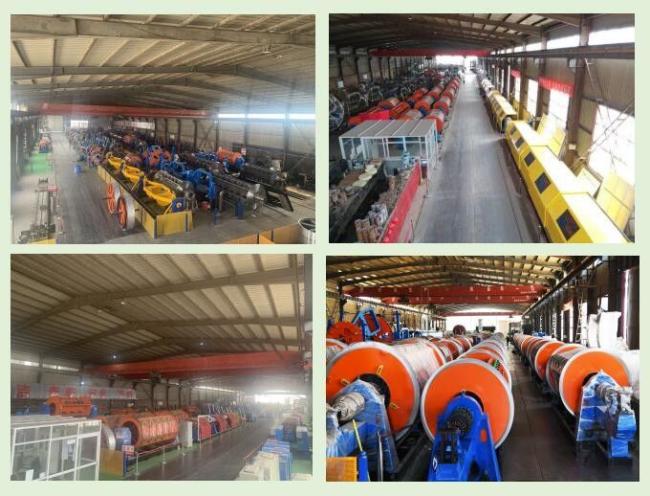

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
