Beauty & Personal Care Body Art Tattoo Tip
China PA130 Ul Finger Probe Stainless Steel Tip For Uninsulated Live Part for sale

PA130 Ul Finger Probe Stainless Steel Tip For Uninsulated Live Part

Price Negotiable
Price: USD450-600/set
MOQ: 1set
Delivery Time: 15 working days
Brand: PEGO
Product Description

PA130 UL Accessibility Test Probe for Uninsulated Live Part Conforms to UL507



Introduction

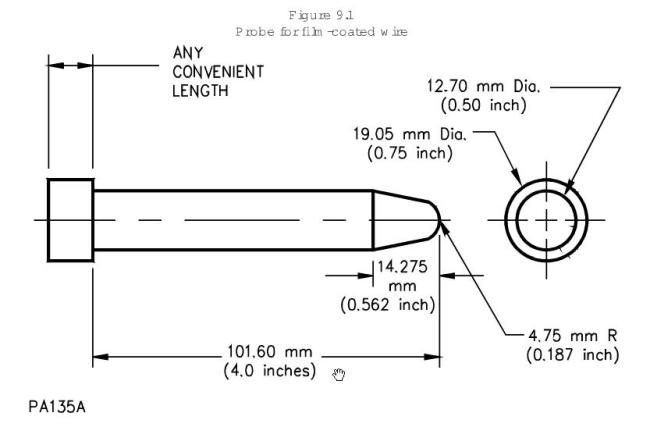

UL accessiliby test probe for uninsulated live part is designed according to UL507 figure 9.1 (PA135A) and UL1278 figure 8.1 (PA130A). The handle is made by nylon and tip is made by stainless steel.



Specification

Rigid finger length 101.6mm (4 inch)
Rigid finger diameter Φ12.7mm (1/2 inch)
Head length 14.3mm (9/16 inch)
Head radius R4.8mm (3/16 inch)
Tail diameter 191.mm (3/4 inch)
