Concentrated Apple Filling Aseptic Bags High Barrier Bag In Box Packaging For Apple Juice
Concentrated Apple Filling Aseptic Bags High Barrier Bag In Box Packaging For Apple Juice
Aseptic Bag

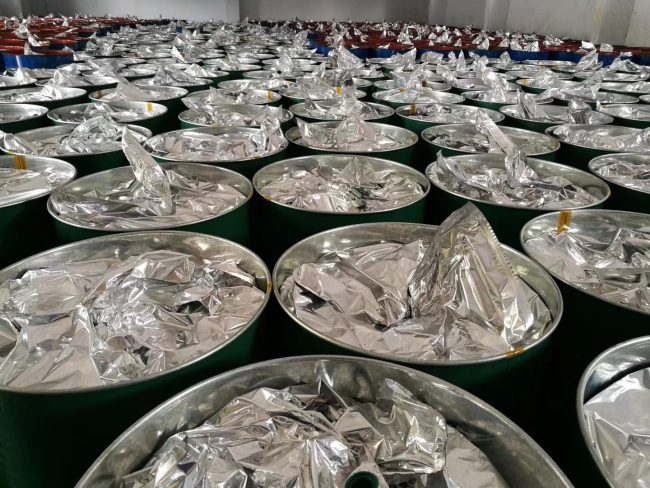

Aseptic bag is commonly made from five-layer aluminizing materials, presents on excellent barrier property, and can keep catsup and fruit juice products in good quality for two years at constant temperature. Specifications from 2L to 220L are all available. The materials of bag can use transparent PE film and highest barrier aluminum foil for option as your requirements.
Technical Data:
| YGT TECHNICAL DATA SHEET | ||||||||||
| : | ||||||||||
| Width | W= | 940 | 910 | ± 10 mm | ||||||
| Length | L= | 1560 | 1530 | ± 10 mm | Tensile Strength(MPa) | |||||
| Spout location | Sp= | 120 | 110 | ± 5 mm | MD | 61.6 | ||||
| TD | 64.9 | |||||||||
| Elongation % at breakage | ||||||||||
| MD | 135 | |||||||||
| TD | 135 | |||||||||
|
||||||||||
| MD | 10.8 | |||||||||
| TD | 14.9 | |||||||||
| Bag Construction: | Upper side | Lower side | ||||||||
| thickness(μm) | thickness(μm) | Seal Strength(N/15mm) | 65.5 | |||||||
| PE | 45 | 45 | ||||||||
| outer Cover: | VMPET | 12 | 12 | Oxygen Permeability | cm3/m2 | 0.44 | ||||
| PE | 47 | 47 | (24h.0.1MPa23℃70RH) | |||||||
| Fitment: | ||||||||||
| material: | color | size:mm | ||||||||
| Gland: | PE | white | 36.8 | |||||||
| Inner lining: | PE | 50 | 50 | Cap: | PP | green | 30.9 | |||
| PE | 50 | 50 | Sterilization(γ-ray) 16KGY | |||||||
| Package: | ||||||||||
| Carton dimension(mm) | 530*400*370 | Pallet(mm) | 1100*1100*100 | |||||||
| Total Thickness: | 204 μm | ± 5 μm | Bag weight(g) | 609.00 | Bag/carton 30 | |||||
| Total Grammage: | 609 g | ± 10 g | Carton weight(kg) | 20.00 | carton/pallet 480 | |||||
It is provided with a PE lining bag in cartonning, and packed in firm corrugated case convenient for long-distance transport. This product is one of hot products for market appliation.
