CLT Series Downhole Fishing Tools Overshot Fishing Sucker Rod High Precision
Price:
Negotiable
MOQ:
1pc
Delivery Time:
3~20 days
Brand:
TIPTOP
Product Description

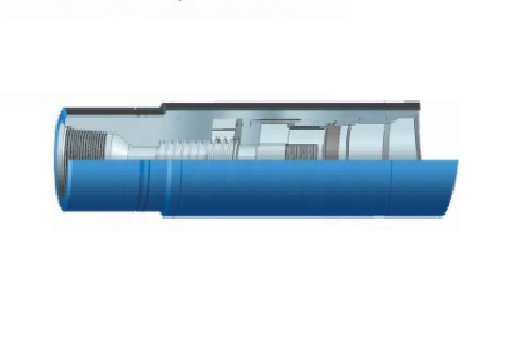

Downhole fishing tools - CLT series sucker rod overshot for fishing sucker rod
Introduction:
sucker rod overshot is a fishing tool specially used for fishing sucker rod main bodies. the sucker rod can be fished in both the oil pipe and a casing.it can fish the sucker rods with different specification as long as the slips or guiding shoes are replaced.
Product spcifications and basic parameters:
| No. | Specification | Joint thread type | Overall dimension | Catch size (sucker rod) | Applied borehole |
| 1 | CLT-A | 22 Sucker rod thread | Φ55*350 | 16-25 | 73 oil pipe |
| 2 | CLT-B | 22 Sucker rod thread | Φ94*650 | 16-25 | 114 casing |
| 3 | CLT-C | 22 Sucker rod thread | Φ115*650 | 16-25 | 140 casing |
| 4 | CLT-A (Round slips) | 22 Sucker rod thread | Φ59*420 | 16-25 | 73 oil pipe |
| 5 | CLT-A | NC31LH | Φ116*620 | 16-25 | 140 casing |
| 6 | CLT-A | NC31LH | Φ152*680 | 16-25 | 178 casing |
