10/100/1000Base-T RJ45 Copper SFP module Electrical SFP transceiver for cisco/Huawei/juniper/Nokia Compatible
Price:
Negotiable
MOQ:
2pcs
Delivery Time:
1-2days
Brand:
UTOPTEK
Product Description
SFP-GE-T
10/100/1000 BASE-T Copper SFP Transceiver
| Brand | UTOPTEK, OEM |
| Condition | 100% New |
| Form Factor | SFP |
| UTP cable | Cat5,Cat6 |
| Distance | 100M |
| Data Rate (max) | 10/100/1000Mbps |
| Working Temperature (°C) | 0°C~70°C |
| Storage Temperature (°C) | -40°C~+85°C |
| Relative Humidity | 0~85% |
| Voltage Supply | 3.3--5v |
| Connector | RJ-45 |
| Warranty1 | years |
| Compatible with | Cisco, Huawei, HP etc. |
| Time of delivery | 1-2 working days |
| Package | 10 pcs/box |
Description:
SFP-GE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE Std 802.3 . The SFP-GE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, IC be reset.
Features:
- Up to 1.25 Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- Low power dissipation(1.05W typical)
- Compact RJ-45 connector assembly
- Fully metal enclosure, for lower EMI
- RoHS compliant and lead-free
- Single +3.3V power supply
- 10/100/1000 BASE-T operation in host systems with 1000BASE-X interface
- 1.25 Gigabit Ethernet over Cat 5 cable
- Ambient Operating temperature: 0°C to +70°C
Applications:
- 10/100/1000Mbps Ethernet over Cat 5 cable
- Switch/Router to Switch/Router Link
- High speed I/O for file severs
Factory Show:

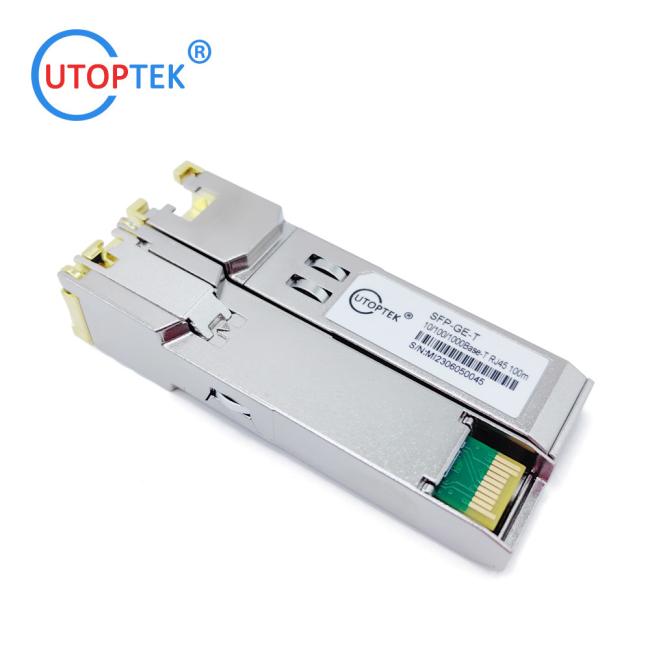

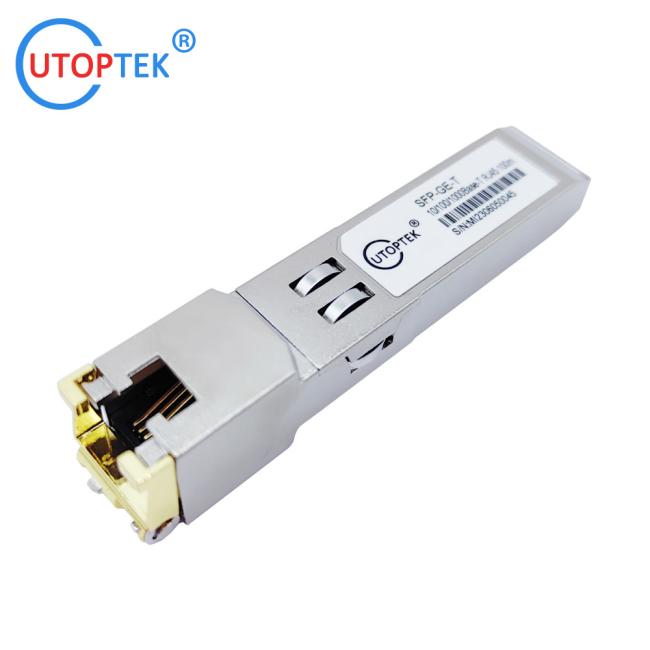

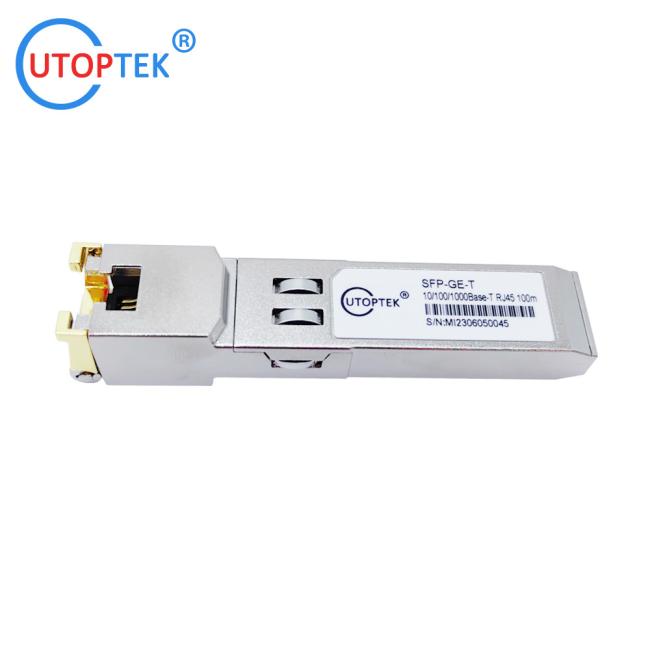

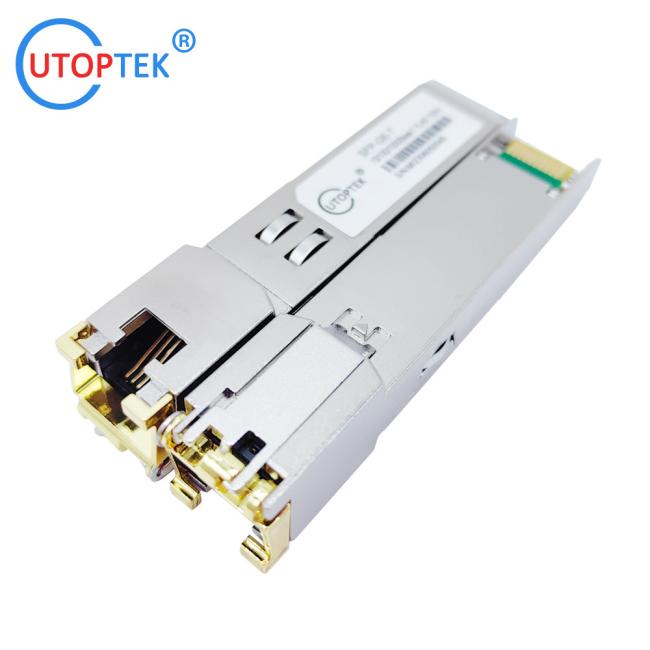

Products Picture:
Mechanical Dimensions:
Ordering Information:
| RJ45 SFP Transceiver | ||||||||
| Part No. | Data Rate | Form Factor | Distance | Wavelength | Transmitter | Receiver | Interface | Temp. |
| SFP-FE-T | 100Mbps | SFP | 100m | / | / | / | RJ45 | 0-70℃ |
| SFP-GE-T | 1000Mbps | SFP | 100m | / | / | / | RJ45 | 0-70℃ |
| SFP-2.5G-T | 2.5Gbps | SFP | 100m | / | / | / | RJ45 | 0-70℃ |
| SFP-5G-T | 5Gbps | SFP | 100m | / | / | / | RJ45 | 0-70℃ |
| SFP-10G-T | 10Gbps | SFP | 80m | / | / | / | RJ45 | 0-70℃ |
| SFP-10G-T | 10Gbps | SFP | 30m | / | / | / | RJ45 | 0-70℃ |
