compressed HDMI Video+Audio+USB KVM over fiber optical extender HDMI fiber optical media converter
Price:
Negotiable
MOQ:
2pcs
Delivery Time:
1-2 days
Brand:
UTOPTEK
Product Description
1Channel 1080P HDMI Video+Audio+USB KVM over fiber optical extender Single Fiber 20km HDMI video to fiber converter
Overview:
The Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
- Transmits HDMI video signals up to 20km over one fiber optic cable;
- Support video resolution up to 1920*1080P@60Hz;
- Support keyboard and mouse signal transmission;
- Support external stereo audio unidirectional transmission;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play.
Technical sheet:
| Parameter | Description | |
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution | 1920*1080@60Hz 1920*1080@30Hz | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| Audio | Interface | 3.5mm earphone seat |
| Signal type | Stereo | |
| K/M | Interface | To PC: MINI-USB To keyboard and mouse: USB-A |
| Optical fiber | Interface | SC connector |
| Fiber type | Single-mode single fiber | |
| Wavelength | Single-mode 1310nm | |
| Interface bandwidth | 155M | |
| Transmission distance | standard 20km | |
| Other | Power supply | The power adapter: DC 5V/1A |
| Power dissipation | MAX 6W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 115*108*27mm | |
| The warranty | 1 year free warranty, life-long maintenance | |

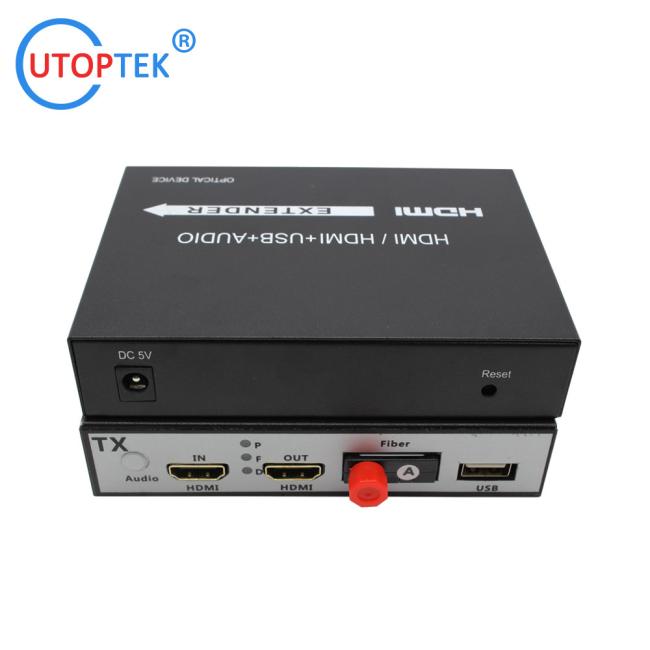

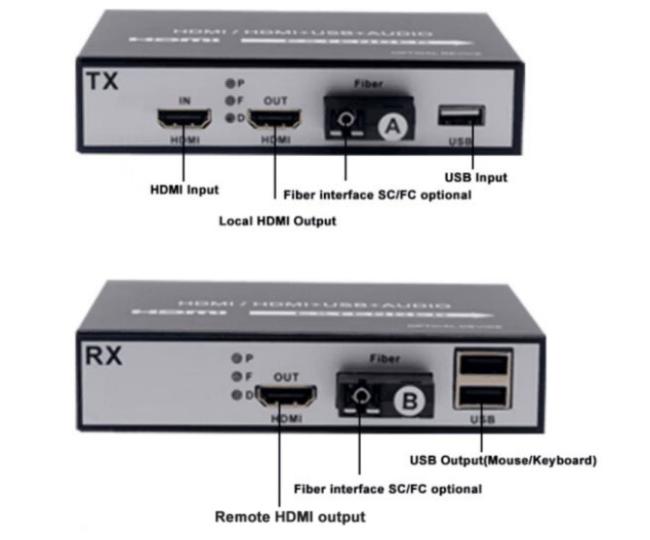

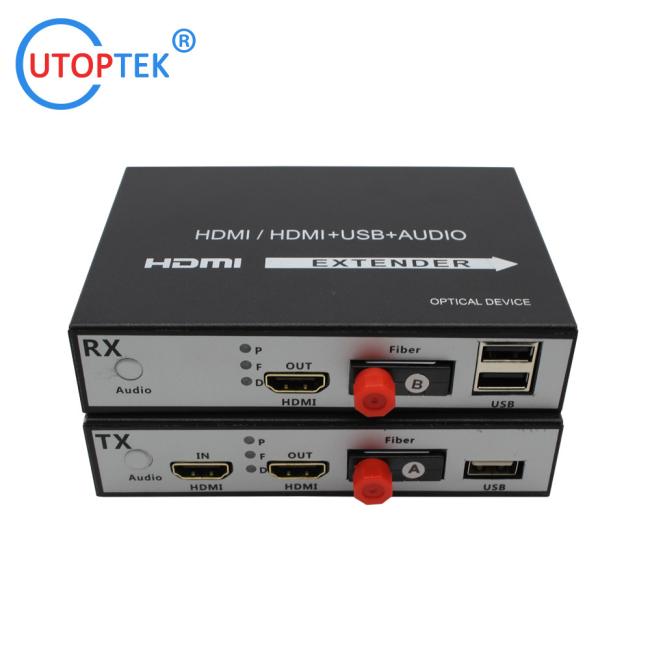

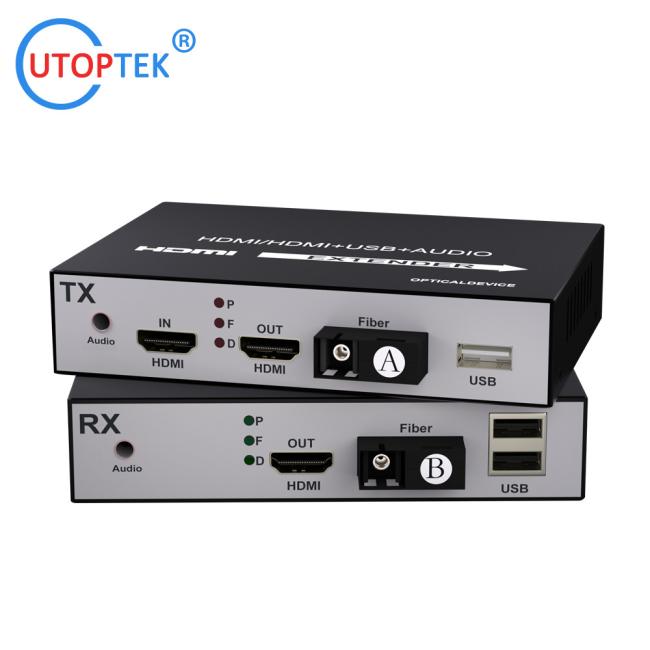

Products show:

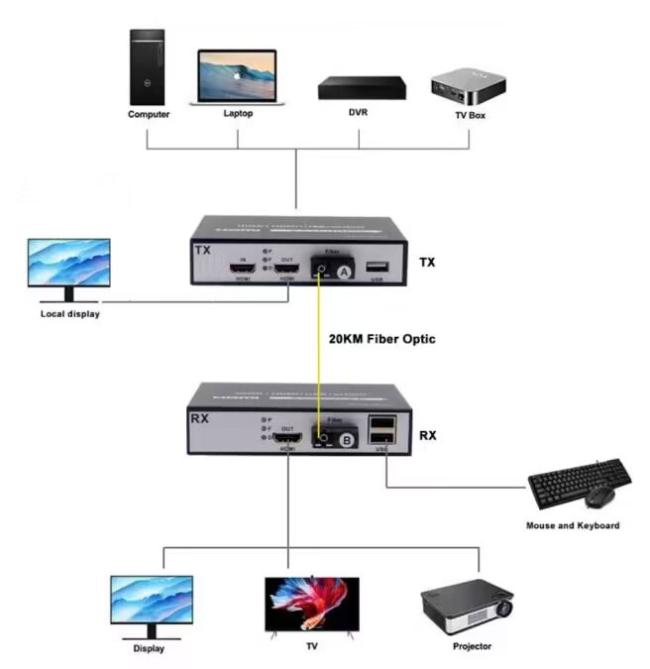

Connection topology:
Order Models:
| UT-1H1F-T/R-F20 | Mini Compressed full HD HDMI over fiber Optical Extender, SM single FC 20km, with DC5V power supply |
| UT-1H1U1A-T/R-S20 | 1Ch HDMI Video+Audio+1USB over fiber extender, HDMI video:Compressed Full HD 1080P, Fiber:Single Mode Single Fiber SC 20km,with US type power supply. |
| UT-1H1U-T/R-S20 | 1Ch HDMI Video+USB over fiber extender, HDMI video:Compressed Full HD 1080P, Fiber:Single Mode Single Fiber SC 20km,with US type power supply. |
| UT-1H1L-TX/RX | HDMI over LAN Extender 1080P@60Hz HDMI over LAN (Cat5e Cat6) Extender 60meters, with power supply DC5V/1A |
