Mexican Brass And Copper Clamping Units For Temperature Rise Test IEC 60884-1 Figure 44
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
30 days
Brand:
Sinuo
Product Description

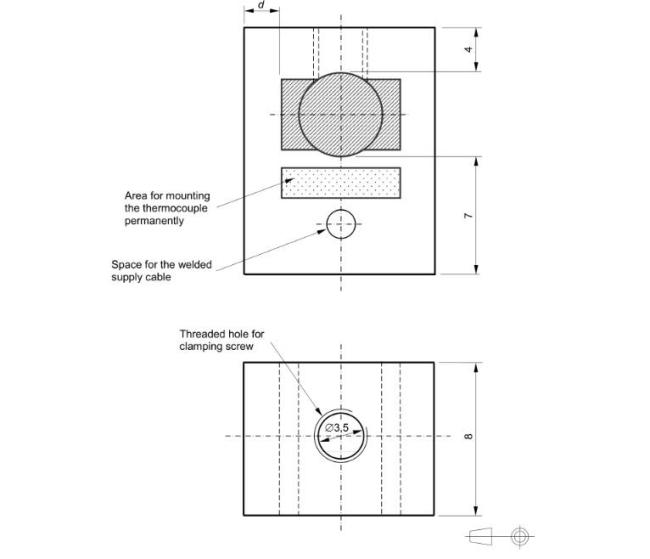

IEC 60884-1 Clause 19 Figure 44 Clamping Units for Temperature Rise Test
Product information:
The temperature rise plugs confirm to requirements of IEC60884 standard 19 Chapter Figure 44.
Material: brass with at least 52 % of copper.
Tolenrance: ±0,2mm unless other wise stated.
REMARKS:
-The dimension(s) for the shaded area is (are) the maximum plug pin dimension (s) +0,8 mm.
-1,5≤d≤3.
-The thermocouple should be placed within the shaded area but not directly under the clamping screw.
Usage:
Please refer to relative standard requirements.

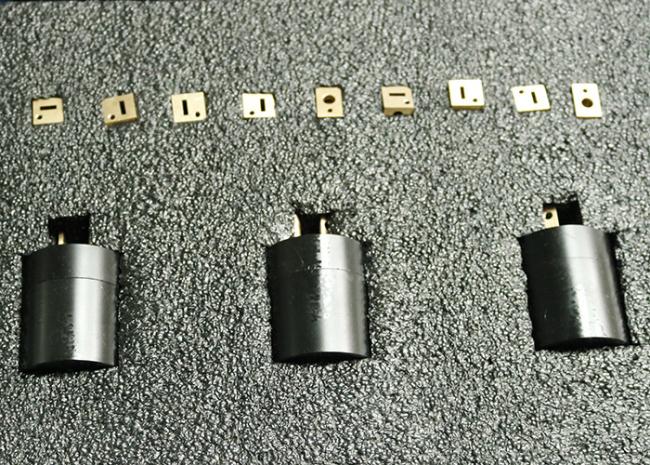

Test Plugs and Clamping Units
