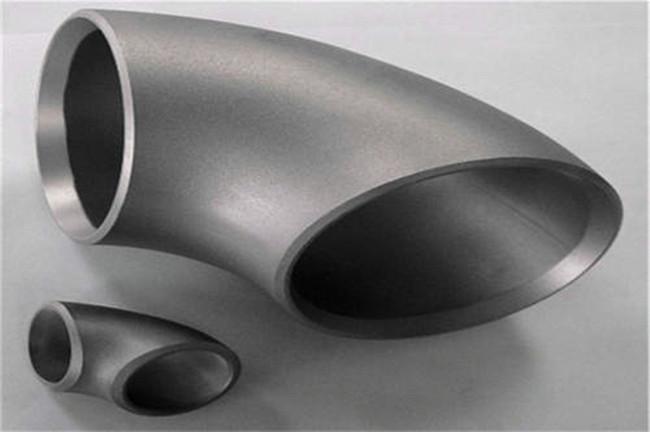

90 Degree Seamless Elbow Industrial Steel Pipe Fittings
Industrial Steel Pipe Fittings Seamless elbow
Description
Seamless elbow has a variety of materials and wide applications. It is forming a large-scale high-tech industrial group, which has a very broad market prospect and extremely important strategic significance.
Seamless elbow materials are a large class of new materials with special electrical, acoustic, thermal, mechanical, chemical and biological functions. At the same time, they also play an important role in the transformation of some traditional industries, such as agriculture, chemical industry, building materials, etc., and to some extent affect the development of other industries.
Technical data sheet
Industrial Steel Pipe Fittings Seamless elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow | ||
| A series | B series | Long radius | Short radius | |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
| 150 | 1683 | 159 | 229 | 152 |
| 200 | 219.1 | 219 | 305 | 203 |
| 250 | 273 | 273 | 381 | 254 |
Specification
Standard:GB / ANSI /JIS / DIN
Size:1/8' ~ 6'
Application:oil,gas and so on
Characteristic
Seamless elbow performance is very good, basically no corrosion and wear. Its corrosion resistance is very good, can extend the service life of seamless elbow, reduce maintenance costs, improve work efficiency.
Forming method of seamless elbow
There are several ways to reduce the outer diameter of the tube, i.e. one of the ways to reduce the outer diameter of the pipe is to use one of the pressing roller and the other is to reduce the outer diameter of the pipe.
2. Rolling method: this method does not use mandrel, it is very suitable for use on the inner side of thick wall. The process of elbow made with it is very good.
3. Stamping method: use some cores on the punch to expand the pipe end. Pay attention to the taper of the core, so as to achieve the required size and shape.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 35 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
