3/4" Hot Push SS Elbow Industrial Steel Pipe Fittings

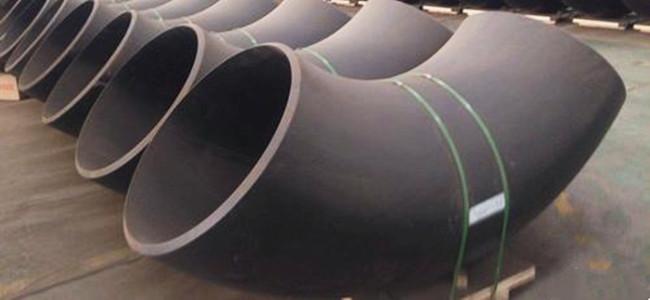

Industrial Steel Pipe Fittings Stainless steel hot push elbow
Description
Stainless steel hot push elbow is sanitary and nontoxic. The material is completely composed of carbon and hydrogen, without adding any toxic heavy metal salt stabilizer. The hygienic performance of the material has passed the national authority testing. Light weight, elbow density of 0.89-0.91g/cm, only one tenth of the steel pipe.
Stainless steel hot push elbow, Because of its light weight, it can greatly reduce the transportation cost and the construction intensity of installation. Good heat resistance, when the working water temperature is 70 ℃, the softening temperature is 140 ℃. Good corrosion resistance, in addition to a few hydrogenating agents, it can resist the corrosion of a variety of chemical media, with excellent acid resistance, alkali resistance, corrosion resistance, no rust, no corrosion, no bacteria, no electrochemical corrosion.
Technical data sheet
Industrial Steel Pipe Fittings Stainless steel hot push elbow technical data sheet as below:
| DN | Outside diameter | Center to end dimensions | |
| A Series | B Series | Long radius | |
| 15 | 21.3 | 18 | 16 |
| 20 | 26.9 | 25 | 16 |
| 25 | 33.7 | 32 | 16 |
| 32 | 42.4 | 3S | 20 |
| 40 | 48.3 | 45 | 24 |
| 50 | 60.3 | 57 | 32 |
| 65 | 76.1(73) | 76 | 40 |
| 80 | 88.9 | 89 | 47 |
| 100 | 114.3 | 108 | 63 |
| 125 | 139.7 | 133 | 79 |
| 150 | 1683 | 159 | 95 |
| 200 | 219.1 | 219 | 126 |
| 250 | 273 | 273 | 158 |
| 300 | 323.9 | 325 | 189 |
| 350 | 355.6 | 377 | 221 |
| 400 | 406.4 | 426 | 253 |
| 450 | 457 | 478 | 284 |
| 500 | 508 | 529 | 316 |
| 550 | 559 | - | 343 |
| 600 | 610 | 630 | 381 |
| 650 | 660 | - | 405 |
| 700 | 711 | 720 | 438 |
Specification
Standard:GB/T10002.2-2003
Size:3/4'',1/8' ~ 6'
Application:oil,gas and so on
Characteristic
Stainless steel hot push elbow has the advantages of simple process and high productivity, which can meet the requirements of mass production. This process can avoid the phenomenon of uneven wall thickness caused by tension thinning of convex edge and compression thickening of concave edge in traditional bending process. Using this process, large radius, thick wall t / D ≥ 0.015, elbow with uniform wall thickness can be produced, where t is the thickness and D is the diameter of tube blank, which can not be achieved by other bending processes. Due to the axial pressure state in the process of push bending, the metal structure is compact, so the mechanical properties of the elbow are good. Some pipe materials require hot bending, so as to obtain good mechanical properties.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
