ANSI Welding Reducing Tee Industrial Steel Pipe Fittings
Industrial Steel Pipe Fittings Reducing tee
Description

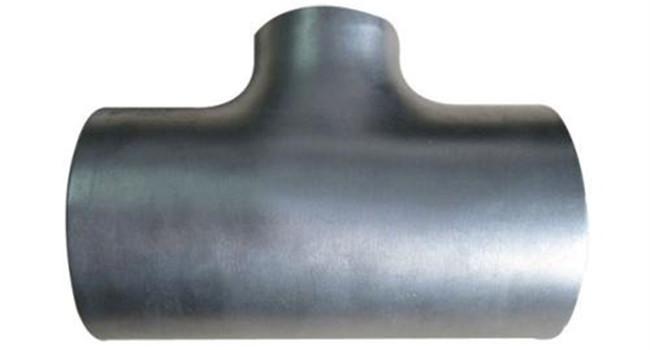

Reducing tee is a tee with different diameter between branch pipe and other two ends. The same diameter at both ends is called equal diameter tee. It is widely used in the construction and maintenance of petrochemical, petroleum and natural gas, liquefied gas, chemical fertilizer, power plant, nuclear power, shipbuilding, papermaking, pharmaceutical, food hygiene, urban construction and other industries.
The representation of reducing tee is as follows: "T4 × 4 × 3.5" refers to the reducing tee with the same diameter of four inches and the diameter of 3.5 inches. The material is generally 10 × 20 × A3 Q235A 20g 20g 20g 16Mn ASTM a234 ASTM A105 astma403, etc. the outer diameter range of tee is 2.5 "- 60", and 26 "- 60" is welded tee. The wall thickness is 28-60mm.
Technical data sheet
Industrial Steel Pipe Fittings Seamless elbow technical data sheet as below:
| Nominal Diameter | Outside Diameter | ||||
| D1 | D2 | ||||
| DN | NPS | Series A | Series B | Series A | Series B |
| 15x15x15 | 1/2x1/2x1/2 | 21.3 | 18 | 21.3 | 18 |
| 15x15x10 | 1/2x1/2x3/8 | 21.3 | 18 | 17.3 | 14 |
| 15x15x8 | 1/2x1/2x1/4 | 21.3 | 18 | 13.7 | 10 |
| 20x20x20 | 3/4x3/4x3/4 | 26.9 | 25 | 26.9 | 25 |
| 20x20x15 | 3/4x3/4x1/2 | 26.9 | 25 | 21.3 | 18 |
| 20x20x10 | 3/4x3/4x3/8 | 26.9 | 25 | 17.3 | 14 |
| 25x25x25 | 1x1x1 | 33.7 | 32 | 33.7 | 32 |
| 25x25x20 | 1x1x3/4 | 33.7 | 32 | 26.9 | 25 |
| 25x25x15 | 1x1x1/2 | 33.7 | 32 | 21.3 | 18 |
| 32x32x32 | 1.1/4x1.1/4x1.1/4 | 42.4 | 38 | 42.4 | 38 |
| 32x32x25 | 1.1/4x1.1/4x1 | 42.4 | 38 | 33.7 | 32 |
| 32x32x20 | 1.1/4x1.1/4x3/4 | 42.4 | 38 | 26.9 | 25 |
| 32x32x15 | 1.1/4x1.1/4x1/2 | 42.4 | 38 | 21.3 | 18 |
| 40x40x40 | 1.1/2x1.1/2x1.1/2 | 48.3 | 45 | 48.3 | 45 |
| 40x40x32 | 1.1/2x1.1/2x1.1/4 | 48.3 | 45 | 42.4 | 38 |
| 40x40x25 | 1.1/2x1.1/2x1 | 48.3 | 45 | 33.7 | 32 |
| 40x40x20 | 1.1/2x1.1/2x3/4 | 48.3 | 45 | 26.9 | 25 |
| 40x40x15 | 1.1/2x1.1/2x1/2 | 48.3 | 45 | 21.3 | 18 |
characteristic
1. Reducing tee is sanitary and non-toxic: This product is a green building material, which can be used in purified water and drinking water pipeline system.
2. Corrosion resistance and no scaling: it can avoid pipeline corrosion and avoid blockage caused by pipeline corrosion and scaling.
3. High temperature and high pressure: the water temperature of pipeline transportation is as high as 95 ℃.
4. Heat preservation and energy saving: the thermal conductivity is one hundredth of the metal pipe, and the effect of heat preservation and energy saving is excellent.
5. Light weight: the specific gravity is only one seventh of the metal tube.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 45 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
