Pipeline Engineering 1/2' Buttweld Carbon Steel Flanges
Carbon steel buttweld fittings Carbon steel flange
Description

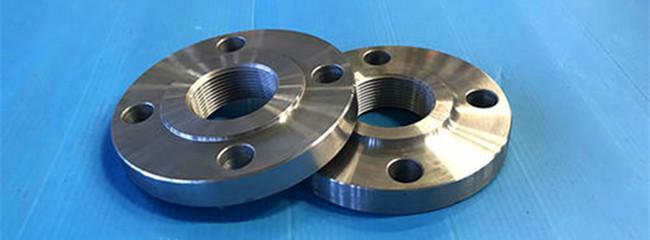

Carbon steel flange refers to the flange or end flange connector made of carbon steel. The flange made of carbon steel is called carbon steel flange. Common materials are cast carbon steel grade WCB, forging A105, or Q235B, A3, 10 #, #, 20 steel, 16 manganese, 45 steel, Q345B, etc. In order to prevent rust, the flange surface is usually electroplated (yellow zinc, white zinc, etc.), or brushed with antirust oil and sprayed with antirust paint.
Carbon steel flange is a kind of plate-shaped parts, which is the most common in pipeline engineering. The flanges are used in pairs and with the matching flange on the valve. In pipeline engineering, flange is mainly used for pipeline connection. In the need to connect the pipeline, all kinds of installation of a flange, low-pressure pipeline can use thread flange, 4 kg pressure above the use of welding flange. Add a gasket between the two flange plates, and then fasten them with bolts. Flanges with different pressures have different thicknesses and use different bolts.
Technical data sheet
Carbon steel buttweld fittings Carbon steel flange technical data sheet as below:
| Norminal Pipe Size | Outside diameter | Center to End | |||
| D1 | D2 | End to End | |||
| Series A | Series B | Serios A | Series B | L | |
| 15 | 21.3 | 18 | 25 | - | - |
| 20 | 26.9 | 25 | 25 | - | - |
| 25 | 33.7 | 32 | 38 | - | - |
| 32 | 42.4 | 38 | 38 | - | - |
| 40 | 48.3 | 45 | 38 | - | - |
| 50 | 60.3 | 57 | 38 | 44 | 5.5 |
Specification
Standard:GB / ANSI /JIS / DIN
Size:1/2' ~ 6'
Packing:poly bag, Pallets
Characteristic
The carbon steel flange should be cut into strips along the rolling direction of the steel, bent and butt welded into a ring, and the surface of the steel forms a cylindrical surface of the ring. It is not allowed to directly machine the steel plate into flange with neck. The steel plate shall be subject to ultrasonic flaw detection without delamination defect. It is mainly used to connect the pipeline and maintain the sealing performance of the pipeline; it is convenient for the replacement of a certain section of pipeline; it is convenient for the disassembly and inspection of the pipeline; it is convenient for the sealing of a certain section of pipeline.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
