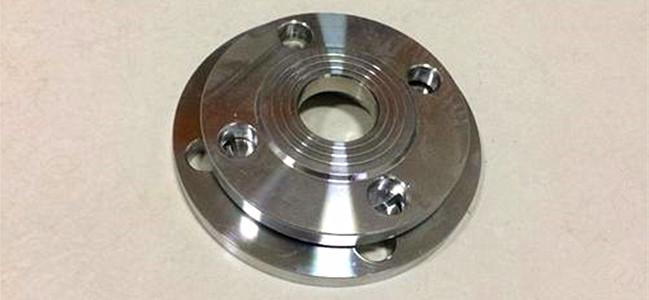

Construction DN50 1/2" Gas Pipe Stainless Steel Flanges
Stainless steel gas pipe fittings Stainless steel flange
Description
Stainless steel flange can be used in different pipelines, can play an important role in different projects, and can show certain functions and effects. Flange should first be applied in the pipeline device. Flange connection is an important connection method in pipeline construction, that is, two pipes, pipe fittings or devices are fixed on a flange plate respectively, and flange pads are added between the two flange plates, which are fastened together with bolts to complete the connection. Some pipe fittings and devices now have their own flange, which is also attributed to flange connection.
Technical data sheet
Stainless steel gas pipe fittings Stainless steel flange technical data sheet as below:
| inch | Nominal diameter | 10kg=l. 0MPa | ||||
| outer diameter | Bolt hole distance | Bolt diameter | Bolt hole number | Flange thickness | ||
| 3/8 | DN10 | 50 | 60 | 14 | 4 | 14 |
| 1/2 | DN15 | 59 | 65 | 14 | 4 | 14 |
| 3/4 | DN20 | 105 | 75 | 14 | 4 | 16 |
| 1 | DN25 | 115 | 85 | 14 | 4 | 16 |
| 1¼ | DN32 | 140 | 100 | 18 | 4 | 18 |
| 1½ | DN40 | 150 | 110 | 18 | 4 | 18 |
| 2 | DN50 | 165 | 125 | 18 | 4 | 20 |
| 2½ | DN65 | 185 | 145 | 18 | 4 | 20 |
| 3 | DN80 | 200 | 160 | 18 | 8 | 20 |
| 3½ | DN100 | 220 | 180 | 18 | 8 | 22 |
| 4 | DN125 | 250 | 210 | 18 | 8 | 22 |
Specification
Standard:GB / ANSI /JIS / DIN
Size:Seamless 1/2" To 24"
Packing:wooden case,Bags
Characteristic
Stainless steel flange. Its wear resistance is ten times higher than that of quenched medium carbon steel and better than that of tungsten carbide. Its raw material is neutral material with stable chemical function, excellent corrosion resistance and acid resistance, and resistance to various inorganic acids, organic acids, organic solvents, etc.
Stainless steel flange has the following five characteristics: 1. The sealing principle is plastic deformation. 2. It is connected by bolts. 3. Bolts should accept tension, temperature difference stress, bending moment, torque and many other external stresses. 4. Because of its huge volume and heavy weight, it is difficult to locate the device. 5. The sealing function is stable, especially in the case of severe (high temperature, high pressure, toxic medium), it is not easy to leak, and will not cause serious consequences.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
