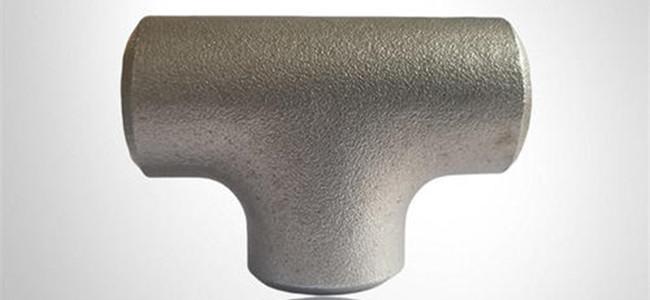

Hydraulic Bulging Seamless 1/2" SS316 Stainless Steel Tee
Stainless steel 316 pipe fittings Stainless steel tee
Description
Stainless steel tee is a kind of pipe connector. There are two common processes: hydraulic bulging and hot pressing. Three way hydraulic bulging is a kind of forming technology of expanding branch pipe through metal material axial compensation. It is suitable for different environments and places, and has been used and promoted continuously.
Stainless steel tee is suitable for all kinds of water quality, in addition to disinfection and sterilization, there is no need to control the water quality. At the same time, without corrosion and excessive exudates, it can keep the water pure and sanitary, eliminate secondary pollution, and can withstand the high water flow impact of up to 30 meters per second. In different fields and industries, it can ensure the safety and pollution-free of water quality.
Technical data sheet
Stainless steel 316 pipe fittings Stainless steel tee technical data sheet as below:
| Nominal Diameter | Outside Diameter | Center to End | |||||
| D1 | D2 | ||||||
| DN | NPS | Series A | Series B | Series A | Series B | C | M |
| 15x15x15 | 1/2x1/2x1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
| 15x15x10 | 1/2x1/2x3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
| 15x15x8 | 1/2x1/2x1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
| 20x20x20 | 3/4x3/4x3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
| 20x20x15 | 3/4x3/4x1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
| 20x20x10 | 3/4x3/4x3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 29 |
| 25x25x25 | 1x1x1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
| 25x25x20 | 1x1x3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
| 25x25x15 | 1x1x1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
| 32x32x32 | 1.1/4x1.1/4x1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
| 32x32x25 | 1.1/4x1.1/4x1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
| 32x32x20 | 1.1/4x1.1/4x3/4 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
| 32x32x15 | 1.1/4x1.1/4x1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
| 40x40x40 | 1.1/2x1.1/2x1.1/2 | 48.3 | 45 | 48.3 | 45 | 57 | 57 |
Specification
Standard:GB / ANSI /JIS / DIN
Size:Seamless 1/2" To 24"
Usage:Oil Gas Water,connection for pipes
Characteristic
Stainless steel tee has excellent mechanical and physical properties. The strength of tee is 3 times that of copper pipe and 8-10 times that of PP-R pipe. It can well withstand vibration and impact. After using, it has the characteristics of no water leakage, no burst, fire prevention, earthquake resistance and so on, so it is very safe and reliable. At the same time, it has good insulation performance, especially suitable for hot water transmission, plays an important role in connection.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 20 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
