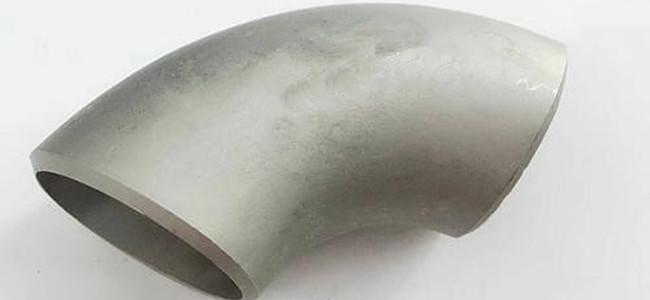

1/8" Engineering Pipeline ANSI SS304 Butt Weld Elbow
Stainless Steel Pipe Fittings 304 stainless steel elbow
Description
304 stainless steel elbow in the pipeline installation is a necessary product, is to solve the overall needs of pipeline installation. However, in the past, many elbow fittings used in engineering construction were made of plastic materials, but now many of them use 304 stainless steel elbow, or 316L stainless steel elbow has been selected for pipe installation in some strict and high-grade areas.
Technical data sheet
Stainless Steel Pipe Fittings 304 stainless steel elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow | ||
| A series | B series | Long radius | Short radius | |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
| 150 | 1683 | 159 | 229 | 152 |
| 200 | 219.1 | 219 | 305 | 203 |
| 250 | 273 | 273 | 381 | 254 |
Specification
Standard:GB / ANSI /JIS / DIN
Technics:Butt weld
Size:1/8"~2",1/2' ~ 6'
Characteristic
304 stainless steel elbow is widely used, certainly has its attractive characteristics, the hardness of stainless steel elbow is very hard, not easy to bend, not deformation, can achieve explosion-proof effect, because it can withstand 1.6-2.5mpa working pressure. At the same time, it is difficult for water hammer to destroy it. Compared with PPR, PVC elbow hardness, 304 stainless steel elbow is more dominant, and the elbow is used for a long time, the hardness must meet the use requirements.
304 stainless steel elbow has good corrosion resistance and will not rust. At the same time, it is in line with the drinking water standard. It can be said that it is very safe and there is no hidden danger. It is very reliable for the long-term pipeline. In addition, the elbow of HVAC pipe, gas pipe or other equipment pipe using such elbow is involved.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
